SWINGARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

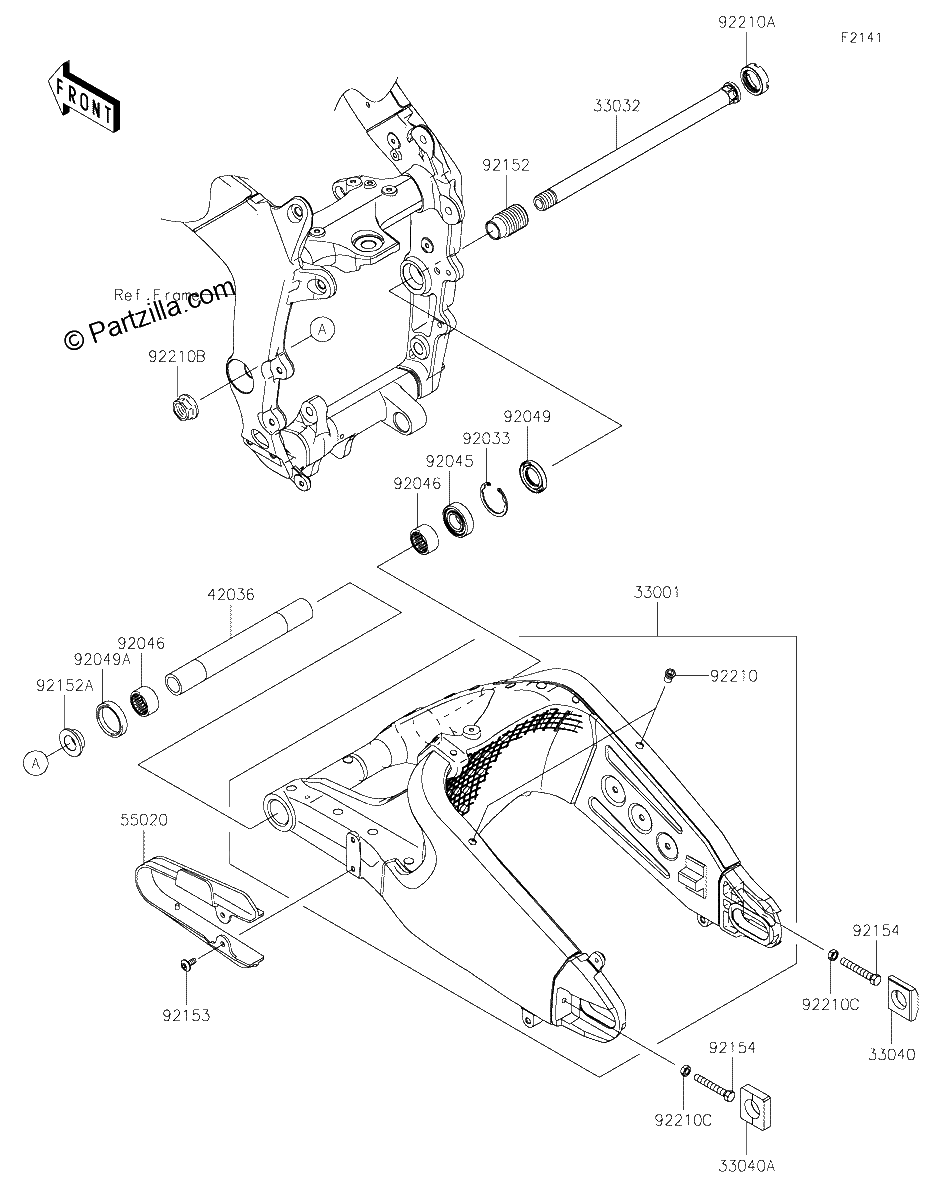

Diagrama de SWINGARM

Repuestos

#33001
33001-0584
ARM-COMP-SWING
$1278.55¢639 275
1
#33032
33032-0044
SHAFT SWING ARM
$125.30¢62 650
1
#33040
33040-0027
ADJUSTER CHAIN,Left Hand
$46.75¢23 375
1
#33040
33040-0107
ADJUSTER-CHAIN,RH
$46.75¢23 375
1
#33040B
33040-1114
ADJUSTER-CHAIN,RH
$18.94¢9 469
1
#33040A
33040-1114
ADJUSTER-CHAIN,RH
$18.94¢9 469
1
#42036
42036-0069
SLEEVE,20.1X28X226
$86.95¢43 475
1
#55020
55020-0384
GUARD,CHAIN
$34.02¢17 013
1
#92033
92033-1041
RING SNAP,42MM
$6.04¢3 019
1
#92045
92045-0017
BEARING BALL,6004UL11
$14.24¢7 119
1
#92046
92046-0008
BEARING NEEDLE,7E HVS 28X34X17
$22.69¢11 344
1
#92049A
92049-1352
SEAL-OIL,MHSA25X34X7
$9.22¢4 613
1
#92049
92049-1314
SEAL-OIL,MHSA25X42X6
$13.60¢6 800
1
#92152A
92152-1234
COLLAR,SWING ARM,L=12.5
$8.91¢4 456
1
#92152
92152-0154
COLLAR,SWING ARM,L=47
$45.00¢22 500
1
#92153
92153-0422
BOLT,SOCKET,6X14
$2.25¢1 125
1
#92154
92154-1962
BOLT SMALL,8X55
$5.59¢2 794
1
#92210B
92210-0320
NUT,FLANGED,20MM
$11.81¢5 906
1
#92210A
92210-0134
NUT,30MM
$32.90¢16 450
1
#92210
92210-0099
NUT,6MM
$5.51¢2 756
1
#92210C
92210-1459
NUT HEX SMALL,8MM
$3.93¢1 963
1
