IGNITION SWITCH LOCKS REFLECTORS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

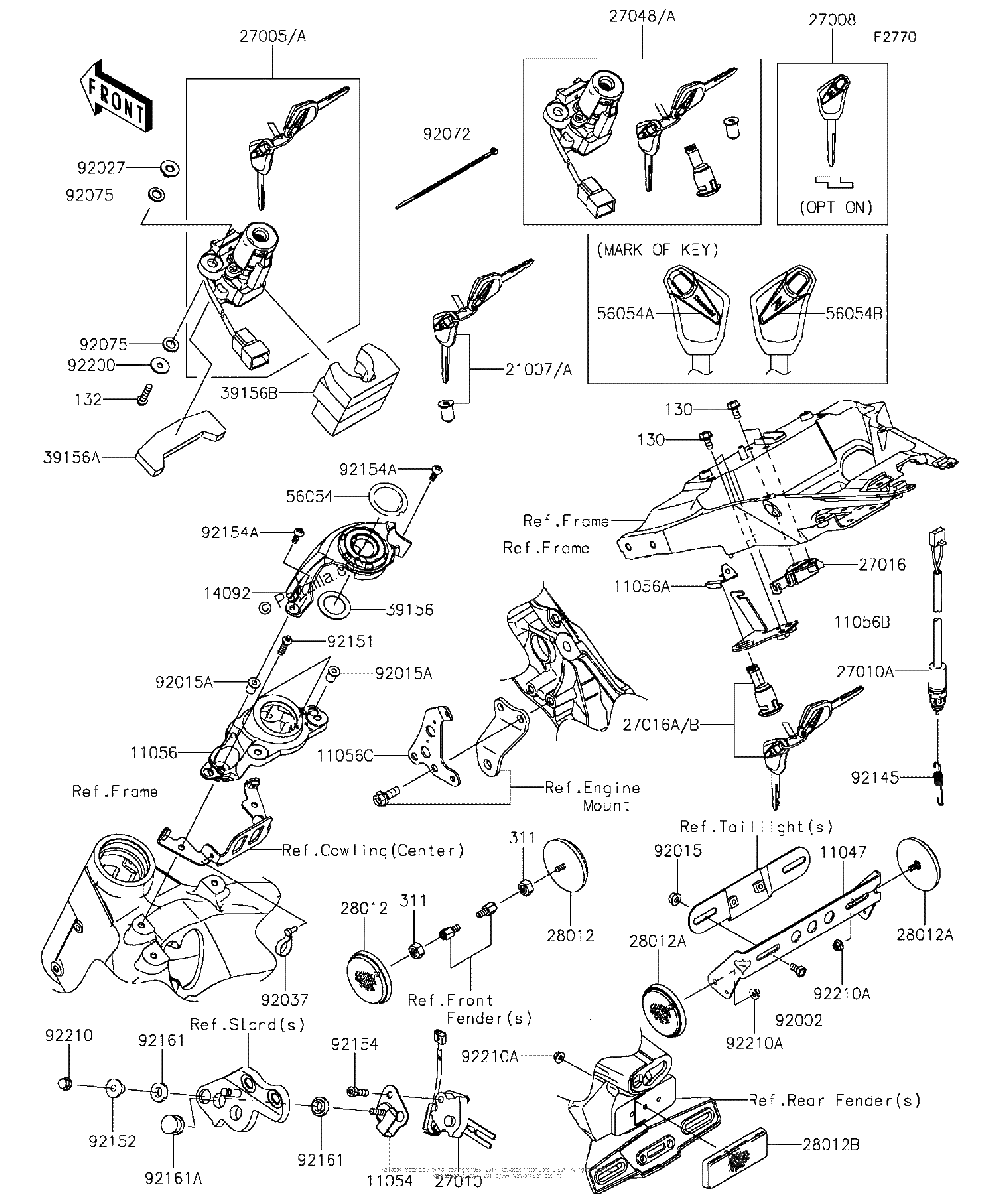

Diagrama de IGNITION SWITCH LOCKS REFLECTORS

Repuestos

#130
130BA0612
BOLT-FLANGED,6X12 | [CA]
$1.64¢819
1
#132
132BA0625
BOLT-FLANGED-SMALL,6X25
$2.58¢1 288
1
#311
311AB0500
NUT HEX,5MM
$0.60¢300
1
#11047
11047-1470
BRACKET,REFLECTOR
$34.93¢17 463
1
#11054
11054-1904
BRACKET,SIDE STAND SWITCH
$11.17¢5 587
1
#11056
11056-0161
BRACKET,IGNITION SWITCH
$84.84¢42 419
1
#11056A
11056-1084
BRACKET
$15.04¢7 519
1
#11056B
11056-2507
BRACKET,KEY CYLINDER
$11.23¢5 613
1
#11056C
11056-2807
BRACKET,IMMOBI AMP
$6.89¢3 444
1
#14092
14092-1130
COVER,KEY CYLINDER
$13.55¢6 775
1
#21007
21007-5073
ROTOR,LOCK,TANK CAP
$104.59¢52 294
1
#21007
21007-5076
ROTOR,LOCK,TANK CAP
$104.59¢52 294
1
#27005A
27005-0600
SWITCH Assembly IGNITION
$247.85¢123 925
1
#27005
27005-0594
SWITCH Assembly IGNITION
$247.85¢123 925
1
#27005
27005-0600
SWITCH Assembly IGNITION
$247.85¢123 925
1
#27008
27008-0569
KEY LOCK,BLANK
$81.13¢40 563
1
#27010
27010-0112
SWITCH,SIDE STAND
$86.19¢43 094
1
#27010A
27010-0749
SWITCH,STOP
$42.50¢21 250
1
#27016
27016-1115
LOCK Assembly,SEAT STRIKER
$34.35¢17 175
1
#27016A
27016-5382
LOCK-ASSY,SEAT
$147.34¢73 669
1
#27016A
27016-5384
LOCK Assembly,SEAT
$147.34¢73 669
1
#27048
27048-5032
SWITCH Assembly
$593.76¢296 881
1
#27048A
27048-5055
SWITCH Assembly
$593.76¢296 881
1
#27048
27048-5055
SWITCH Assembly
$593.76¢296 881
1
#28012B
28012-1077
REFLECTOR-REFLEX
$25.47¢12 737
1
#28012A
28012-0002
REFLECTOR REFLEX
$25.51¢12 756
1
#28012
28012-0001
REFLECTOR-REFLEX,FR,SIDE
$25.51¢12 756
1
#39156A
39156-1754
PAD,FRAME
$5.26¢2 631
1
#39156B
39156-1755
PAD,IG. SWITCH
$48.78¢24 388
1
#39156
39156-0617
PAD
$4.19¢2 094
1
#56054A
56054-1572
MARK,KAWASAKI
$6.23¢3 113
1
#56054B
56054-1573
MARK,Z
$6.23¢3 113
1
#56054
56054-1108
MARK,IGNITION
$8.65¢4 325
1
#92002
92002-1132
BOLT,6X12
$1.49¢744
1
#92015A
92015-1757
NUT,WELL,5MM
$7.26¢3 631
1
#92015
92015-1367
NUT,FLANGED,6MM
$3.29¢1 644
1
#92027
92027-1045
COLLAR,L=9.6
$5.45¢2 725
1
#92037
92037-1903
CLAMP,SPEED,L=80.5
$7.80¢3 900
1
#92072
92072-3768
BAND,L=148
$3.90¢1 950
1
#92075
92075-1564
DAMPER
$5.41¢2 706
1
#92145
92145-0761
SPRING,BRAKE LAMP SWITCH
$4.19¢2 094
1
#92151
92151-1946
BOLT,TORX,6X22
$3.93¢1 963
1
#92152
92152-1074
COLLAR
$6.09¢3 044
1
#92154
92154-0031
BOLT,SOCKET,6X22
$2.09¢1 044
1
#92154A
92154-0209
BOLT,SOCKET,5X16
$2.54¢1 269
1
#92161
92161-0117
DAMPER
$2.76¢1 381
1
#92161A
92161-0118
DAMPER
$2.76¢1 381
1
#92200
92200-0212
WASHER,6X20X1.6
$3.01¢1 506
1
#92210
92210-0003
NUT,CAP,6MM
$0.78¢388
1
#92210A
92210-0007
NUT,FLANGED,5MM
$2.48¢1 238
1
