CHASSIS ELECTRICAL EQUIPMENT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

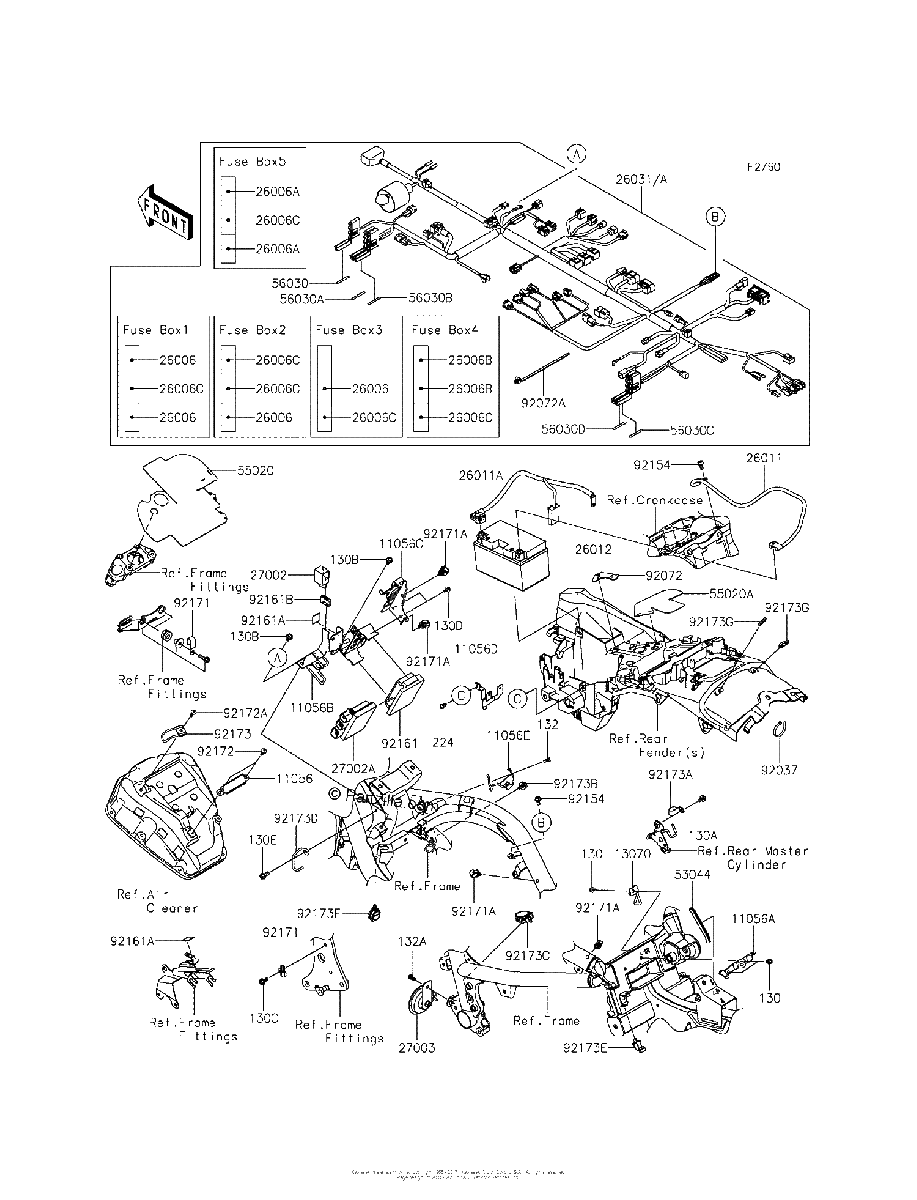

Diagrama de CHASSIS ELECTRICAL EQUIPMENT

Repuestos

#130
130AA0510
BOLT-FLANGED,5X10
$1.13¢563
1
#130E
130BB0616
BOLT FLANGED,6X16
$1.94¢969
1
#130A
130AA0610
BOLT-FLANGED,6X10
$0.63¢313
1
#130B
130AA0612
BOLT FLANGED,6X12
$0.81¢406
1
#130C
130AA0614
BOLT FLANGED,6X14
$0.65¢325
1
#130D
130BA0510
BOLT FLANGED,5X10
$1.66¢831
1
#132
132BA0510
BOLT-FLANGED-SMALL,5X10
$1.72¢862
1
#132A
132BB0612
BOLT-FLANGED-SMALL,6X12
$1.94¢969
1
#224
224AA0512
SCREW PAN WP CROS,5X12
$1.56¢781
1
#11056
11056-4283
BRACKET,ECU
$3.67¢1 838
1
#11056A
11056-4284
BRACKET,CNT FRAME
$8.47¢4 238
1
#11056B
11056-4287
BRACKET,RELAY-ASSY
$36.13¢18 063
1
#11056C
11056-4293
BRACKET,CONNECTOR,IG. SW.,ETC.
$15.71¢7 856
1
#11056D
11056-4295
BRACKET,CONNECTOR,ABS
$8.47¢4 238
1
#11056E
11056-4315
BRACKET,CONNECTOR,SENSOR
$11.55¢5 775
1
#13070
13070-0800
GUIDE,HARNESS
$8.39¢4 194
1
#26006
26006-0001
FUSE,MINI BLADE,15A,BLUE
$6.25¢3 125
1
#26006A
26006-0020
FUSE,MINI BLADE,25A,NATURAL
$6.69¢3 344
1
#26006B
26006-1077
FUSE,MINI BLADE,5A,TAN
$5.06¢2 531
1
#26006C
26006-1078
FUSE,MINI BLADE,10A,RED
$4.38¢2 188
1
#26011
26011-0711
WIRE LEAD,BATTERY( )
$44.19¢22 094
1
#26011A
26011-0870
WIRE LEAD,BATTERY(+)
$80.36¢40 181
1
#26012
26012-0689
BATTERY,YTZ10,12V 8.6AH
No Disponible
1
#26031
26031-1753
HARNESS,MAIN
$1983.16¢991 581
1
#26031A
26031-1764
HARNESS,MAIN | [CA]
$1983.16¢991 581
1
#27002
27002-0006
RELAY Assembly,SIGNAL LAMP
$65.61¢32 806
1
#27002A
27002-0025
RELAY-ASSY,BOX
$162.96¢81 481
1
#27003
27003-0111
HORN
$82.90¢41 450
1
#53044
53044-0556
TRIM,L=85
$12.45¢6 225
1
#55020A
55020-1834
GUARD,MG. SWITCH
$39.05¢19 525
1
#55020
55020-1833
GUARD,IG. SWITCH
$56.56¢28 281
1
#56030A
56030-0885
LABEL,FUSE BOX2
$3.10¢1 550
1
#56030B
56030-0886
LABEL,FUSE BOX3
$3.10¢1 550
1
#56030C
56030-0887
LABEL,FUSE BOX4
$3.10¢1 550
1
#56030D
56030-0888
LABEL,FUSE BOX5
$3.10¢1 550
1
#56030
56030-0884
LABEL,FUSE BOX1
$3.10¢1 550
1
#92037
92037-1173
CLAMP
$3.36¢1 681
1
#92072A
92072-1414
BAND
$3.70¢1 850
1
#92072
92072-0768
BAND,LEAD WIRE
$2.20¢1 100
1
#92154
92154-1050
BOLT,FLANGED,6X12
$1.96¢981
1
#92161B
92161-1443
DAMPER,15X25X8.5
$1.95¢975
1
#92161A
92161-1431
DAMPER,20X20,T1.0
$0.99¢494
1
#92161
92161-0203
DAMPER,RELAY BOX
$11.73¢5 863
1
#92171A
92171-1415
CLAMP,13MM DIA.
$1.99¢994
1
#92171
92171-0652
CLAMP,L=60
$2.41¢1 206
1
#92172A
92172-0742
SCREW,TAPPING,5X16
$1.86¢931
1
#92172
92172-0238
SCREW,TAPPING,5X16
$1.09¢544
1
#92173A
92173-0978
CLAMP
$5.79¢2 894
1
#92173B
92173-1022
CLAMP,CABLE CLIP
$1.63¢813
1
#92173C
92173-1062
CLAMP,CABLE,28MM
$3.83¢1 913
1
#92173D
92173-1334
CLAMP,WIRE,HEAD PIPE,Left Hand
$4.16¢2 081
1
#92173E
92173-1336
CLAMP,CABLE STRAP
$2.40¢1 200
1
#92173F
92173-1394
CLAMP,20MM DIA.
$2.20¢1 100
1
#92173
92173-0889
CLAMP,AIR CLEANER
$5.79¢2 894
1
#92173G
92173-1429
CLAMP,CLIP,TAIL LAMP,ETC
$1.55¢775
1
