FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

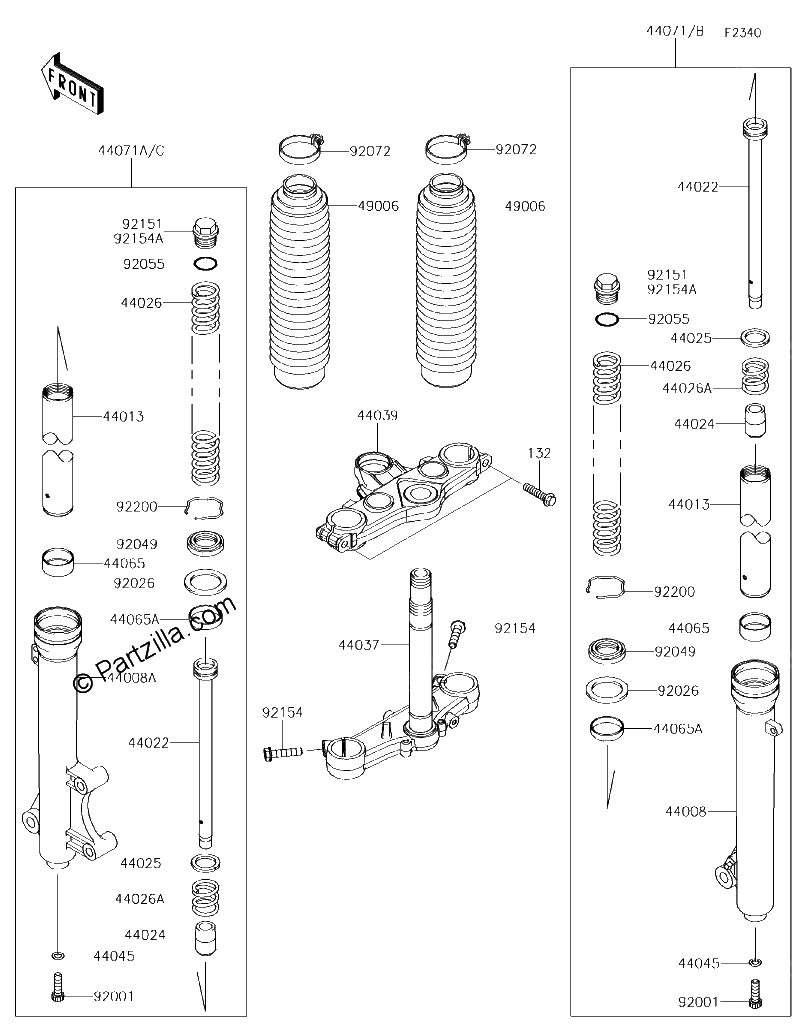

Diagrama de FRONT FORK

Repuestos

#132
132BA0835
BOLT-FLANGED-SMALL,8X35
$4.72¢2 363
1
#44008
44008-0065-458
PIPE-FORK OUTER,RH,P.SILVER
$296.00¢148 000
1
#44008A
44008-0074-458
PIPE-FORK OUTER,LH,P.SILVER
$296.00¢148 000
1
#44013
44013-0247
PIPE-FORK INNER
$250.64¢125 319
1
#44022
44022-0020
CYLINDER-FORK
$78.39¢39 194
1
#44024
44024-1067
CAP-OIL-LOCK
$24.76¢12 381
1
#44025
44025-1065
RING FORK PISTON
$11.55¢5 775
1
#44026
44026-0179
SPRING-FRONT FORK
$53.88¢26 938
1
#44026A
44026-1417
SPRING-FRONT FORK
$4.11¢2 056
1
#44037
44037-0138-458
HOLDER-FORK UNDER,P.SILVER
$324.43¢162 213
1
#44039
44039-0083-458
HOLDER-FORK UPPER,P.SILVER
$199.72¢99 863
1
#44045
44045-051
GASKET,FORK CYLINDER BOLT
$6.04¢3 019
1
#44065
44065-0053
BUSHING-FRONT FORK,INNER PIPE
$24.94¢12 469
1
#44065A
44065-1133
BUSHING FRONT FORK
$17.29¢8 644
1
#44071A
44071-1220-458
DAMPER-ASSY,LH,P.SILVER
No Disponible
1
#44071
44071-0913-458
DAMPER-ASSY,RH,P.SILVER
$567.35¢283 675
1
#49006
49006-0583-BD
BOOT,FORK,BLACK
$73.00¢36 500
1
#92001
92001-1464
BOLT,FORK CYLINDER
$6.09¢3 044
1
#92026
92026-1365
SPACER
$11.04¢5 519
1
#92049
92049-1524
SEAL-OIL,FORK OUTER TUBE
$17.45¢8 725
1
#92055
92055-1367
RING O,FORK TOP
$5.64¢2 819
1
#92072
92072-0107
BAND,BOOT
$13.38¢6 688
1
#92154A
92154-1170
BOLT,FORK
$43.69¢21 844
1
#92154
92154-1169
BOLT
$11.83¢5 913
1
#92200
92200-1496
WASHER
$6.15¢3 075
1
