COWLING CENTER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

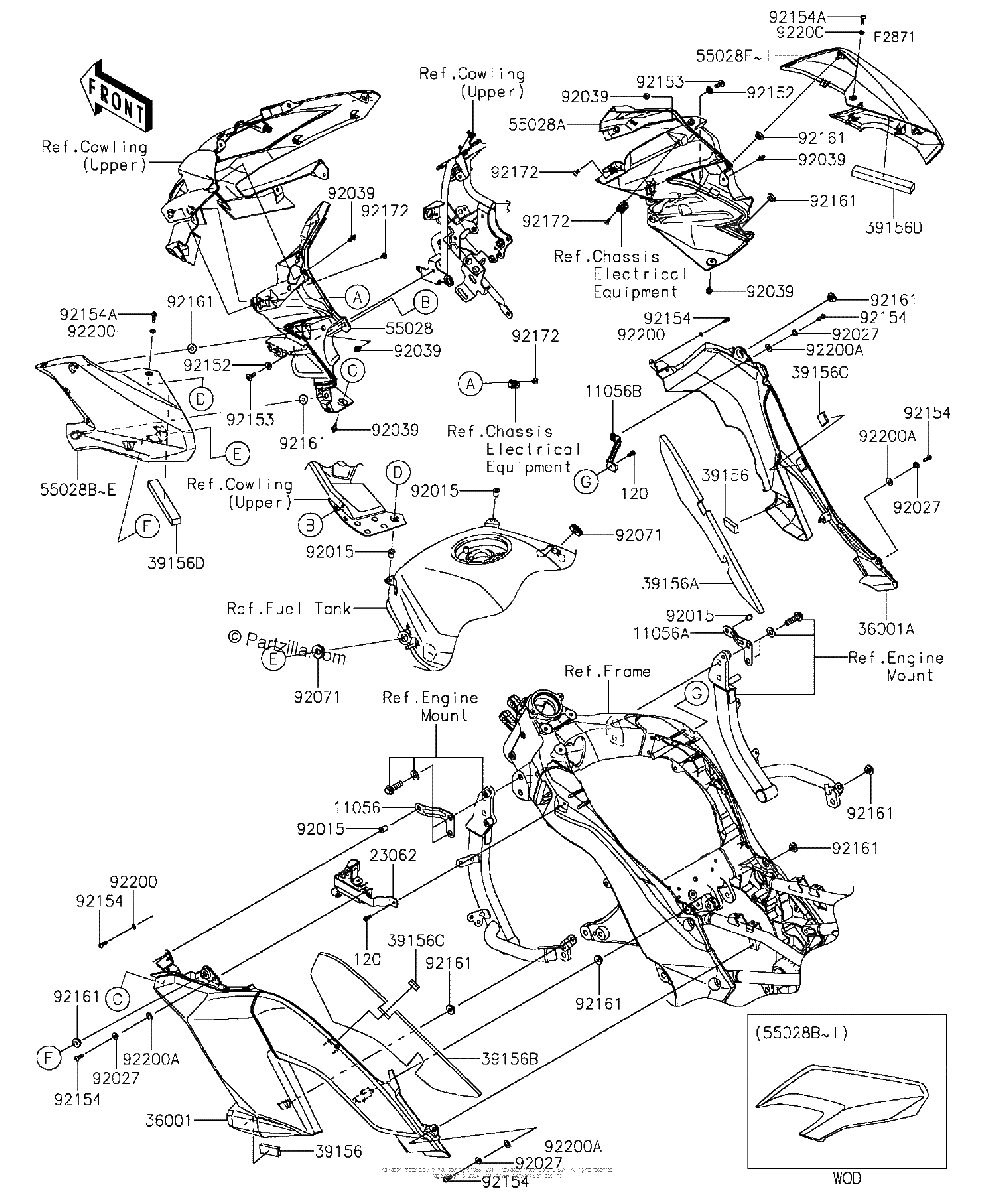

Diagrama de COWLING CENTER

Repuestos

#120
120CA0512
BOLT SOCKET,5X12
$1.43¢713
1
#11056
11056-1119
BRACKET,SIDE COVER,LH,FR
$6.21¢3 105
1
#11056A
11056-1120
BRACKET,SIDE COVER,Right Hand,Front
$6.21¢3 105
1
#11056B
11056-1122
BRACKET,SIDE COVER,RH,CNT
$8.43¢4 215
1
#23062
23062-0826
BRACKET-COMP,SIDE,LH
$66.70¢33 350
1
#36001
36001-0570-6Z
COVER SIDE,KNEE GRIP,Left Hand,F Black
$142.14¢71 070
1
#36001A
36001-0586-6Z
COVER SIDE,KNEE GRIP,Right Hand,F Black
$142.14¢71 070
1
#39156B
39156-0809
PAD,SIDE COVER,LH
$23.47¢11 736
1
#39156
39156-0802
PAD,45X18,T8
$1.77¢886
1
#39156A
39156-0808
PAD,SIDE COVER,RH
$23.47¢11 736
1
#39156C
39156-0810
PAD,18X23,T5
$1.77¢886
1
#39156D
39156-1877
PAD,20X135X15
$5.59¢2 794
1
#55028F
55028-0559-51P
COWLING,Upper,SIDE,Right Hand,C L GREEN
$302.81¢151 403
1
#55028H
55028-0559-51P
COWLING,Upper,SIDE,Right Hand,C L GREEN
$302.81¢151 403
1
#55028F
55028-0559-725
COWLING,Upper,SIDE,Right Hand,TITANIUM
$302.81¢151 403
1
#55028I
55028-0559-725
COWLING,Upper,SIDE,Right Hand,TITANIUM
$302.81¢151 403
1
#55028F
55028-0559-17L
COWLING,Upper,SIDE,Right Hand,C B ORANGE
$302.81¢151 403
1
#55028F
55028-0559-45L
COWLING,Upper,SIDE,Right Hand,F EBONY
$270.08¢135 039
1
#55028B
55028-0558-725
COWLING,Upper,SIDE,Left Hand,TITANIUM
$302.81¢151 403
1
#55028E
55028-0558-725
COWLING,Upper,SIDE,Left Hand,TITANIUM
$302.81¢151 403
1
#55028
55028-0527
COWLING,Upper,INNER,Left Hand
$116.90¢58 449
1
#55028A
55028-0528
COWLING,Upper,INNER,Right Hand
$116.90¢58 449
1
#55028B
55028-0558-17L
COWLING,Upper,SIDE,Left Hand,C B ORANGE
$302.81¢151 403
1
#55028B
55028-0558-45L
COWLING,Upper,SIDE,Left Hand,F EBONY
$302.81¢151 403
1
#55028B
55028-0558-51P
COWLING,Upper,SIDE,Left Hand,C L GREEN
$302.81¢151 403
1
#55028D
55028-0558-51P
COWLING,Upper,SIDE,Left Hand,C L GREEN
$302.81¢151 403
1
#92015
92015-1757
NUT,WELL,5MM
$6.68¢3 341
1
#92027
92027-1880
COLLAR
$4.48¢2 242
1
#92039
92039-0068
RIVET
$2.51¢1 254
1
#92071
92071-1043
GROMMET
$4.69¢2 346
1
#92152
92152-1863
COLLAR,6.5X10X5.3
$6.09¢3 048
1
#92153
92153-1526
BOLT,SOCKET,6X16
$1.59¢793
1
#92154
92154-0209
BOLT,SOCKET,5X16
$2.33¢1 167
1
#92154A
92154-0829
BOLT,SOCKET,5X20
$2.27¢1 133
1
#92161
92161-1531
DAMPER
$2.53¢1 265
1
#92172
92172-0262
SCREW,TAPPING,5X10
$1.24¢621
1
#92200
92200-0006
WASHER,NYLONE,5.3X11.5X0.5
$1.63¢816
1
#92200A
92200-2045
WASHER,8.5X17X0.8
$1.30¢650
1
