CARBURETOR CA

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

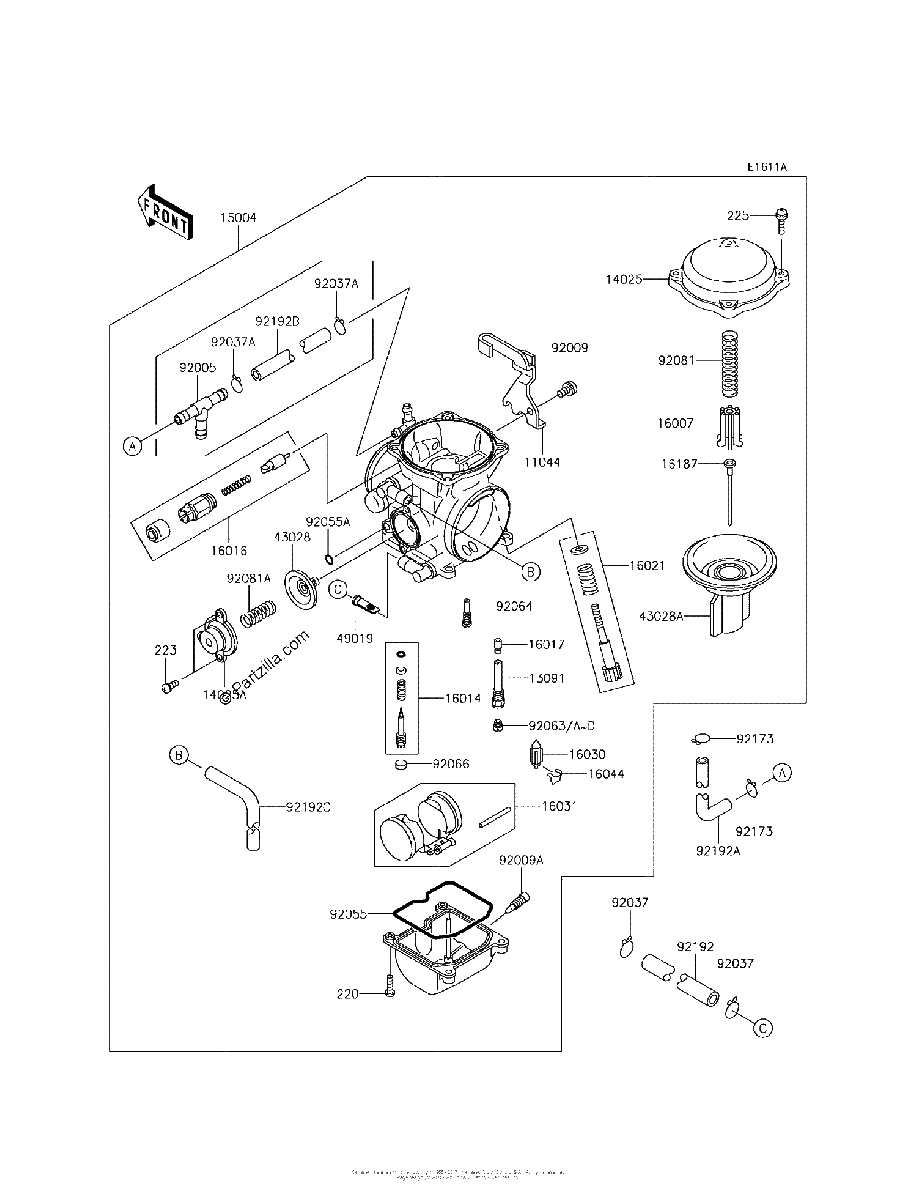

Diagrama de CARBURETOR CA

Repuestos

#220
220AA0414
SCREW-PAN-CROS,4X14 | [CN,US]
$4.56¢2 281
1
#223
223C0408
SCREW-PAN-WS-CROS,4X8 | [CA]
No Disponible
1
#225
225AB0418
SCREW PAN WSP CROS,4X18
$4.33¢2 163
1
#11044
11044-1353
BRACKET,THROTTLE CABLE | [CN,US]
$71.22¢35 613
1
#13091
13091-1425
HOLDER,NEEDLE JET
$33.80¢16 900
1
#14025
14025-1890
COVER,MIXING CHAMBER | [CN,US]
$94.11¢47 056
1
#14025A
14025-1903
COVER,AIR CUT VALVE
$69.86¢34 931
1
#15004
15004-0072
CARBURETOR Assembly,CVK40
$989.86¢494 931
1
#16007
16007-1113
SEAT SPRING,DIAPHRAGM VALVE
$22.81¢11 406
1
#16014
16014-1083
SCREW PILOT AIR
$25.10¢12 550
1
#16016
16016-1087
PLUNGER
$101.04¢50 519
1
#16017
16017-0055
JET NEEDLE,#6
$46.02¢23 013
1
#16021
16021-1201
SCREW-THROTTLE STOP | [CN,US]
$56.41¢28 206
1
#16030
16030-1057
VALVE-FLOAT | [CN,US]
$53.66¢26 831
1
#16031
16031-1077
FLOAT
$61.01¢30 506
1
#16044
16044-007
CLAMP,FLOAT VALVE | [CN,US]
$7.88¢3 938
1
#16187
16187-0275
NEEDLE JET,N6NJ
$44.74¢22 369
1
#43028
43028-0016
DIAPHRAGM,5.9MM,AIR CUT VALVE
$91.14¢45 569
1
#43028A
43028-1062
DIAPHRAGM,VALVE | [CN,US]
$239.51¢119 756
1
#49019
49019-1097
FILTER FUEL
$9.16¢4 581
1
#92005
92005-1112
FITTING,FUEL,T-TYPE | [CA]
$13.95¢6 975
1
#92009A
92009-1551
SCREW,DRAIN,6X0.75
$9.83¢4 913
1
#92009
92009-1365
SCREW,5X10 | [CN,US]
$7.30¢3 650
1
#92037
92037-1271
CLAMP,12.5MM
$2.25¢1 125
1
#92037A
92037-1477
CLAMP,TUBE | [CN,US]
$4.29¢2 144
1
#92055
92055-1222
RING-O,FLOAT CHAMBER | [CN,US]
$17.13¢8 563
1
#92055A
92055-1245
RING-O | [CN,US]
$5.51¢2 756
1
#92063
92063-1324
JET MAIN,#148
$15.67¢7 837
1
#92063
92063-1013
JET-MAIN,#140 | [CN,US] (OPTION)
$13.95¢6 975
1
#92063
92063-1016
JET MAIN,#142
$15.67¢7 837
1
#92063A
92063-1016
JET MAIN,#142
$15.67¢7 837
1
#92063
92063-1017
JET MAIN,#145
$13.95¢6 975
1
#92063B
92063-1017
JET MAIN,#145
$13.95¢6 975
1
#92063C
92063-1324
JET MAIN,#148
$15.67¢7 837
1
#92063D
92063-1330
JET MAIN,#150
$15.67¢7 837
1
#92063
92063-1330
JET MAIN,#150
$15.67¢7 837
1
#92064
92064-1108
JET-PILOT,#40 | [CN,US]
$16.73¢8 363
1
#92066
92066-1051
PLUG,PILOT AIR SCREW,6.9X2
$5.01¢2 506
1
#92081
92081-1718
SPRING,DIAPHRAGM VALVE
$30.44¢15 219
1
#92081A
92081-1719
SPRING,AIR CUT VALVE | [CN,US]
$14.11¢7 056
1
#92173
92173-1190
CLAMP
$2.46¢1 231
1
#92192
92192-0453
TUBE,FUEL,6.2X13.2X170 | [CN,US]
$30.18¢15 088
1
#92192A
92192-0480
TUBE,5X9X40&20
$18.79¢9 394
1
#92192B
92192-0588
TUBE,L=70
$17.00¢8 500
1
#92192C
92192-0589
TUBE,L=360
$35.27¢17 638
1
