ENGINE COVER S

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

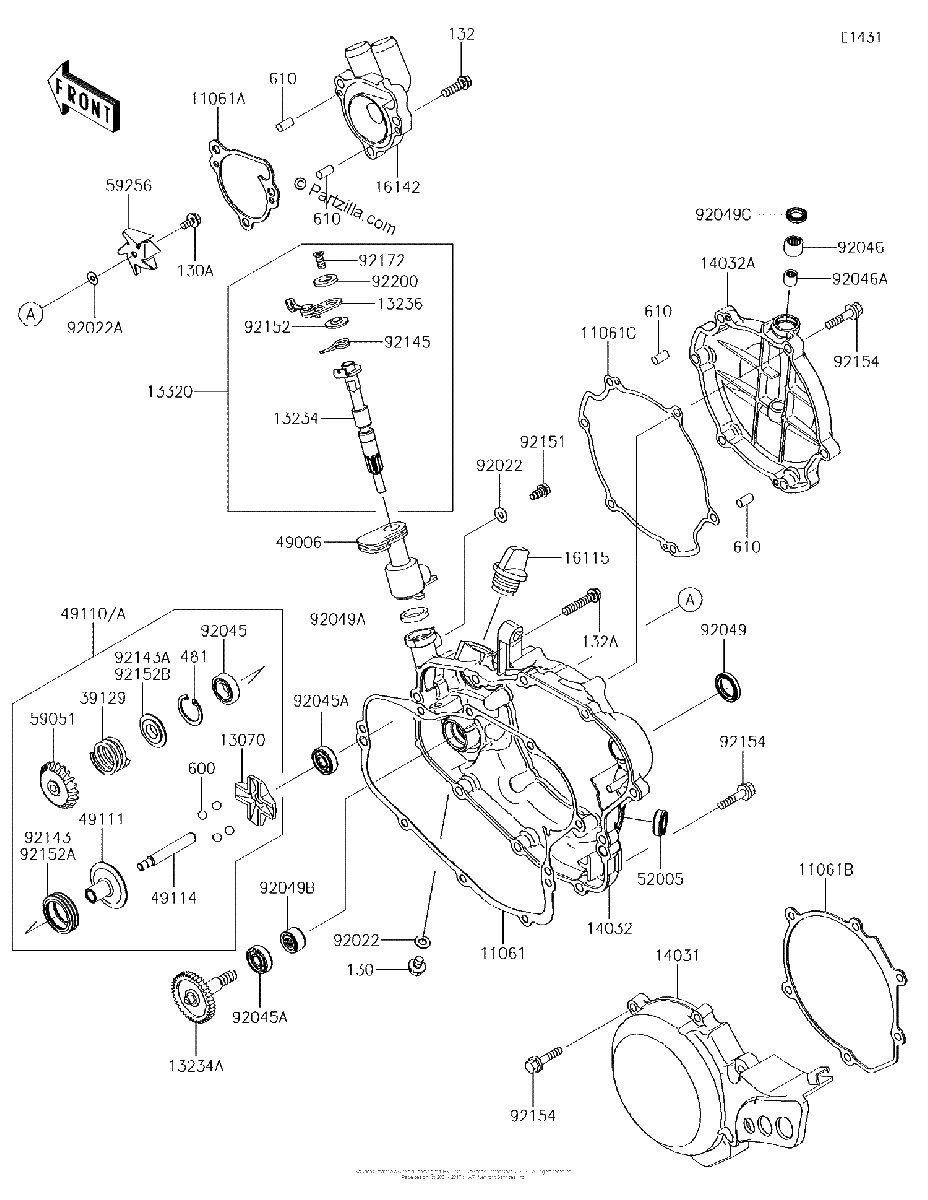

Diagrama de ENGINE COVER S

Repuestos

#130
130AA0608
BOLT FLANGED,6X8
$0.75¢374
1
#130A
130CA0510
BOLT-FLANGED,5X10
$1.67¢834
1
#132
132BA0620
BOLT-FLANGED-SMALL,6X20
$2.12¢1 058
1
#132A
132BA0630
BOLT-FLANGED-SMALL,6X30
$2.24¢1 121
1
#481
481J2400
CIRCLIP TYPE C,24MM
$2.67¢1 334
1
#600
600A1000
BALL-STEEL,5/16
$0.78¢391
1
#610
610A0408
ROLLER,4X8
$3.94¢1 972
1
#11061
11061-0122
GASKET,CLUTCH COVER
$6.93¢3 467
1
#11061B
11061-0194
GASKET,GENERATOR COVER
$20.08¢10 040
1
#11061C
11061-0869
GASKET,CLUTCH COVER
$14.98¢7 492
1
#11061A
11061-0184
GASKET,PUMP COVER
$7.04¢3 519
1
#13070
13070-1309
GUIDE,GOVERNOR
$58.81¢29 405
1
#13234
13234-0008
SHAFT-COMP
$54.11¢27 054
1
#13234A
13234-1103
SHAFT COMP,WATER PUMP
$74.85¢37 427
1
#13236
13236-0023
LEVER COMP
$5.66¢2 829
1
#13320
13320-0002
LEVER Assembly
$60.40¢30 199
1
#14031
14031-0580
COVER-GENERATOR
$80.07¢40 037
1
#14032
14032-0041
COVER CLUTCH,INSIDE
$223.25¢111 625
1
#14032A
14032-0578
COVER CLUTCH,OUTSIDE
$90.83¢45 414
1
#16115
16115-018
CAP-OIL FILLER
$9.64¢4 819
1
#16142
16142-1144
COVER-PUMP,WATER
$86.74¢43 372
1
#39129
39129-1022
SPRING GOVERNOR
$5.91¢2 956
1
#49006
49006-1313
BOOT,GOVERNOR
$9.82¢4 910
1
#49110
49110-0010
GOVERNOR-ASSY
$197.22¢98 613
1
#49110
49110-0014
GOVERNOR Assembly
$197.22¢98 613
1
#49111
49111-1064
HOLDER-GOVERNOR WEIGHT
$26.92¢13 461
1
#49114
49114-0005
SHAFT-GOVERNOR
$18.11¢9 056
1
#52005
52005-0019
GAUGE,OIL LEVEL
$13.42¢6 710
1
#59051
59051-1412
GEAR SPUR
$33.06¢16 531
1
#59256
59256-1064
IMPELLER
$37.83¢18 917
1
#92022A
92022-1380
WASHER,5.2X13X1
$3.94¢1 972
1
#92022
92022-077
WASHER,6.1X12X1
$3.40¢1 702
1
#92045A
92045-1305
BEARING BALL,608MC3
$11.27¢5 635
1
#92045
92045-0010
BEARING BALL
$38.15¢19 073
1
#92046A
92046-1217
BEARING-NEEDLE,6BTM109
$17.34¢8 671
1
#92046
92046-0046
BEARING-NEEDLE,HK1010FM
$15.75¢7 877
1
#92049A
92049-1262
SEAL-OIL,AG0353-F0
$5.91¢2 956
1
#92049B
92049-1366
SEAL-OIL,MHSD8X18X10J-1
$16.23¢8 113
1
#92049C
92049-1414
SEAL-OIL,BG1408F0
$5.01¢2 507
1
#92049
92049-002
SEAL-OIL,SB16244
$8.10¢4 048
1
#92143A
92143-1933
COLLAR
$9.71¢4 853
1
#92143
92143-1932
COLLAR
$20.73¢10 367
1
#92145
92145-0089
SPRING
$4.22¢2 110
1
#92151
92151-1180
BOLT,FLANGED,6X11
$2.10¢1 052
1
#92152B
92152-2328
COLLAR
$9.42¢4 709
1
#92152A
92152-2327
COLLAR
$20.73¢10 367
1
#92152
92152-0085
COLLAR,LEVER
$4.04¢2 018
1
#92154
92154-0520
BOLT,FLANGED,6X25
$2.77¢1 386
1
#92172
92172-0087
SCREW,6X14
$2.07¢1 035
1
#92200
92200-0040
WASHER,LEVER
$3.54¢1 771
1
