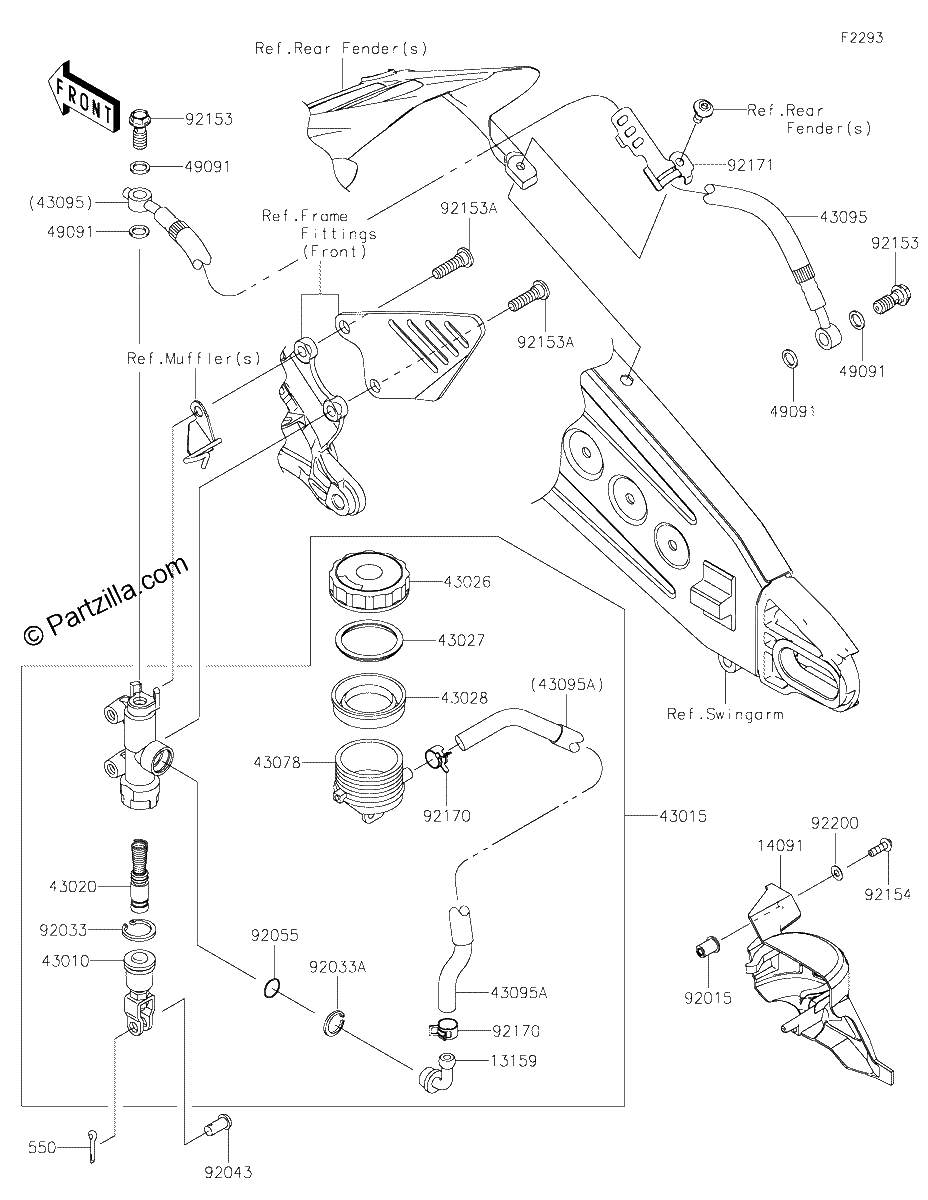

REAR MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#550
PIN COTTER,2.0X15
$1.17¢587
#13159
CONNECTOR
$13.95¢6 975
#14091
COVER,RESERVOIR TANK
$44.19¢22 094
#43010
ROD Assembly BRAKE
$58.34¢29 169
#43015
CYLINDER Assembly MASTER,Rear
$522.48¢261 238
#43020
PISTON-COMP-BRAKE
$74.31¢37 156
#43026
CAP BRAKE
$38.94¢19 469
#43027
PLATE DIAPHRAGM
$5.26¢2 631
#43028
DIAPHRAGM,MASTER CYLINDER
$18.76¢9 381
#43078
RESERVOIR
$30.61¢15 306
#43095A
HOSE BRAKE,Rear M/CYLINDER
$24.21¢12 106
#43095
HOSE BRAKE,Rear
$105.41¢52 706
#49091
WASHER-SEAL,10.1X14.5X1.5
$2.04¢1 019
#92015
NUT,WELL,5MM
$7.26¢3 631
#92033A
RING-SNAP,20.5MM
$4.92¢2 463
#92033
RING SNAP,20.9X24.6X1.2
$7.74¢3 869
#92043
PIN,8X17
$3.89¢1 944
#92055
RING O,14.8X2.4
$3.67¢1 838
#92153A
BOLT,SOCKET,8X30
$3.89¢1 944
#92153
BOLT,OIL,L=23
$5.41¢2 706
#92154
BOLT,SOCKET,5X16
$2.54¢1 269
#92170
CLAMP,HOSE
$4.96¢2 481
#92171
CLAMP,BRAKE HOSE
$9.66¢4 831
#92200
WASHER,NYLONE,5.3X11.5X0.5
$1.77¢888
