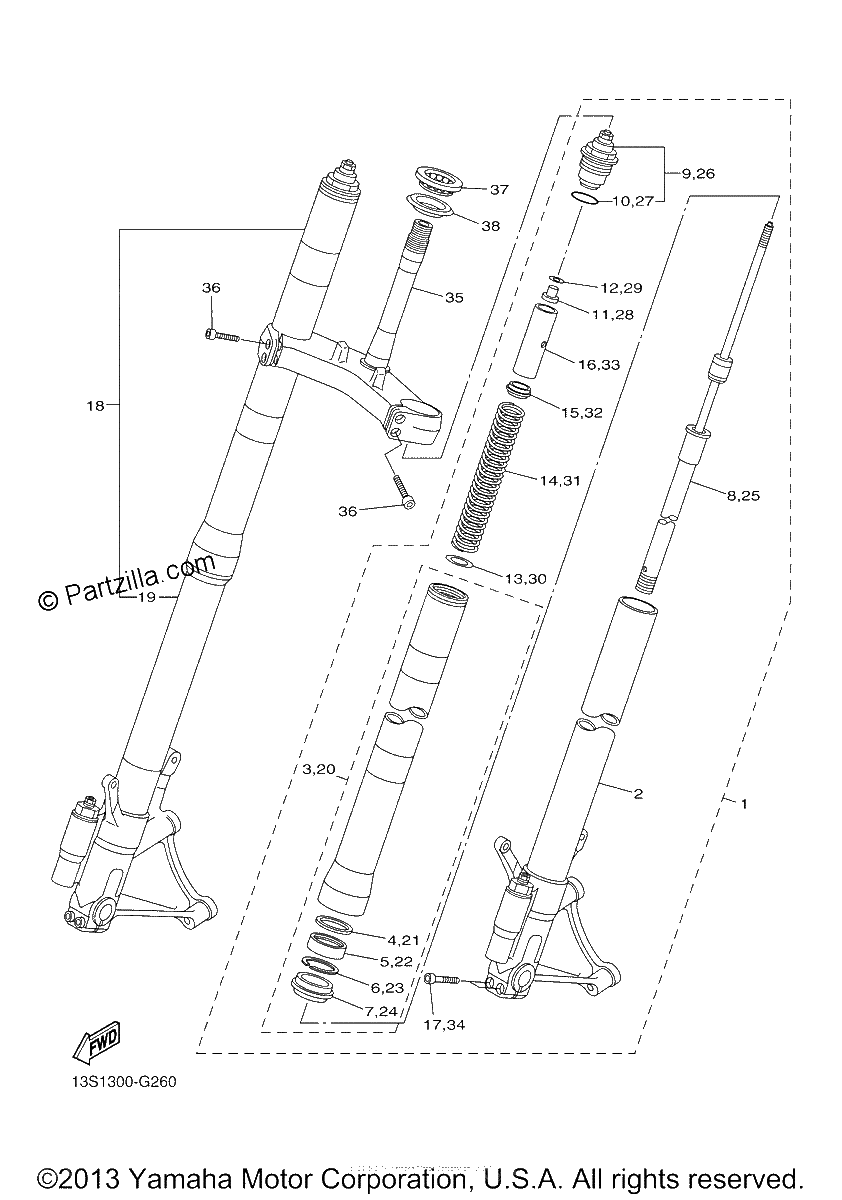

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#0
OUTER TUBE COMP. | UR FOR SMX
$279.93¢139 963
#0
FRONT FORK ASSY (R.H) | UR FOR SMX
$1047.49¢523 744
#0
FRONT FORK ASSY (L.H) | UR FOR SMX
$1286.24¢643 119
#1
FRONT FORK ASSY (L.H) | UR FOR DPBMC
$1238.86¢619 431
#2
INNER TUBE COMP. 1
$630.40¢315 200
#3
OUTER TUBE COMP. | UR FOR DPBMC
$443.10¢221 550
#4
GUIDE, COVER UPPER
$12.29¢6 144
#5
OIL SEAL
$30.38¢15 188
#6
RING, SNAP
$7.77¢3 887
#7
SEAL, DUST
$26.91¢13 456
#8
CYLINDER COMP., FRONT FORK
$439.52¢219 763
#9
BOLT, CAP
$342.69¢171 344
#10
O-RING
$7.46¢3 731
#11
NUT, SPECIAL
$14.20¢7 100
#12
PLATE, VALVE 2
$8.03¢4 013
#13
SEAT, SPRING LOWER
$7.95¢3 975
#14
SPRING, FRONT FORK
$43.67¢21 838
#15
SEAT, SPRING UPPER
$3.79¢1 894
#16
SPACER
$8.68¢4 338
#17
BOLT (3JP)
$6.25¢3 125
#18
FRONT FORK ASSY (R.H) | UR FOR DPBMC
$1238.86¢619 431
#19
INNER TUBE COMP. 2
$622.99¢311 494
#20
OUTER TUBE COMP. | UR FOR DPBMC
$443.10¢221 550
#21
GUIDE, COVER UPPER
$12.29¢6 144
#22
OIL SEAL
$30.38¢15 188
#23
RING, SNAP
$7.77¢3 887
#24
SEAL, DUST
$26.91¢13 456
#25
CYLINDER COMP., FRONT FORK
$439.52¢219 763
#26
BOLT, CAP
$342.69¢171 344
#27
O-RING
$7.46¢3 731
#28
NUT, SPECIAL
$14.20¢7 100
#29
PLATE, VALVE 2
$8.03¢4 013
#30
SEAT, SPRING LOWER
$7.95¢3 975
#31
SPRING, FRONT FORK
$43.67¢21 838
#32
SEAT, SPRING UPPER
$3.79¢1 894
#33
SPACER
$8.68¢4 338
#34
BOLT (3JP)
$6.25¢3 125
#35
UNDER BRACKET COMP.
$572.44¢286 219
#36
BOLT, HEXAGON SOCKET HEAD
$2.73¢1 363
#37
BEARING
$72.81¢36 406
#38
SEAL, STEERING
$25.53¢12 763
