EXHAUST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

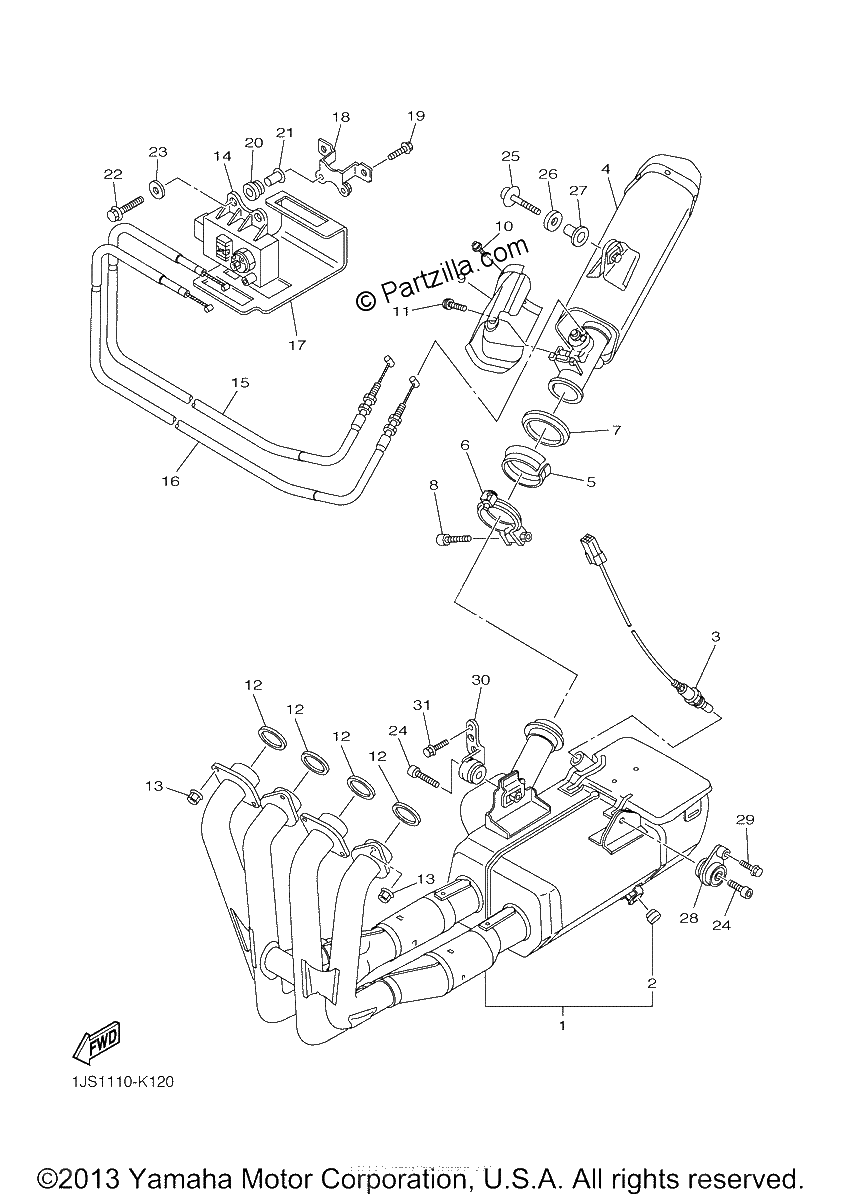

Diagrama de EXHAUST

Repuestos

#1
13S-14610-30-00
EXHAUST PIPE ASSY 1
$2541.24¢1 270 619
1
#2
4FM-24181-00-00
DAMPER,LOCATING 1
$14.81¢7 406
1
#3
13S-8592A-00-00
Sensor, Oxygen
$512.14¢256 069
1
#4
13S-14753-30-00
SILENCER, EXHAUST
$1594.99¢797 494
1
#5
2C0-14618-00-00
RING, STOPPER
$43.31¢21 656
1
#6
2C0-14725-00-00
BAND, MUFFLER
$91.72¢45 863
1
#7
2C0-14623-00-00
Gasket, Exhaust Pipe
$20.44¢10 219
1
#8
91314-06030-00
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
1
#9
13S-14718-00-00
PROTECTOR, MUFFLER 1
$114.38¢57 188
1
#10
90111-06100-00
BOLT,HEX. SOCKET BUT (replaces 90111-06099-00)
$7.75¢3 875
1
#11
90111-06038-00
BOLT, HEX. SOCKET BUTTON
$4.11¢2 056
1
#12
4FM-14613-00-00
GASKET, EXHAUST PIPE
$12.75¢6 375
1
#13
90179-08410-00
NUT
$5.99¢2 994
1
#14
2C0-85820-00-00
SERVO MOTOR ASSY
$536.14¢268 069
1
#15
13S-1133E-01-00
CABLE, PULLEY 1
$67.60¢33 800
1
#16
13S-1133F-01-00
CABLE, PULLEY 2
$68.05¢34 025
1
#17
2C0-2177F-00-00
Cover
$17.90¢8 950
1
#18
2C0-2116J-00-00
BRACKET 7
$18.30¢9 150
1
#19
95027-06025-00
BOLT,SMALL FLANGE
$3.77¢1 888
1
#20
90480-14005-00
Grommet
$4.00¢2 000
1
#21
90387-06158-00
COLLAR
$7.34¢3 669
1
#22
95817-06014-00
BOLT, FLANGE (replaces 95802-06014-00)
$2.65¢1 325
1
#23
90201-06M31-00
WASHER,PLATE
$3.57¢1 787
1
#24
91314-08035-00
BOLT, HEXAGON SOCKET HEAD
$2.94¢1 469
1
#25
90110-08099-00
BOLT, HEXAGON SOCKET HEAD
$8.01¢4 006
1
#26
90201-087G2-00
WASHER, PLATE
$3.70¢1 850
1
#27
90387-08021-00
COLLAR
$10.14¢5 069
1
#28
13S-21446-00-00
STAY, MUFFLER 2
$91.46¢45 731
1
#29
90105-08054-00
Bolt, Flange
$7.72¢3 863
1
#30
13S-21445-00-00
STAY, MUFFLER 1
$83.46¢41 731
1
#31
95812-08020-00
Bolt, Flange
$2.01¢1 006
1
