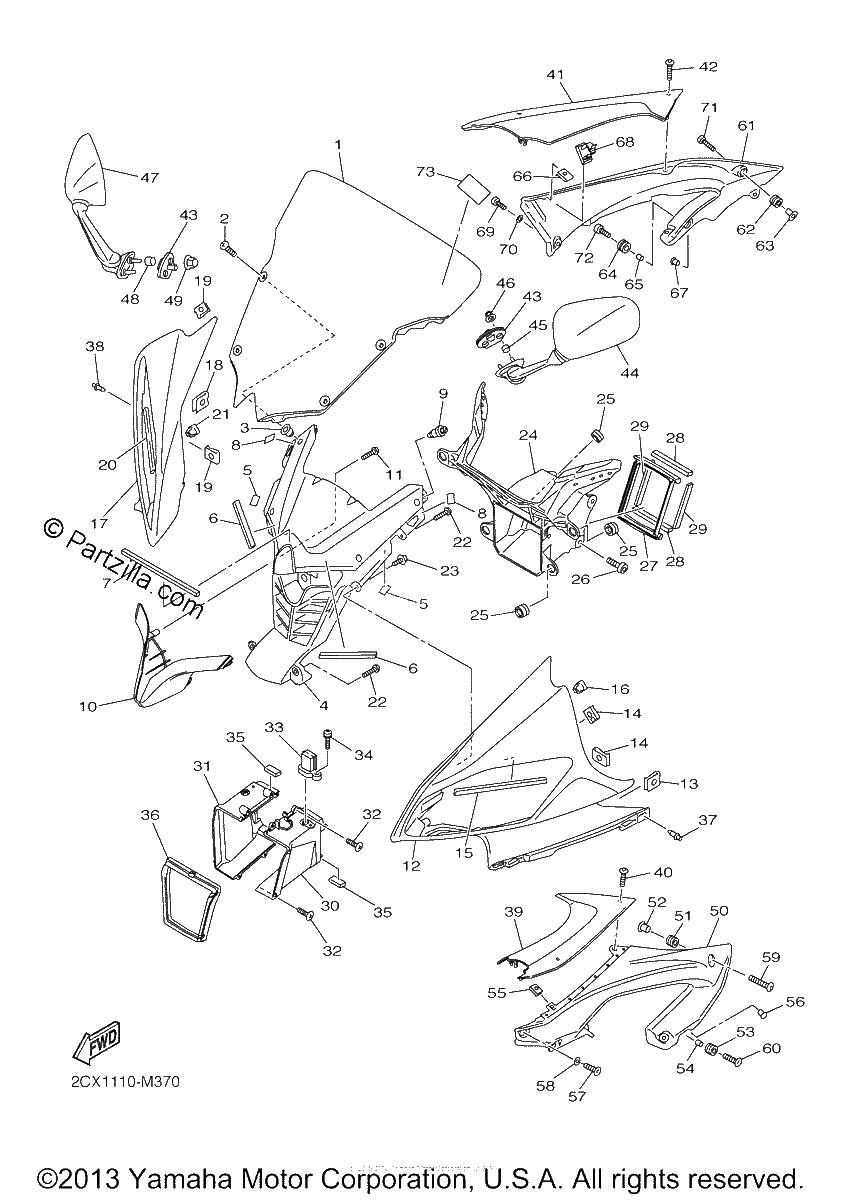

COWLING 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#0
COVER 7 | Use for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 )
$316.39¢158 194
#0
BODY, FRONT UPPER 2 | UR FOR MNM3
$327.82¢163 913
#0
BODY, FRONT UPPER 1 | UR FOR MNM3
$316.28¢158 138
#0
BODY, FRONT UPPER 1 | Use for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 )
$295.66¢147 831
#0
BODY, FRONT UPPER 2 | Use for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 )
$327.82¢163 913
#0
COVER 8 | UR FOR MNM3
$280.15¢140 075
#0
COVER 8 | Use for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 )
$221.50¢110 750
#0
COVER 7 | UR FOR MNM3
$235.47¢117 738
#1
Windshield
$115.55¢57 775
#2
SCREW,ROUND HEAD
$3.33¢1 663
#3
NUT
$6.78¢3 388
#4
PANEL, INNER 1
$87.94¢43 969
#5
DAMPER 1
$7.70¢3 850
#6
DAMPER 2
$7.08¢3 538
#7
DAMPER 3
$7.95¢3 975
#8
Damper
$7.08¢3 538
#9
RIVET
$6.45¢3 225
#10
Cover
$18.31¢9 156
#11
SCREW, TAPPING
$7.35¢3 675
#12
BODY, FRONT UPPER 1 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$356.10¢178 050
#13
NUT, SPRING
$2.82¢1 412
#14
NUT, SPRING
$1.25¢625
#15
DAMPER, 4
$6.55¢3 275
#16
Grommet
$8.71¢4 356
#17
BODY, FRONT UPPER 2 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$344.60¢172 300
#18
NUT, SPRING
$2.82¢1 412
#19
NUT, SPRING
$1.25¢625
#20
DAMPER, 4
$6.55¢3 275
#21
Grommet
$8.71¢4 356
#22
SCREW, TRUSS HEAD TAPPING
$1.71¢856
#23
SCREW, TAPPING
$7.95¢3 975
#24
STAY 1
$529.61¢264 806
#25
DAMPER
$7.63¢3 813
#26
BOLT, HEX. SOCKET BUTTON
$6.81¢3 406
#27
JOINT
$4.38¢2 188
#28
DAMPER 1
$1.50¢750
#29
DAMPER 2
$6.45¢3 225
#30
DUCT 2
$13.26¢6 631
#31
DUCT 3
$12.29¢6 144
#32
SCREW, TAPPING
$7.35¢3 675
#33
SENSOR, AIR TEMPERATURE
$61.02¢30 513
#34
SCREW, TAPPING
$1.75¢875
#35
DAMPER 2
$6.45¢3 225
#36
Damper
$34.63¢17 313
#37
RIVET
$8.80¢4 400
#38
RIVET
$8.80¢4 400
#39
GROMMET
$7.43¢3 713
#39
PANEL, console 1
$24.25¢12 125
#40
BOLT,HEX. SOCKET BUT
$5.91¢2 956
#41
PANEL, CONSOLE 2
$24.02¢12 013
#42
BOLT,HEX. SOCKET BUT
$5.91¢2 956
#43
PLATE, MIRROR FITTIN
$9.91¢4 956
#44
REAR VIEW MIRROR ASS
$184.70¢92 350
#45
COLLAR (J45)
$5.93¢2 963
#46
NUT, CROWN
$2.73¢1 363
#47
REAR VIEW MIRROR ASS
$130.34¢65 169
#48
COLLAR (J45)
$5.93¢2 963
#49
NUT, CROWN
$2.73¢1 363
#50
COVER 7 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$221.50¢110 750
#51
Grommet
$23.96¢11 981
#52
COLLAR
$6.19¢3 094
#54
COLLAR
$7.43¢3 713
#55
NUT, SPRING
$2.82¢1 412
#56
PLUG,SPEC'L SHAPE
$7.86¢3 931
#57
BOLT, HEXAGON SOCKET HEAD
$2.55¢1 275
#58
WASHER, PLATE
$7.66¢3 831
#59
BOLT,HEX. SOCKET BUT
$7.48¢3 738
#60
bolt
$4.00¢2 000
#61
COVER 8 | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$280.15¢140 075
#62
Grommet
$23.96¢11 981
#63
COLLAR
$6.19¢3 094
#64
GROMMET
$7.43¢3 713
#65
COLLAR
$7.43¢3 713
#66
NUT, SPRING
$2.82¢1 412
#67
PLUG,SPEC'L SHAPE
$7.86¢3 931
#68
Clamp
$4.65¢2 325
#69
BOLT, HEXAGON SOCKET HEAD
$2.55¢1 275
#70
WASHER, PLATE
$7.66¢3 831
#71
BOLT,HEX. SOCKET BUT
$7.48¢3 738
#72
bolt
$4.00¢2 000
#73
LABEL, NOTICE WINDSHIELD 1
$8.92¢4 462
