REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

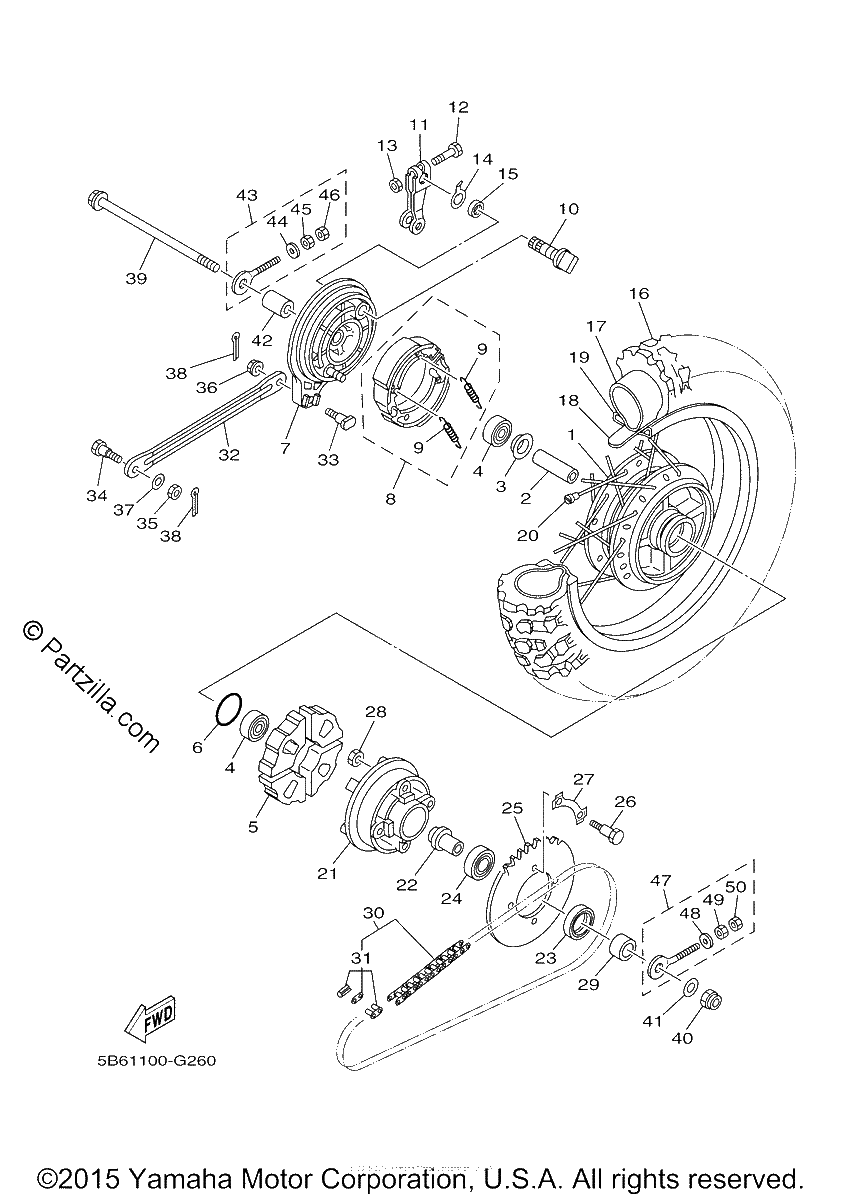

Diagrama de REAR WHEEL

Repuestos

#1
21W-25311-00-35
HUB, REAR | SL FOR DPBSE
$127.89¢63 946
1
#2
90560-12145-00
SPACER
$18.85¢9 424
1
#3
109-25315-00-00
FLANGE, SPACER
$6.80¢3 398
1
#4
93306-30111-00
BEARING
$37.52¢18 762
1
#5
304-25364-01-00
DAMPER
$23.16¢11 580
1
#6
93210-41041-00
O-RING
$6.43¢3 214
1
#7
5B6-25321-00-35
PLATE, BRAKE SHOE | SL FOR DPBSE
$110.85¢55 424
1
#8
4BE-W253E-00-00
BRAKE SHOE KIT
$25.09¢12 547
1
#9
90506-15260-00
SPRING,TENSION
$6.30¢3 151
1
#10
4GL-25351-00-00
CAMSHAFT (replaces 3Y6-25351-00-00)
$67.76¢33 879
1
#11
538-25355-00-00
LEVER, CAMSHAFT
$36.17¢18 084
1
#12
90101-06278-00
BOLT
$2.05¢1 023
1
#13
95317-06600-00
NUT
$2.96¢1 478
1
#14
3Y6-2533A-01-00
PLATE, INDICATOR
$5.97¢2 984
1
#15
93109-14021-00
OIL SEAL
$11.60¢5 802
1
#16
94130-121A7-00
TIRE (3.00-12 2PR) | CHENG SHIN
$50.19¢25 093
1
#17
94230-12208-00
TUBE (3.00-12 TR4) | CHENG SHIN
$43.02¢21 511
1
#18
94330-12100-00
BAND, RIM (1.60-12) | CHENG SHIN
$28.45¢14 225
1
#19
94416-12002-00
RIM (1.60-12)
$167.16¢83 582
1
#20
21W-25304-00-00
SPOKE SET, REAR
$67.86¢33 931
1
#21
296-25366-01-35
CLUTCH, HUB | SL FOR DPBSE
$62.64¢31 320
1
#22
21W-25387-00-00
AXLE, SPROCKET
$31.31¢15 657
1
#23
93106-30004-00
OIL SEAL
$12.03¢6 015
1
#24
93306-00444-00
BEARING
$40.23¢20 114
1
#25
5A7-25435-01-00
SPROCKET, DRIVEN (35T)
$27.58¢13 789
1
#26
90101-08672-00
BOLT
$3.04¢1 518
1
#27
4AW-25412-00-00
WASHER
$4.77¢2 386
1
#28
90179-08639-00
NUT, SPECIAL SHAPE (30)
$7.42¢3 709
1
#29
90387-207G3-00
COLLAR
$14.75¢7 377
1
#30
9Y580-52089-00
420-90L
$30.90¢15 450
1
#31
94680-52001-00
JOINT, CHAIN (DID 420M)
$3.04¢1 518
1
#32
4BC-25371-00-00
BAR, TENSION
$17.39¢8 694
1
#33
90109-08183-00
BOLT
$6.76¢3 381
1
#34
90109-08368-00
BOLT
$7.65¢3 824
1
#35
95317-08700-00
NUT
$7.72¢3 858
1
#36
95707-08500-00
NUT, FLANGE
$1.64¢822
1
#37
92990-08600-00
WASHER, PLATE
$2.54¢1 271
1
#38
91490-20015-00
PIN. COTTER
$2.02¢1 012
1
#39
5HN-25381-00-00
AXLE, WHEEL
$24.40¢12 201
1
#40
90185-12007-00
NUT, SELF-LOCKING
$9.79¢4 893
1
#41
90201-12045-00
WASHER, PLATE
$5.65¢2 823
1
#42
90387-12412-00
COLLAR
$15.06¢7 532
1
#43
3AC-2538G-10-00
PULLER, CHAIN
$12.85¢6 423
1
#44
90201-061A5-00
WASHER, PLATE
$6.43¢3 214
1
#45
90170-06184-00
NUT
$5.47¢2 737
1
#46
95317-06600-00
NUT
$2.96¢1 478
1
#47
4GL-2538G-10-00
PULLER, CHAIN
$17.23¢8 614
1
#48
90201-061A5-00
WASHER, PLATE
$6.43¢3 214
1
#49
90170-06184-00
NUT
$5.47¢2 737
1
#50
95317-06600-00
NUT
$2.96¢1 478
1
