SHIFT SHAFT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

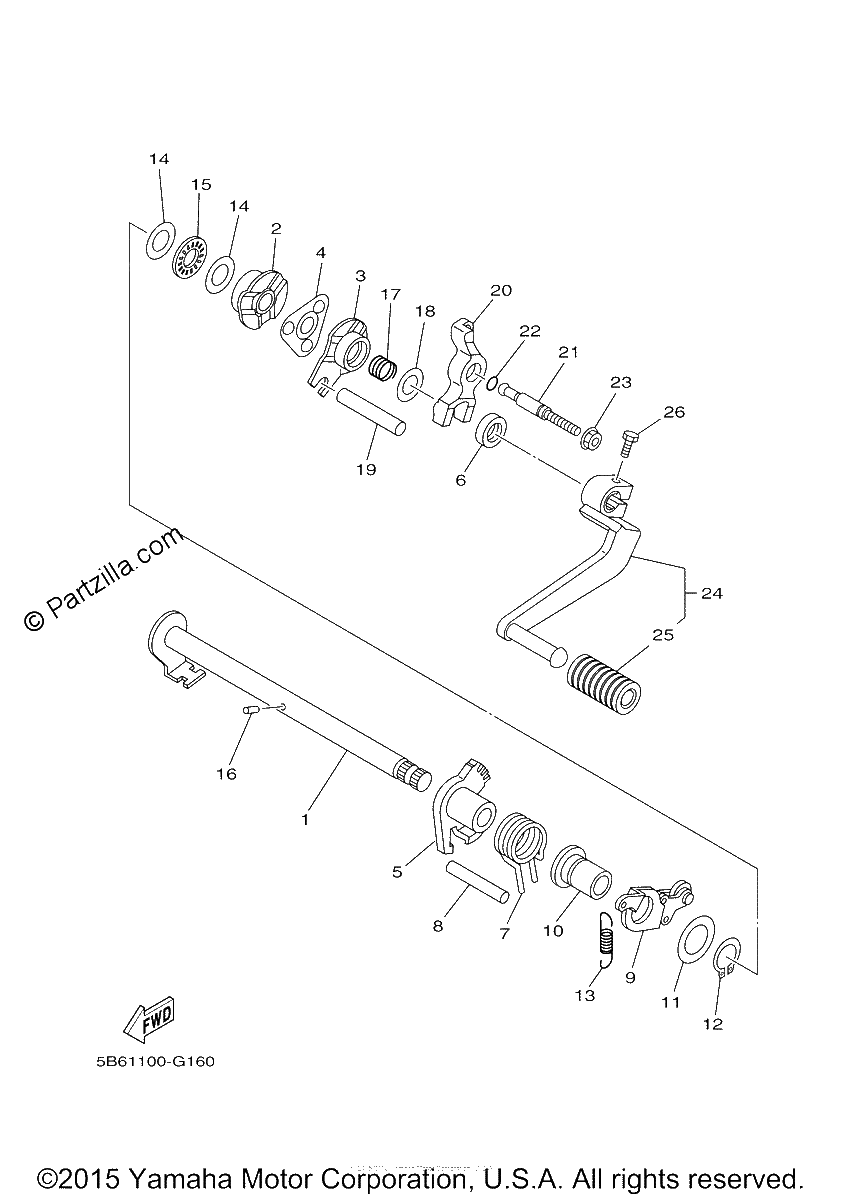

Diagrama de SHIFT SHAFT

Repuestos

#1
5TP-E8101-01-00
SHIFT SHAFT ASSY (45 (replaces 5TP-E8101-00-00)
$21.08¢10 540
1
#2
5KY-18179-00-00
GUIDE (replaces 5TP-E8179-00-00)
No Disponible
1
#3
5TP-E8172-01-00
GUIDE, SHIFT (replaces 5TP-E8172-00-00)
$7.91¢3 956
1
#4
5TP-E8181-00-00
HOLDER, PAWL (JUPITE
$5.72¢2 858
1
#5
5TP-E8152-10-00
LEVER, SHIFT 4 (JUPI
$18.56¢9 281
1
#6
93102-12321-00
OIL SEAL, SD-TYPE
$11.10¢5 549
1
#7
90508-29007-00
Spring, Torsion
$10.38¢5 192
1
#8
93608-50149-00
PIN,DOWEL
$7.91¢3 956
1
#9
5TP-E8140-00-00
STOPPER LEVER ASSY (
$9.94¢4 968
1
#10
1DY-E8699-00-00
BOSS 1
$2.44¢1 219
1
#11
90201-177G4-00
WASHER,PLATE
$7.44¢3 720
1
#12
99009-17400-00
Circlip
$4.28¢2 139
1
#13
5TP-E8337-00-00
SPRING (JUPITER-Z)
$1.09¢546
1
#14
90201-126L0-00
WASHER, PLATE
$5.69¢2 846
1
#15
93340-21210-00
BEARING (replaces 93340-212Y2-00)
No Disponible
1
#16
93604-10011-00
PIN, DOWEL
$5.75¢2 875
1
#17
90501-125E9-00
SPRING, COMPRESSIO
$7.30¢3 651
1
#18
90201-126A7-00
WASHER, PLATE
$6.88¢3 439
1
#19
5LM-E8173-00-00
PIN, SHIFT (VEGA-R)
$5.01¢2 507
1
#20
2P2-E817A-00-00
ARM, SHIFT 3
$29.55¢14 777
1
#21
4YS-E8186-00-00
Screw, Adjusting
$23.31¢11 655
1
#22
93210-06632-00
O-Ring
$7.30¢3 651
1
#23
95702-06500-00
NUT, FLANGE
$2.24¢1 121
1
#24
5B6-18110-00-00
SHIFT PEDAL ASSY
$49.59¢24 794
1
#25
132-18113-01-00
COVER,SHIFT PEDAL
$6.99¢3 496
1
#26
97017-06020-00
BOLT, HEXAGON (replaces 97027-06020-00)
$2.78¢1 392
1
