INTAKE 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

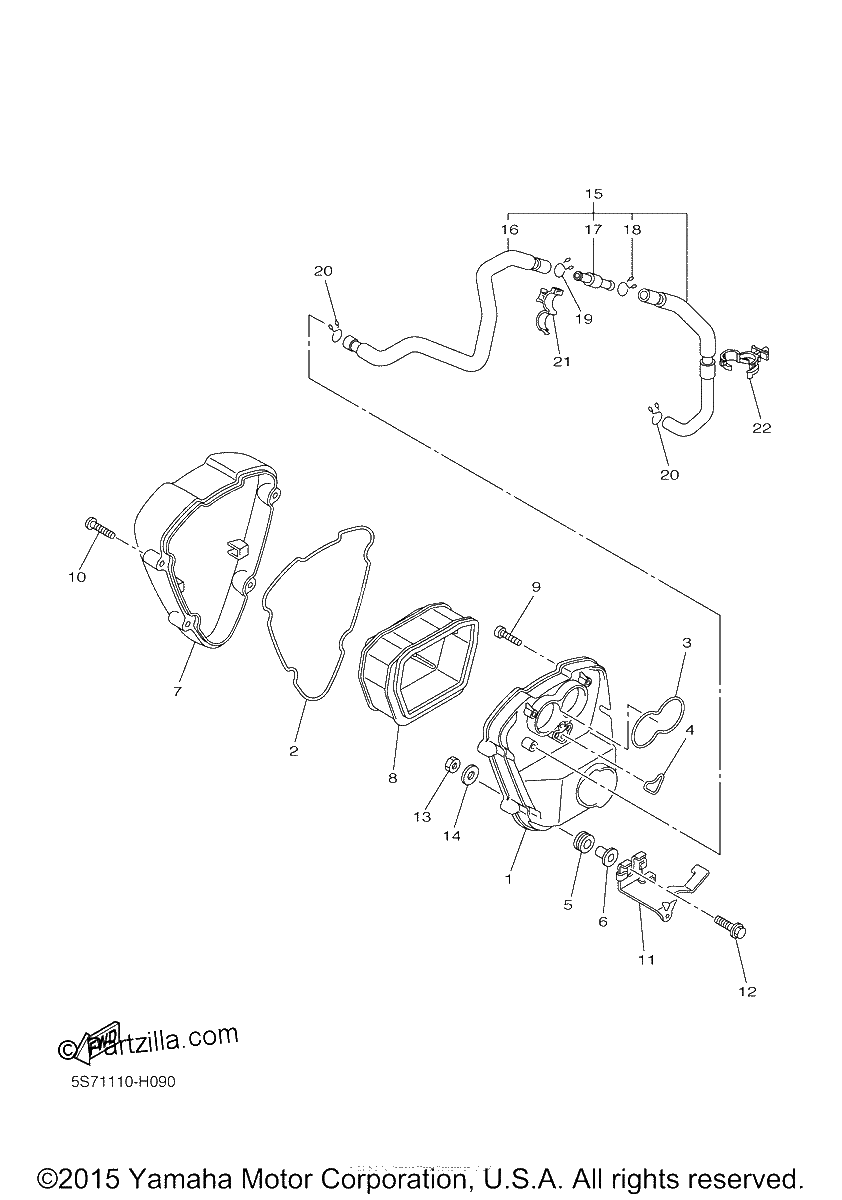

Diagrama de INTAKE 2

Repuestos

#0
3D8-14421-01-00
CASE, AIR CLEANER 2
$230.45¢115 225
1
#1
5S7-14411-00-00
CASE, AIR CLEANER 1
$104.63¢52 313
1
#2
4GA-14452-00-00
SEAL
$20.31¢10 156
1
#3
3D8-14457-00-00
SEAL
$7.08¢3 538
1
#4
3D8-14462-00-00
SEAL
$7.08¢3 538
1
#5
90480-11006-00
GROMMET
$3.50¢1 750
1
#6
90387-087L0-00
COLLAR
$7.35¢3 675
1
#7
1GP-14421-02-00
CASE, AIR CLEANER 2
$262.31¢131 156
1
#8
3D8-14451-00-00
ELEMENT, AIR CLEANER
$34.98¢17 488
1
#9
91312-05025-00
BOLT
$7.43¢3 713
1
#10
90111-05024-00
BOLT, HEX. SOCKET BUTTON
$4.25¢2 125
1
#11
3D8-14498-10-00
STAY 1
$25.91¢12 956
1
#12
97017-06020-00
BOLT, HEXAGON (replaces 97027-06020-00)
$3.02¢1 513
1
#13
95702-06500-00
NUT, FLANGE
$2.44¢1 219
1
#14
90201-06088-00
WASHER, PLATE
$7.46¢3 731
1
#15
5S7-11166-00-00
PIPE, BREATHER 1
$187.29¢93 644
1
#16
5S7-1113J-00-00
PIPE 3
$52.06¢26 031
1
#17
6S5-12594-00-00
JOINT, HOSE 4
$6.24¢3 119
1
#18
90467-170A2-00
CLIP
$2.40¢1 200
1
#19
90467-170A2-00
CLIP
$2.40¢1 200
1
#20
90467-15M14-00
CLIP
$4.07¢2 037
1
#21
90464-20191-00
Clamp
$8.76¢4 381
1
#22
90464-18011-00
CLAMP
$3.90¢1 950
1
