HEADLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

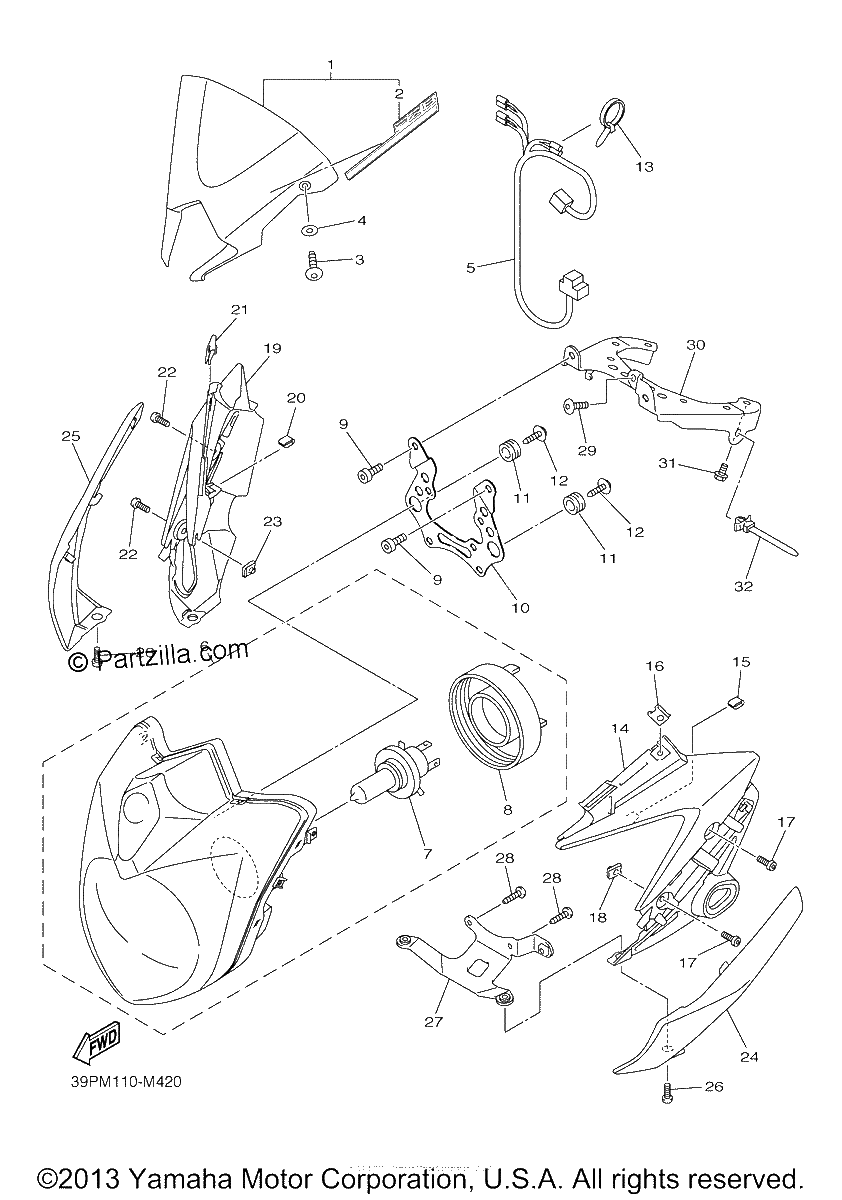

Diagrama de HEADLIGHT

Repuestos

#1
39P-Y835A-00-P5
COVER, METER | MNM3
$184.51¢92 256
1
#2
39P-283G4-00-00
GRAPHIC, 1
$25.36¢12 681
1
#3
90167-05076-00
SCREW, TAPPING
$2.11¢1 056
1
#4
90202-05002-00
WASHER, PLATE
$1.04¢519
1
#5
39P-82509-10-00
WIRE, SUB LEAD
$54.47¢27 237
1
#6
39P-84300-11-00
HEADLIGHT ASSY
$459.47¢229 737
1
#7
5V2-84314-00-XX
BULB (12V 60/55W HALOGEN) | (H4) HALOGEN
$90.15¢45 075
1
#8
5JW-84397-00-00
COVER, SOCKET
$31.15¢15 575
1
#9
91317-06010-00
BOLT (4MY) (replaces 90110-06065-00)
$8.24¢4 119
1
#10
20S-28396-00-00
PLATE 1
$24.01¢12 006
1
#11
90480-14004-00
GROMMET
$8.92¢4 462
1
#12
90164-05001-00
SCREW, TAPPING
$7.48¢3 738
1
#13
90465-10098-00
CLAMP
$2.78¢1 388
1
#14
39P-23121-00-00
COVER, UPPER 1
$90.23¢45 113
1
#15
20S-28376-00-00
TRIM
$3.57¢1 787
1
#16
90183-05042-00
NUT, SPRING
$1.25¢625
1
#17
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$7.48¢3 738
1
#18
90183-06069-00
NUT, SPRING
$7.26¢3 631
1
#19
39P-23131-00-00
COVER, UPPER 2
$90.23¢45 113
1
#20
20S-28376-00-00
TRIM
$3.57¢1 787
1
#21
90183-05042-00
NUT, SPRING
$1.25¢625
1
#22
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$7.48¢3 738
1
#23
90183-06069-00
NUT, SPRING
$7.26¢3 631
1
#24
39P-23122-00-P3
COVER, OUTER 1 | MBL2
$220.74¢110 369
1
#25
39P-23132-00-P3
COVER, OUTER 2 | MBL2
$220.74¢110 369
1
#26
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$7.48¢3 738
1
#27
39P-8431R-00-00
STAY, SETTING
$66.88¢33 438
1
#28
97702-50016-00
TAPPING SCREW
$2.36¢1 181
1
#29
92012-05012-00
BOLT, BUTTON HEAD
$3.25¢1 625
1
#30
39P-84119-00-00
STAY, HEADLIGHT 2
$67.47¢33 738
1
#31
95817-06012-00
BOLT, FLANGE (replaces 95827-06012-00)
$1.79¢894
1
#32
90464-10112-00
CLAMP
$7.35¢3 675
1
