FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

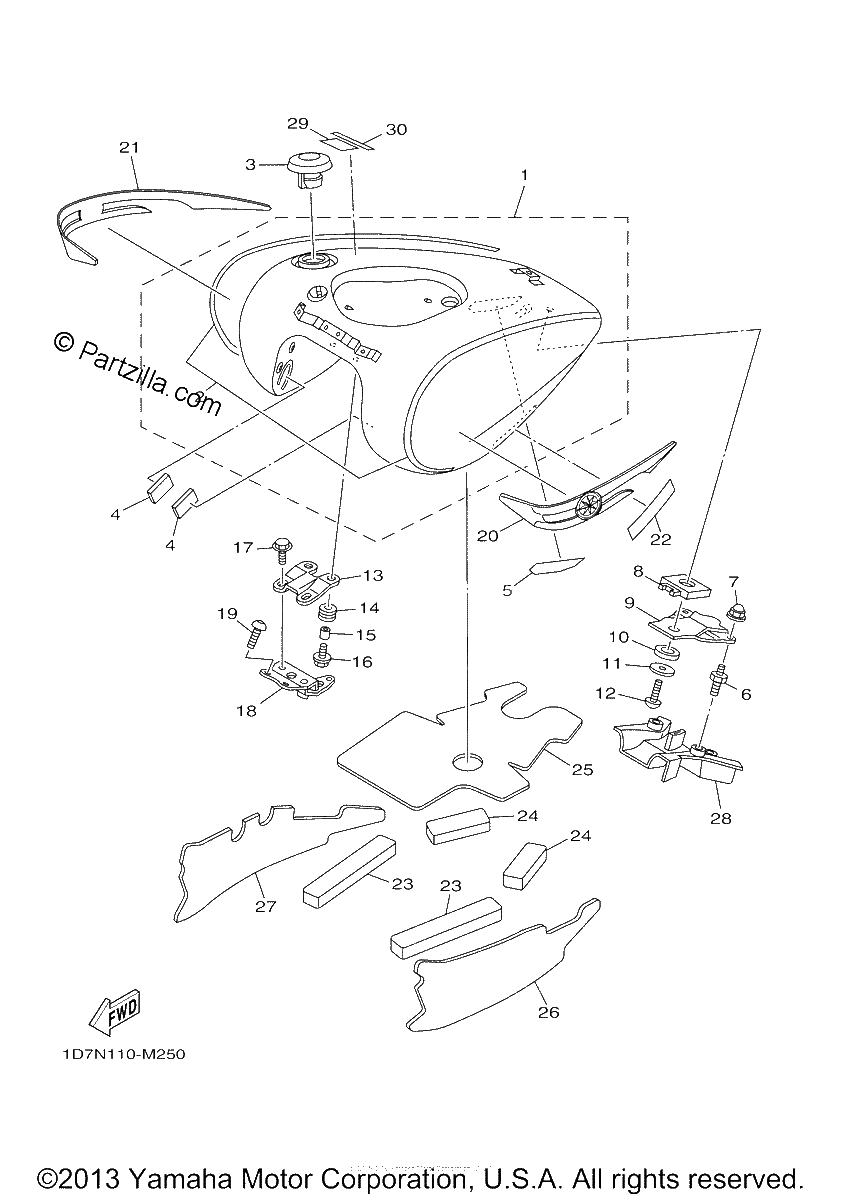

Diagrama de FUEL TANK

Repuestos

#1
1D7-Y2410-00-W6
FUEL TANK COMP. | Use for Color Black Metallic X ( SMX / 0903 )
$1638.74¢819 369
1
#2
2C5-24240-10-00
GRAPHIC SET
$151.16¢75 578
1
#3
4NK-24602-20-00
CAP ASSY
$125.82¢62 911
1
#4
1FK-21746-00-00
DAMPER
$7.31¢3 657
1
#5
1D7-2413X-00-00
PLATE
$9.54¢4 773
1
#6
5PX-24176-01-00
BOLT 1
$17.39¢8 694
1
#7
90176-06055-00
NUT, CROWN
$4.38¢2 191
1
#8
1D7-24182-00-00
DAMPER, LOCATING 2
$19.24¢9 620
1
#9
1D7-2413Y-00-00
BRACKET, TANK FITTING
$17.99¢8 993
1
#10
4TR-24183-00-00
DAMPER, LOCATING 3
$7.28¢3 640
1
#11
90201-06110-00
WASHER, PLATE
$7.14¢3 571
1
#12
92012-06012-00
BOLT, BUTTON HEAD
$2.74¢1 368
1
#13
1D7-24191-01-00
BRACKET, FUEL TANK 1
$14.00¢6 998
1
#14
90480-15483-00
GROMMET
$6.14¢3 070
1
#15
90387-06054-00
COLLAR
$7.67¢3 835
1
#16
90119-06264-00
BOLT, WITH WASHER
$1.69¢845
1
#17
95817-08012-00
BOLT, FLANGE
$4.35¢2 173
1
#18
1D7-24192-00-00
BRACKET, FUEL TANK 2
$31.46¢15 732
1
#19
92017-08025-00
BOLT, BUTTON HEAD
$6.75¢3 375
1
#20
1D7-24161-10-00
EMBLEM 1
$106.94¢53 469
1
#21
1D7-24162-10-00
EMBLEM 2
$95.58¢47 788
1
#22
3TU-28344-00-00
TAPE
$10.02¢5 008
1
#23
1D7-2414N-00-00
DAMPER, PLATE 4
$7.31¢3 657
1
#24
1D7-2414P-00-00
DAMPER, PLATE 5
$1.89¢943
1
#25
1D7-2414K-00-00
DAMPER, PLATE 3
$146.73¢73 364
1
#26
1D7-2414H-00-00
DAMPER, PLATE 1
$61.32¢30 659
1
#27
1D7-2414J-00-00
DAMPER, PLATE 2
$128.17¢64 084
1
#28
1D7-24217-00-00
COVER
$26.76¢13 380
1
#29
5GK-2118K-00-00
LABEL, CAUTION
$5.37¢2 685
1
#30
5PW-2415E-11-00
LABEL, CAUTION
$3.21¢1 604
1
