CRANKCASE COVER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

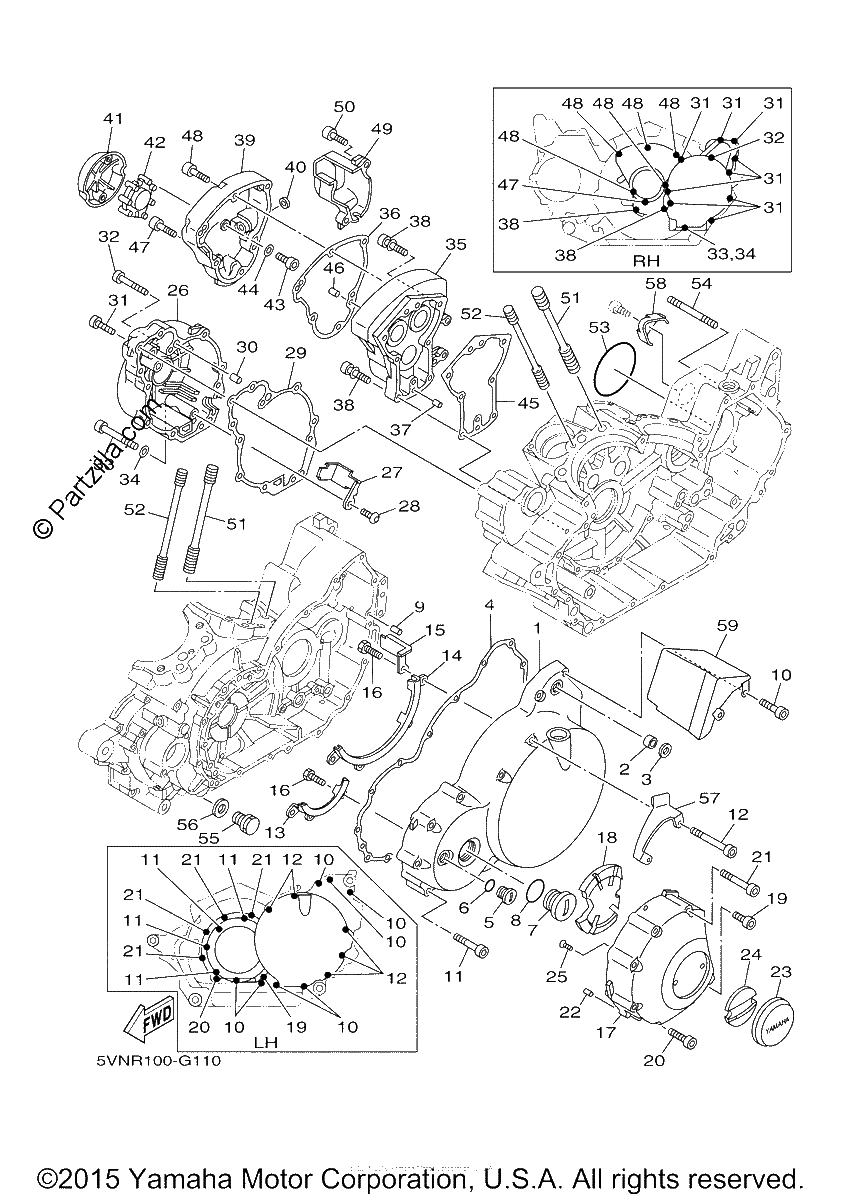

Diagrama de CRANKCASE COVER 1

Repuestos

#1
4WM-15411-00-00
COVER, CRANKCASE 1
$577.98¢288 988
1
#2
93317-11287-00
BEARING
$24.40¢12 200
1
#3
93102-12224-00
OIL SEAL
$9.94¢4 969
1
#4
5VN-15451-00-00
GASKET, CRANKCASE COVER 1 | INCL. IN CLUTCH PLATE KIT
$27.80¢13 900
1
#5
90340-14117-00
PLUG, STRAIGHT SCREW
$13.83¢6 913
1
#6
93210-14369-00
O-Ring
$6.91¢3 456
1
#7
90340-32080-00
PLUG,STRAIGHT SCRW
$31.72¢15 862
1
#8
93210-32172-00
O-Ring
$6.88¢3 438
1
#9
99530-10014-00
PIN, DOWEL
$2.71¢1 356
1
#10
91314-06035-00
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
1
#11
91314-06045-00
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
1
#12
91314-06070-00
BOLT, HEXAGON SOCKET HEAD
$7.94¢3 969
1
#13
4WM-15142-00-00
GUIDE 1
No Disponible
1
#14
4WM-15143-00-00
GUIDE
$27.40¢13 700
1
#15
5YU-15484-00-00
CLAMP 2
$18.45¢9 225
1
#16
90149-06187-00
SCREW
$1.23¢613
1
#17
5PX-15423-00-00
COVER 2
$161.40¢80 700
1
#18
4WM-15326-00-00
DAMPER 2
$34.04¢17 019
1
#19
91314-06025-00
BOLT, HEXAGON SOCKET HEAD
$7.94¢3 969
1
#20
91314-06035-00
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
1
#21
91314-06060-00
BOLT, HEXAGON SOCKET HEAD
$7.94¢3 969
1
#22
91808-16023-00
PIN, DOWEL
$6.71¢3 356
1
#23
4WM-15425-00-00
COVER, GENERATOR 2
$88.22¢44 113
1
#24
4WM-15316-00-00
DAMPER 1
$7.60¢3 800
1
#25
98707-05012-00
SCREW, COUNTERSUNK
$1.46¢731
1
#26
5PX-15421-00-00
COVER, CRANKCASE 2
$225.49¢112 744
1
#27
5VN-15377-00-00
GUIDE, INLET
$17.90¢8 950
1
#28
90149-06187-00
SCREW
$1.23¢613
1
#29
5PX-15461-02-00
GASKET, CRANKCASE COVER 2
$17.90¢8 950
1
#30
99530-10014-00
PIN, DOWEL
$2.71¢1 356
1
#31
91314-06030-00
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
1
#32
91314-06050-00
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
1
#33
91314-06065-00
BOLT, HEXAGON SOCKET HEAD
$7.94¢3 969
1
#34
90430-06014-00
GASKET
$8.25¢4 125
1
#35
5PX-15431-10-00
COVER, CRANKCASE 3
$159.55¢79 775
1
#36
5YU-15462-01-00
GASKET, CRANKCASE COVER 3
$13.56¢6 781
1
#37
93606-10227-00
PIN, DOWEL
$1.80¢900
1
#38
90110-06300-00
BOLT, HEXAGON SOCKET HEAD
$3.52¢1 763
1
#39
4WM-12278-01-00
COVER, DECOMP.
$219.45¢109 725
1
#39
93210-750A1-00
O-RING
$24.55¢12 275
1
#40
93109-08803-00
OIL SEAL
$8.88¢4 438
1
#41
4WM-15427-00-00
COVER, CAP 2
$115.88¢57 938
1
#42
4WM-15335-00-00
DAMPER 3
$30.85¢15 425
1
#43
91317-06014-00
BOLT
$8.39¢4 194
1
#44
90430-06014-00
GASKET
$8.25¢4 125
1
#45
5PX-12286-00-00
GASKET, DECOMPRESSION
$22.59¢11 294
1
#46
93606-10227-00
PIN, DOWEL
$1.80¢900
1
#47
91314-06025-00
BOLT, HEXAGON SOCKET HEAD
$7.94¢3 969
1
#48
91314-06030-00
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
1
#49
5MB-12275-10-00
COVER, DECOMP LEVER
$61.50¢30 750
1
#50
91314-06025-00
BOLT, HEXAGON SOCKET HEAD
$7.94¢3 969
1
#51
90116-12240-00
BOLT, STUD
$16.95¢8 475
1
#52
90116-10344-00
BOLT, STUD
$10.00¢5 000
1
#54
90116-08065-00
BOLT, STUD
$9.63¢4 813
1
#55
90340-14132-00
PLUG, STRAIGHT SCREW
$3.15¢1 575
1
#56
214-11198-01-00
GASKET
$3.23¢1 613
1
#57
4WM-15441-00-00
HOLDER, CLUTCH CABLE
$35.00¢17 500
1
#58
5PX-15413-00-00
COVER
$21.69¢10 844
1
#59
5VN-15470-00-00
AIR DUCT ASSY
$91.55¢45 775
1
