FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

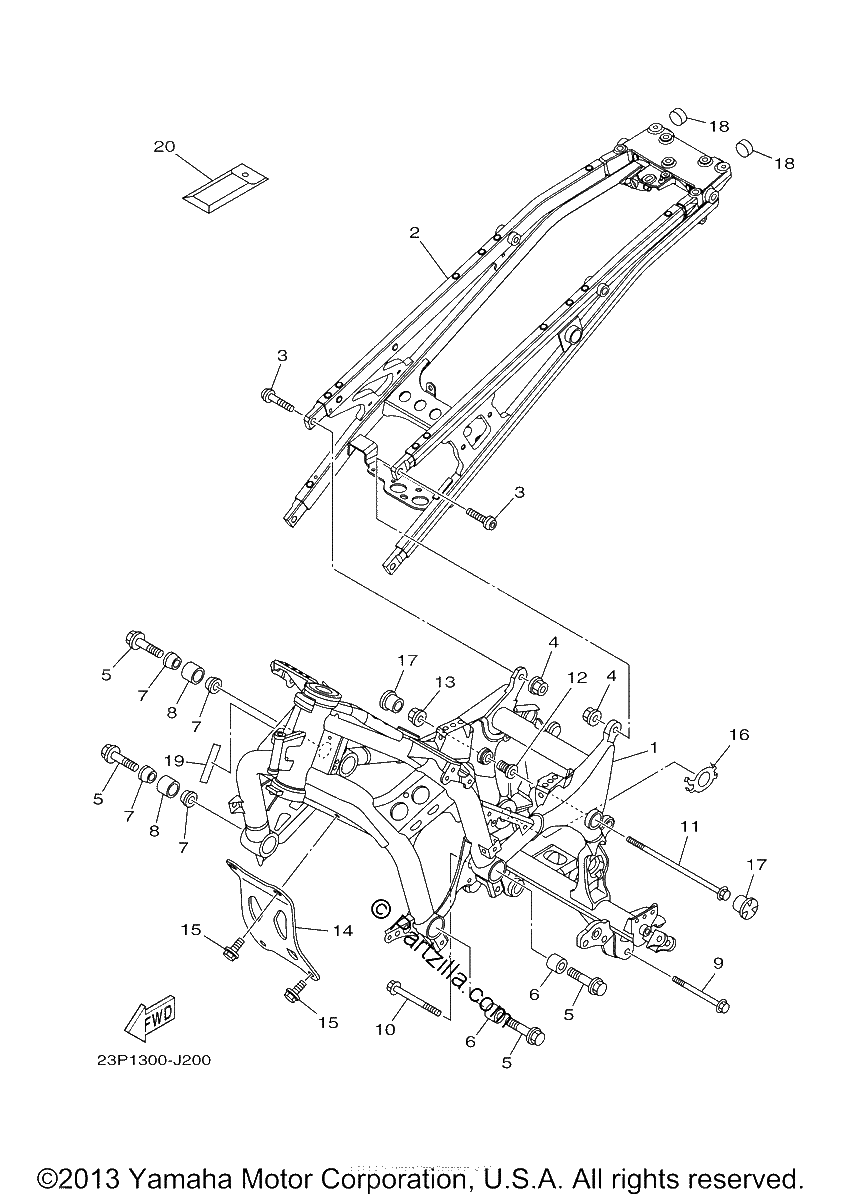

Diagrama de FRAME

Repuestos

#0
23P-21190-00-00
REAR FRAME COMP.
$934.94¢467 469
1
#1
23P-21110-00-00
FRAME COMP.
$2665.69¢1 332 844
1
#2
23P-21190-10-00
REAR FRAME COMP. | UR FOR MNM3
No Disponible
1
#3
90149-10003-00
SCREW
$9.57¢4 784
1
#4
95602-10200-00
NUT, U FLANGE
$2.51¢1 254
1
#5
90105-12077-00
BOLT, FLANGE
$4.86¢2 432
1
#6
23P-21116-00-00
COLLAR
$19.92¢9 959
1
#7
23P-21414-00-00
BOSS, ENGINE MOUNT
$17.42¢8 711
1
#8
23P-21424-00-00
BOSS, ENGINE MOUNT
$30.34¢15 168
1
#9
90105-10075-00
BOLT, FLANGE
$10.87¢5 434
1
#10
90105-10175-00
BOLT, FLANGE
$9.51¢4 755
1
#11
90105-10380-00
BOLT, FLANGE
$16.04¢8 021
1
#12
23P-21495-00-00
BOLT, ENGINE ADJUSTING
$12.33¢6 164
1
#13
90179-10028-00
NUT
$6.20¢3 099
1
#14
23P-21318-00-00
STAY, ENGINE 5
$41.74¢20 872
1
#15
95817-12025-00
BOLT, FLANGE
$6.87¢3 433
1
#16
23P-2191B-00-00
PLATE 1
$6.74¢3 370
1
#17
23P-2111A-00-00
CAP, MAIN PIPE
$3.55¢1 777
1
#18
3YX-2143A-00-00
CAP
$3.43¢1 713
1
#19
3D8-2117G-00-00
PROTECTOR
$6.12¢3 059
1
#20
23P-28100-00-00
TOOL KIT
$56.18¢28 089
1
