TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

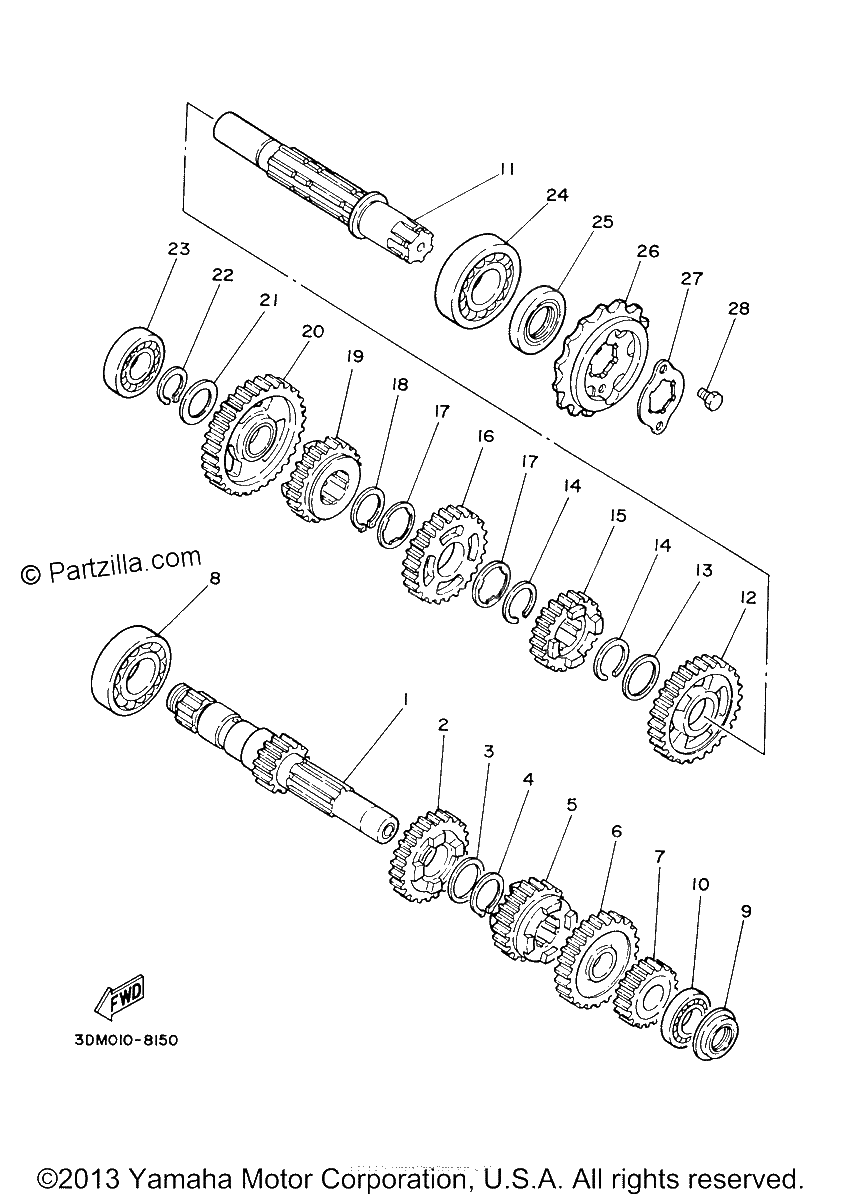

Diagrama de TRANSMISSION

Repuestos

#1
4DN-17411-00-00
AXLE, MAIN (14T)
$134.74¢67 369
1
#2
3Y1-17141-01-00
GEAR, 4TH PINION (26T)
$46.84¢23 419
1
#3
90201-22793-00
WASHER, PLATE
$7.09¢3 544
1
#4
93410-22039-00
CIRCLIP,S-TYPE
$7.34¢3 669
1
#5
3Y1-17131-01-00
GEAR, 3RD PINION (23T)
$65.85¢32 925
1
#6
3Y1-17151-01-00
GEAR, 5TH PINION (28T)
$53.96¢26 981
1
#7
3Y1-17121-01-YX
GEAR, 2ND PINION (19T)
$29.34¢14 669
1
#8
93306-20541-00
BEARING (B6205)
$40.60¢20 300
1
#9
93101-17093-00
OIL SEAL
$15.60¢7 800
1
#10
93306-00315-00
BEARING
$33.26¢16 631
1
#11
3Y1-17402-00-00
DRIVE AXLE ASSY
$224.07¢112 038
1
#12
3Y1-17221-02-00
GEAR, 2ND WHEEL (32T)
$64.74¢32 369
1
#13
90201-253K0-00
WASHER, PLATE (T=1.0)
$7.35¢3 675
1
#14
93440-25084-00
CIRCLIP
$4.86¢2 431
1
#15
4DN-17251-00-00
GEAR, 5TH WHEEL
$64.13¢32 063
1
#16
3Y1-17231-02-00
GEAR, 3RD WHEEL (29T)
$81.29¢40 644
1
#17
90209-22191-00
WASHER
$6.91¢3 456
1
#18
99009-25400-00
CIRCLIP
$7.94¢3 969
1
#19
4DN-17241-00-00
GEAR, 4TH WHEEL
No Disponible
1
#20
3Y1-17211-00-00
GEAR, 1ST WHEEL (37T)
$69.35¢34 675
1
#21
90201-20276-00
WASHER, PLATE (T=1.0)
$7.81¢3 906
1
#22
99009-20400-00
Circlip
$7.34¢3 669
1
#23
93306-00426-00
BEARING
$43.60¢21 800
1
#24
93306-30525-00
BEARING
$64.56¢32 281
1
#25
93102-25208-00
OIL SEAL
$13.75¢6 875
1
#26
93834-16100-00
SPROCKET, DRIVE 16T (3Y11746160
$20.23¢10 113
1
#27
3Y1-17456-00-00
HOLDER, SPROCKET
$7.60¢3 800
1
#28
97017-06010-00
BOLT
$3.11¢1 556
1
