ELECTRICAL 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

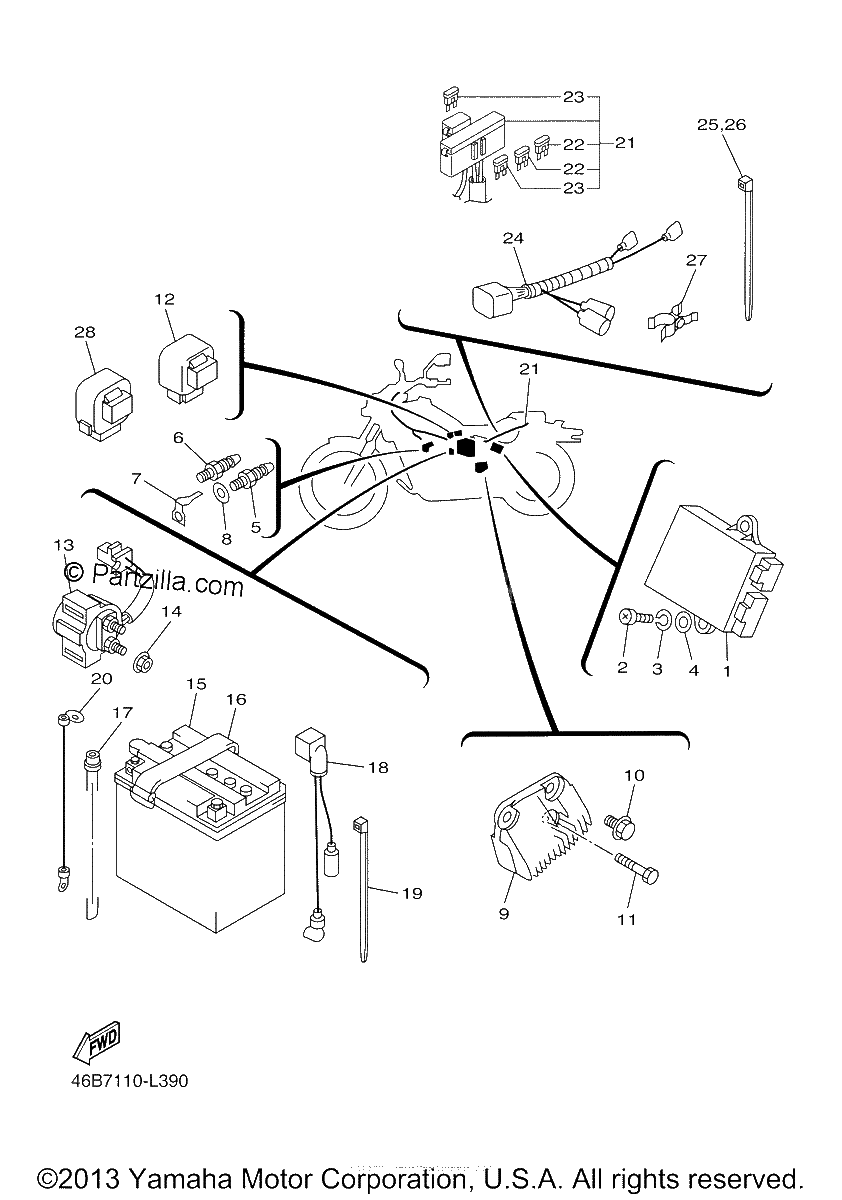

Diagrama de ELECTRICAL 1

Repuestos

#0
5FU-83790-00-00
HEATER ASSY (15W)
$32.84¢16 419
1
#0
46B-82590-00-00
WIRE HARNESS ASSY | U49
$279.79¢139 894
1
#1
2UJ-82305-00-00
IGNITOR UNIT ASSY
$581.24¢290 619
1
#2
98507-06016-00
SCREW, PAN HEAD
$2.90¢1 450
1
#3
92907-06100-00
WASHER, SPRING
$1.23¢613
1
#4
92907-06600-00
WASHER, PLATE (6TA)
$0.96¢481
1
#5
5FU-83790-20-00
HEATER ASSY (30W)
$52.21¢26 106
1
#6
5FU-83790-20-00
HEATER ASSY (30W)
$52.21¢26 106
1
#7
5FU-82103-00-00
TERMINAL 1
$7.86¢3 931
1
#8
90201-08016-00
WASHER, PLATE | FOR CALIFORNIA
$7.43¢3 713
1
#9
3DM-81960-01-00
RECTIFIER REGULATOR ASSY
$268.68¢134 338
1
#10
90119-06242-00
BOLT, WITH WASHER
$6.99¢3 494
1
#11
97017-06030-00
BOLT
$3.57¢1 787
1
#12
2UJ-81950-00-00
RELAY ASSY (2UJ-00)
$70.70¢35 350
1
#13
36Y-81940-01-00
STARTER RELAY ASSY (MS5D-201)
$177.46¢88 731
1
#14
95707-06500-00
NUT, FLANGE
$0.94¢469
1
#15
CB1-0LA20-00-00
CB10L-A2 GS BATTERY
$128.94¢64 469
1
#16
118-82131-00-00
BAND, BATTERY
$23.64¢11 819
1
#17
90445-08719-00
HOSE
No Disponible
1
#18
2UJ-82115-01-00
WIRE, PLUS LEAD
$29.15¢14 575
1
#19
1UA-82591-00-00
BAND
$4.91¢2 456
1
#20
2UJ-82116-00-00
WIRE, MINUS LEAD
$14.81¢7 406
1
#21
3BG-82590-30-00
WIRE HARNESS ASSY | FOR CALIFORNIA
$250.93¢125 463
1
#22
67F-82151-40-00
FUSE (10A)
$7.75¢3 875
1
#23
5JJ-82151-20-00
FUSE (20A-BL)
$7.63¢3 813
1
#24
2UJ-82509-01-00
WIRE, SUB LEAD
$18.60¢9 300
1
#25
1UA-82591-00-00
BAND
$4.91¢2 456
1
#26
1UA-82591-00-00
BAND
$4.91¢2 456
1
#27
90464-16119-00
CLAMP | FOR CALIFORNIA
$3.34¢1 669
1
#28
3GM-83350-01-00
FLASHER RELAY ASSY
$94.49¢47 244
1
