FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

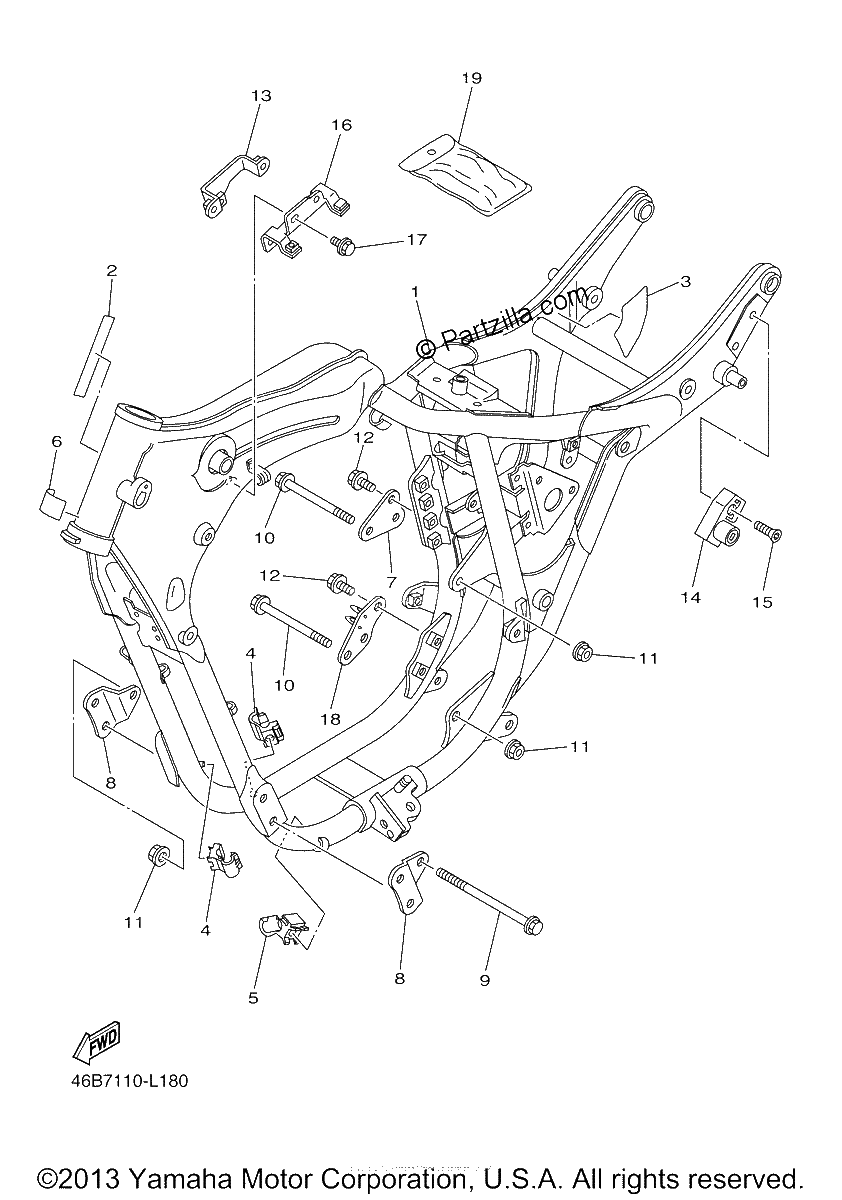

Diagrama de FRAME

Repuestos

#1
2UJ-21110-20-33
Frame Comp YB
No Disponible
1
#2
3HA-24141-00-00
PROTECTOR, FUEL TANK
$13.71¢6 856
1
#3
46B-2139X-00-00
DAMPER
$4.35¢2 175
1
#4
90464-05188-00
CLAMP
$3.65¢1 825
1
#5
90464-10190-00
CLAMP
$8.64¢4 319
1
#6
19D-21732-00-00
SEAL 1
$4.24¢2 119
1
#7
2UJ-21318-01-00
STAY, ENGINE 4
$6.55¢3 275
1
#8
2UJ-21315-00-00
STAY, ENGINE 1
$18.26¢9 131
1
#9
95814-08150-00
BOLT, FLANGE
$5.55¢2 775
1
#10
95814-08110-00
BOLT, FLANGE (replaces 95812-08110-00)
$6.97¢3 488
1
#11
90179-08491-00
NUT (replaces 90179-08820-00)
$2.58¢1 288
1
#12
95817-08016-00
BOLT, FLANGE
$4.91¢2 456
1
#13
2UJ-21243-00-00
PLATE, BRIDGE
$10.22¢5 113
1
#14
26H-21308-01-00
HELMET HANGER ASSY
$92.09¢46 044
1
#15
90149-06154-00
SCREW,SPEC'L SHAPE (replaces 90151-06018-00)
$8.24¢4 119
1
#16
2UJ-2135Y-00-00
BRACKET, IGNITION COIL
$29.34¢14 669
1
#17
95817-06012-00
BOLT, FLANGE (replaces 95827-06012-00)
$1.79¢894
1
#18
2UJ-21319-00-00
STAY, ENGINE 6
$16.40¢8 200
1
#19
2UJ-28100-00-00
TOOL KIT
$64.13¢32 063
1
