AUDIO EQUIPMENT 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

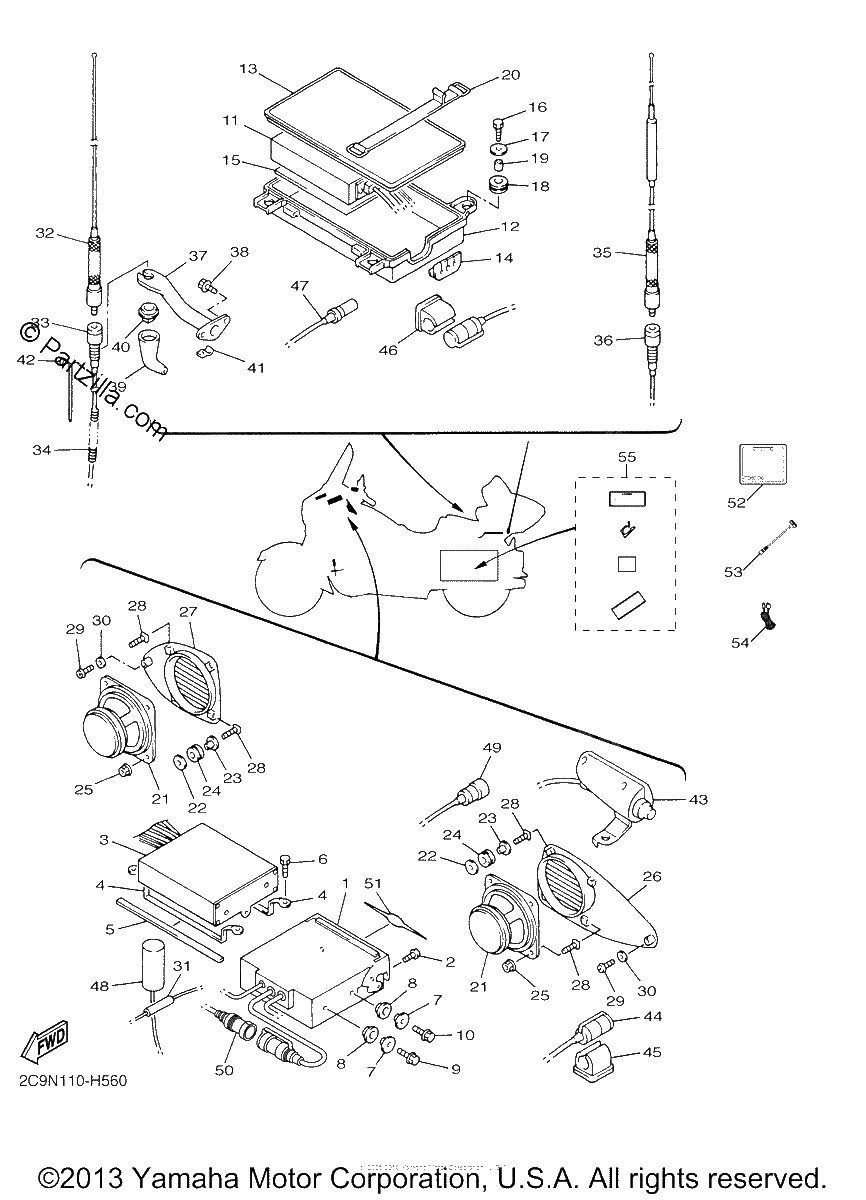

Diagrama de AUDIO EQUIPMENT 1

Repuestos

#1
4XY-88150-00-PB
CASSETTE DECK ASSY | DBNM8
No Disponible
1
#2
98517-04012-00
SCREW, PAN HEAD
$3.58¢1 788
1
#3
4XY-88132-01-00
AMP. POWER
$2424.19¢1 212 094
1
#4
4XY-88114-00-00
BRACKET, RADIO
$17.46¢8 728
1
#5
4XY-88149-00-00
DAMPER
$2.16¢1 081
1
#6
97027-05010-00
BOLT
$6.36¢3 180
1
#7
90387-06024-00
Collar
$9.97¢4 985
1
#8
90480-14429-00
GROMMET
$6.43¢3 214
1
#9
95027-06014-00
BOLT, FLANGE
$0.84¢420
1
#10
95024-06012-00
Bolt, Flange
$4.02¢2 012
1
#11
4XY-88182-10-00
BLACK BOX, CB
$1470.84¢735 419
1
#12
4XY-8818B-00-00
COVER 1
$37.72¢18 860
1
#13
4XY-8818C-00-00
COVER 2
No Disponible
1
#14
4XY-8818E-00-00
GASKET, CB
$12.63¢6 313
1
#15
4XY-8818D-00-00
SEAT 1
$4.37¢2 185
1
#16
97017-06025-00
BOLT,HEXAGON (replaces 97007-06025-00)
$3.27¢1 633
1
#17
90201-06380-00
WASHER PLAIN
$0.63¢316
1
#18
90480-14450-00
GROMMET
$12.75¢6 377
1
#19
90387-07020-00
COLLAR
$6.75¢3 375
1
#20
4J2-82131-01-00
BAND, BATTERY
$26.46¢13 231
1
#21
4XY-88161-00-00
SPEAKER 1
$147.61¢73 807
1
#22
90201-061A5-00
WASHER, PLATE
$6.43¢3 214
1
#23
90387-06737-00
COLLAR
$7.24¢3 622
1
#24
90480-13163-00
GROMMET | FOR CALIFORNIA
$6.51¢3 254
1
#25
95707-05500-00
NUT, FLANGE
$6.76¢3 381
1
#26
4XY-88163-00-PB
GRILLE, SPEAKER 1 | DBNM8
$220.87¢110 434
1
#27
4XY-88173-00-PB
GRILLE, SPEAKER 2 | DBNM8
$220.87¢110 434
1
#28
4XY-28333-00-00
BOLT
$1.36¢678
1
#29
97707-40012-00
SCREW, TAPPING
$7.31¢3 657
1
#30
92907-04600-00
WASHER
$1.35¢673
1
#31
4XY-88188-00-00
FILTER, NOISE
$80.80¢40 400
1
#32
4XY-88141-10-00
POLE, ANTENNA (AM/FM)
$189.28¢94 639
1
#33
4XY-88146-10-00
CABLE 1
$208.97¢104 483
1
#34
4XY-82139-00-00
TUBE
$8.42¢4 209
1
#35
4XY-88143-10-00
POLE, ANTENNA (CB)
$339.04¢169 521
1
#36
4XY-88147-10-00
CABLE 2
$142.44¢71 220
1
#37
4XY-88144-01-00
BRACKET, ANTENNA
$121.99¢60 996
1
#38
95024-06012-00
Bolt, Flange
$4.02¢2 012
1
#39
1BM-H259L-V2-00
WIRE HARNESS ASSY 1 | IPOD
No Disponible
1
#39
4XY-88145-00-00
COVER
$16.51¢8 257
1
#40
4XY-8814A-00-00
SPACER
$10.43¢5 215
1
#41
90464-05188-00
CLAMP
$3.36¢1 679
1
#42
90464-15195-00
CLAMP
$3.04¢1 518
1
#43
4XY-88168-00-00
REMOTE CONTROL 1
$1171.84¢585 919
1
#44
4XY-88196-00-00
CORD, HEAD SET 1
$126.74¢63 371
1
#45
4XY-88195-01-00
HOLDER, CONNECTOR
$12.37¢6 187
1
#46
4XY-88195-01-00
HOLDER, CONNECTOR
$12.37¢6 187
1
#47
4XY-88186-01-00
CORD, CB
$256.22¢128 110
1
#48
1NL-81965-01-00
CONDENSER, SMOOTHING
$113.11¢56 557
1
#49
4XY-88192-01-00
CORD, EXTENSION
$126.74¢63 371
1
#50
STR-CDCHG-11-00
CABLE, INTERFACE
No Disponible
1
#51
4XY-2839B-10-00
EMBLEM 3D
$78.46¢39 232
1
#52
1BM-H81C0-V2-00
AUDIO SET KIT - IPOD | IPOD
No Disponible
1
#54
1BM-H8146-V0-00
CABLE 8-PIN DIN TO 30-PIN CONNE | IPOD
No Disponible
1
#55
1BM-H81E1-V0-00
AUDIO SET HARDWARE KIT | INCL; WARNING LABEL, HOLDER, ALCOHOL PAD AND TAPE
No Disponible
1
