COWLING 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

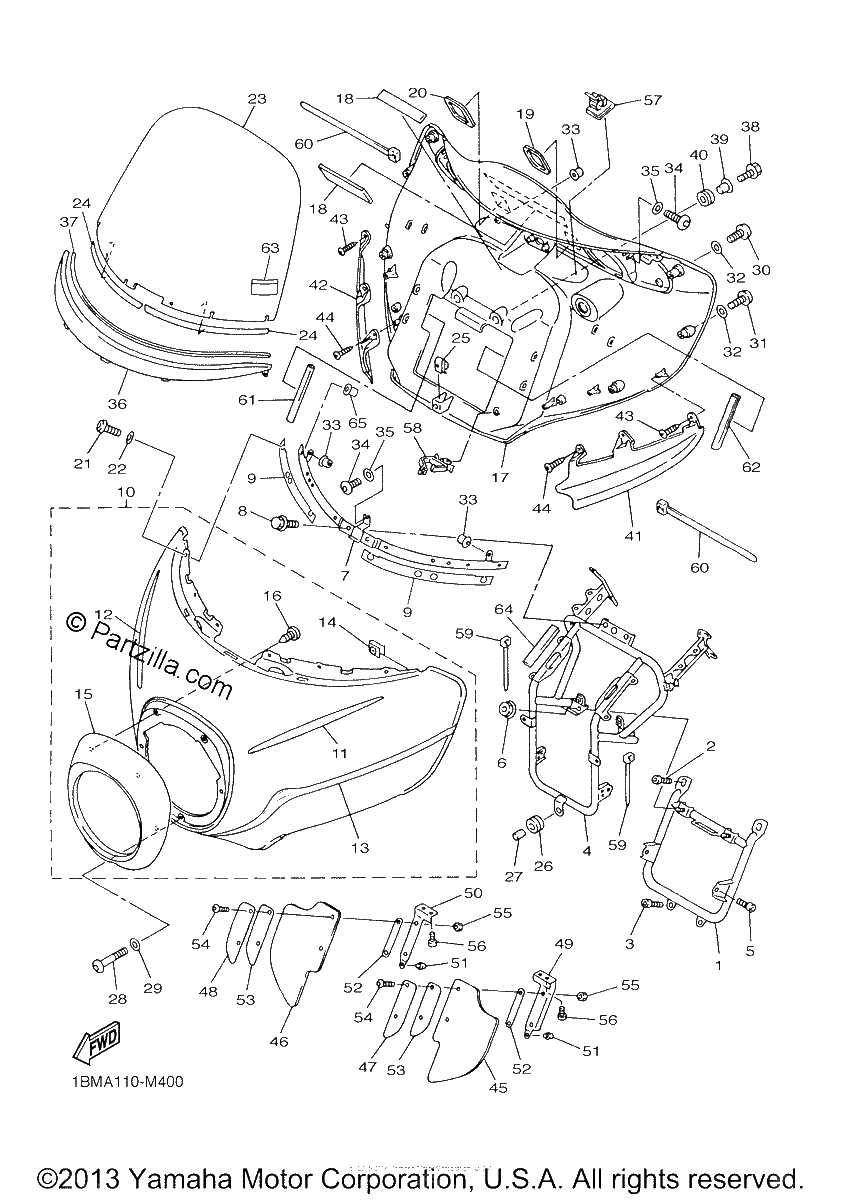

Diagrama de COWLING 1

Repuestos

#1
4XY-2831R-00-00
STAY, MAIN 1
$194.04¢97 020
1
#2
92017-10030-00
BOLT, BUTTON HEAD
$5.52¢2 760
1
#3
91317-08016-00
BOLT (replaces 90110-08053-00)
$6.75¢3 375
1
#4
4XY-28356-00-00
STAY 1
$380.74¢190 371
1
#5
91317-08014-00
BOLT
$5.75¢2 875
1
#6
95707-08500-00
NUT, FLANGE
$1.64¢822
1
#7
4XY-28357-10-00
STAY 2
$79.68¢39 842
1
#8
95817-06012-00
BOLT, FLANGE (replaces 95827-06012-00)
$1.64¢822
1
#9
4XY-28372-10-00
DAMPER
$4.97¢2 484
1
#10
4XY-Y283G-M0-4Y
BODY, FRONT UPPER 1 | Use for Color DARK BLUISH GRAYMETALLIC 8 ( DBNM8 / 0919 )
No Disponible
1
#11
4XY-2834G-00-00
MOLE 5
$81.01¢40 503
1
#12
4XY-2834H-00-00
MOLE 6
$60.88¢30 440
1
#13
2C9-28390-70-00
GRAPHIC SET, COWLING
$152.27¢76 136
1
#14
90183-051A0-00
NUT, SPRING
$2.92¢1 461
1
#15
4XY-2835A-00-00
RIM, HEADLIGHT
$274.18¢137 092
1
#16
97707-40014-00
SCREW, TAPPING
$6.80¢3 398
1
#17
4XY-28350-00-PA
COWLING ASSY | Use for Color DARK BLUISH GRAYMETALLIC 8 ( DBNM8 / 0919 )
$1145.39¢572 694
1
#18
1AE-2834E-00-00
DAMPER 3
$6.99¢3 496
1
#19
4XY-2834F-00-00
DAMPER
$7.07¢3 536
1
#20
4XY-28267-00-00
DAMPER 5
$6.12¢3 059
1
#21
92017-05025-00
BOLT, BUTTON HEAD
$5.96¢2 978
1
#22
90201-057H5-00
WASHER, PLATE
$3.29¢1 644
1
#23
4XY-2837U-01-00
SCREEN
$730.01¢365 004
1
#24
4XY-28307-00-00
SEAL
$38.58¢19 291
1
#25
90183-06023-00
NUT,SPRING
$8.14¢4 071
1
#26
90480-12529-00
GROMMET
$1.92¢960
1
#27
90387-067N5-00
COLLAR
$5.66¢2 829
1
#28
92014-06050-00
BOLT, BUTTON HEAD
$2.44¢1 219
1
#29
90202-06007-00
WASHER, PLATE
$2.64¢1 322
1
#30
92014-05035-00
BOLT, BUTTON HEAD
$1.89¢943
1
#31
92014-05025-00
BOLT, BUTTON HEAD
$7.70¢3 852
1
#32
90202-05088-00
WASHER, PLATE
$6.70¢3 352
1
#33
90179-05523-00
NUT
$6.23¢3 117
1
#34
92017-05012-00
BOLT,BUTTON
$2.93¢1 466
1
#35
90201-057H5-00
WASHER, PLATE
$3.29¢1 644
1
#36
4XY-28345-00-00
MOLE 1
$276.68¢138 339
1
#37
4XY-28371-00-00
DAMPER
$4.69¢2 346
1
#38
95817-06020-00
BOLT, FLANGE (replaces 95802-06020-00)
$3.05¢1 524
1
#39
4XY-2837K-00-00
DAMPER 6
$11.13¢5 566
1
#39
90387-067K8-00
COLLAR
$5.69¢2 846
1
#40
90480-16233-00
GROMMET
$7.45¢3 726
1
#41
4XY-2834V-00-00
PROTECTOR 1
$142.15¢71 076
1
#42
4XY-2834W-00-00
PROTECTOR 2
$142.15¢71 076
1
#43
97707-50014-00
SCREW, TRUSS HEAD TAPPING
$6.76¢3 381
1
#44
97707-60016-00
SCREW, TAPPING
$1.15¢575
1
#45
4XY-2835U-00-00
PANEL 1
$68.01¢34 006
1
#46
4XY-2835V-00-00
PANEL 2
$68.01¢34 006
1
#47
4XY-28396-00-00
PLATE 1
$162.31¢81 155
1
#48
4XY-28397-00-00
PLATE 2
$50.19¢25 093
1
#49
4XY-2836A-01-00
BRACKET 1
$22.18¢11 092
1
#50
4XY-2836E-01-00
BRACKET 2
$22.22¢11 109
1
#51
5A8-21639-00-00
DAMPER 2
$8.94¢4 468
1
#52
4XY-2837J-00-00
DAMPER 5
$7.31¢3 657
1
#54
92014-06016-00
BOLT, BUTTON HEAD (replaces 90111-06008-00)
$6.75¢3 375
1
#55
95380-06700-00
NUT
$6.75¢3 375
1
#56
92014-06010-00
BOLT, BUTTON HEAD
$5.78¢2 892
1
#57
90464-62085-00
CLAMP
$6.59¢3 295
1
#58
90464-16021-00
CLAMP
$12.30¢6 152
1
#59
1UA-82591-00-00
BAND
$4.52¢2 260
1
#60
90464-20258-00
Clamp
$4.55¢2 277
1
#61
4XY-28347-00-00
MOLE 3
$7.64¢3 818
1
#62
1HX-24188-01-00
MOLD, FUEL TANK
$19.53¢9 763
1
#63
4B5-2815K-00-00
LABEL, NOTICE WINDSHIELD 1
$8.21¢4 105
1
#64
4XY-88158-00-00
DAMPER
$0.89¢443
1
#65
90179-05523-00
NUT
$6.23¢3 117
1
