ELECTRICAL 3

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

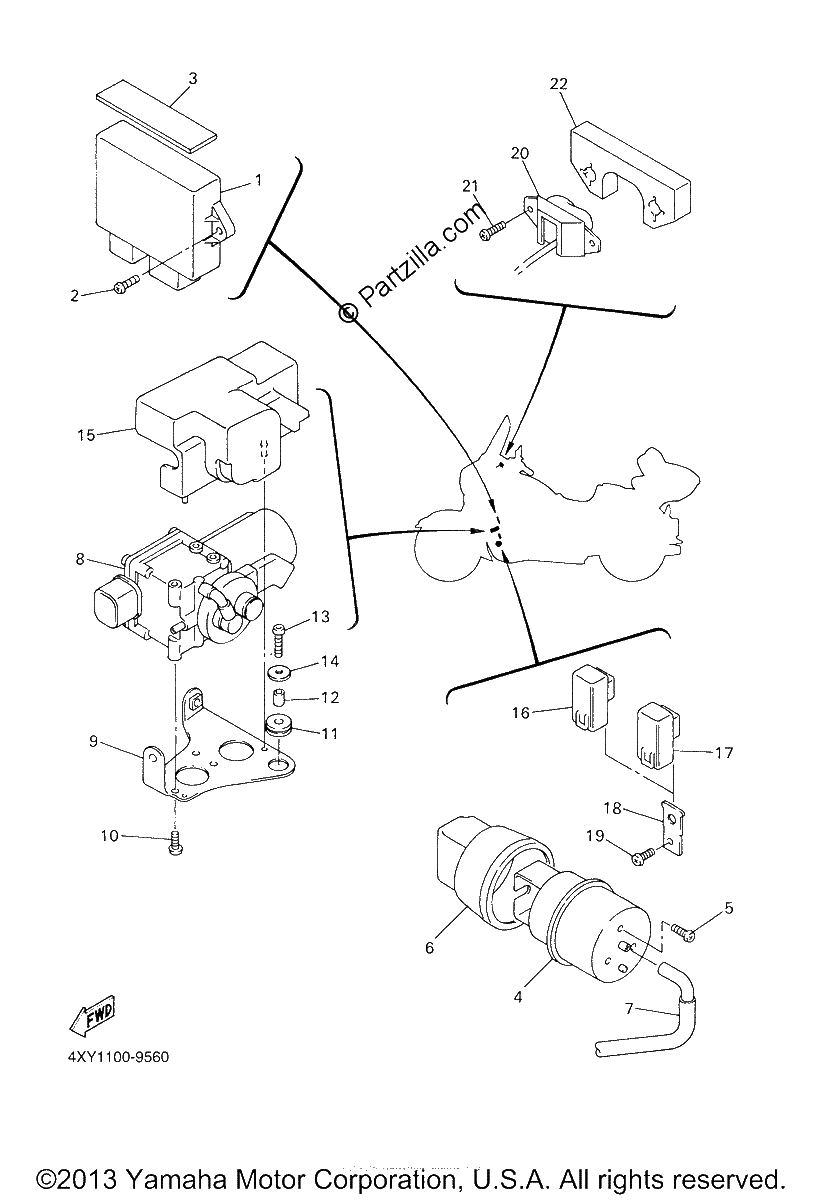

Diagrama de ELECTRICAL 3

Repuestos

#1
4XY-85830-01-00
CONTROL UNIT ASSY
$481.04¢240 522
1
#2
97707-60016-00
SCREW, TAPPING
$1.15¢575
1
#3
4XY-2834E-00-00
DAMPER 3
$3.48¢1 742
1
#4
4XY-85860-00-00
VACUUM ACTUATOR
$121.38¢60 691
1
#5
97707-50016-00
SCREW, TRUSS HEAD TAPPING
$1.58¢788
1
#6
4XY-85825-00-00
COVER, WIRE
$14.54¢7 268
1
#7
4XY-2840B-00-00
PIPE 1
$28.84¢14 421
1
#8
4XY-85861-00-00
PUMP, VACUUM
$761.29¢380 644
1
#9
4XY-28321-00-00
STAY 1
$21.08¢10 540
1
#10
97707-50014-00
SCREW, TRUSS HEAD TAPPING
$6.76¢3 381
1
#11
90480-12475-00
GROMMET
$7.30¢3 651
1
#12
90387-06113-00
COLLAR
$11.52¢5 761
1
#13
92017-06020-00
BOLT, BUTTON HEAD
$2.79¢1 397
1
#14
90201-06020-00
WASHER, PLATE (replaces 90201-06058-00)
$6.88¢3 439
1
#15
4XY-28365-00-00
COVER
$26.96¢13 478
1
#16
1UY-81950-92-00
RELAY ASSY (1UY-92)
$75.89¢37 944
1
#17
29U-81950-93-00
RELAY ASSY
$76.36¢38 180
1
#18
1VJ-81953-00-00
STAY, RELAY
No Disponible
1
#19
97707-50014-00
SCREW, TRUSS HEAD TAPPING
$6.76¢3 381
1
#20
4XY-8596A-00-00
AUTO CRUISE SWITCH ASSY
$62.57¢31 286
1
#21
97707-40012-00
SCREW, TAPPING
$7.31¢3 657
1
#22
4XY-82176-00-00
DAMPER
$4.51¢2 254
1
