CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

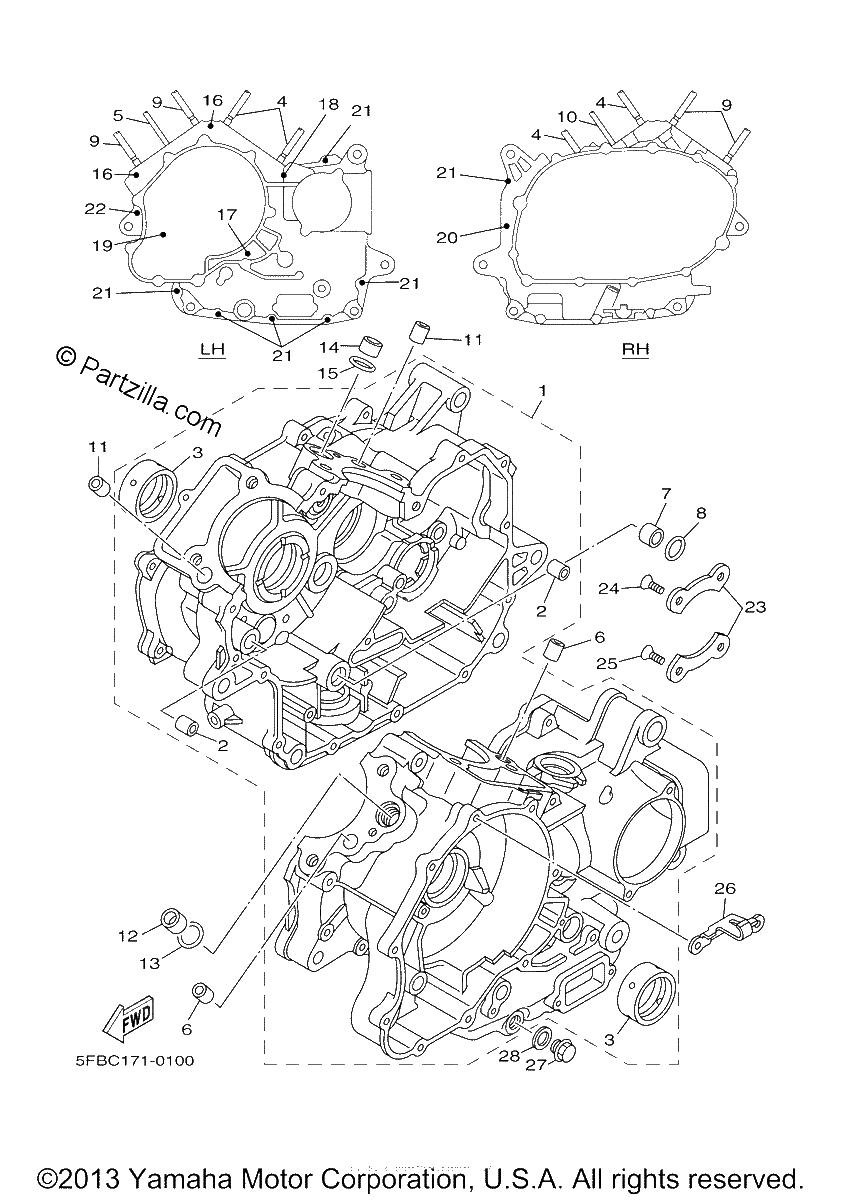

Diagrama de CRANKCASE

Repuestos

#0
22U-11416-90-00
PLANE BEARING, CRANKSHAFT 1 | UR GREEN
$74.85¢37 427
1
#1
4TR-15100-29-00
CRANKCASE ASSY
$993.59¢496 794
1
#2
91815-16017-00
PIN, DOWEL
$7.45¢3 726
1
#3
22U-11416-80-00
PLANE BEARING, CRANKSHAFT 1 | UR BLUE
$48.51¢24 254
1
#4
90116-10611-00
BOLT, STUD
$16.26¢8 131
1
#5
90116-08404-00
BOLT, STUD
$8.76¢4 382
1
#6
99530-14016-00
PIN, DOWEL
$3.51¢1 754
1
#7
90387-16547-00
COLLAR
$9.12¢4 560
1
#8
93210-18322-00
O-RING
$4.98¢2 490
1
#9
90116-10405-00
BOLT, STUD
$17.27¢8 637
1
#10
90116-08404-00
BOLT, STUD
$8.76¢4 382
1
#11
99530-14016-00
PIN, DOWEL
$3.51¢1 754
1
#12
90387-16547-00
COLLAR
$9.12¢4 560
1
#13
93210-18322-00
O-RING
$4.98¢2 490
1
#14
90387-16547-00
COLLAR
$9.12¢4 560
1
#15
93210-18322-00
O-RING
$4.98¢2 490
1
#16
91314-08060-00
BOLT, HEXAGON SOCKET HEAD
$7.42¢3 709
1
#17
90110-08003-00
BOLT, HEXAGON SOCKET HEAD
$4.30¢2 151
1
#18
91314-08100-00
BOLT, HEXAGON SOCKET HEAD
$13.32¢6 658
1
#19
91317-06095-00
BOLT
$4.57¢2 283
1
#20
91380-06045-00
BOLT
$2.54¢1 271
1
#21
91317-06045-00
BOLT
$3.68¢1 840
1
#22
91314-06055-00
BOLT, HEXAGON SOCKET HEAD
$7.45¢3 726
1
#23
11H-15383-02-00
PLATE, BEARING COVER
$12.09¢6 043
1
#24
90151-08022-00
SCREW, COUNTERSUNK
$3.31¢1 656
1
#25
90149-08013-00
SCREW
$6.83¢3 415
1
#26
22U-15441-01-00
HOLDER, CLUTCH CABLE
$10.09¢5 043
1
#27
90340-14132-00
PLUG, STRAIGHT SCREW
$2.90¢1 449
1
#28
214-11198-01-00
GASKET
$2.97¢1 483
1
