STAND FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

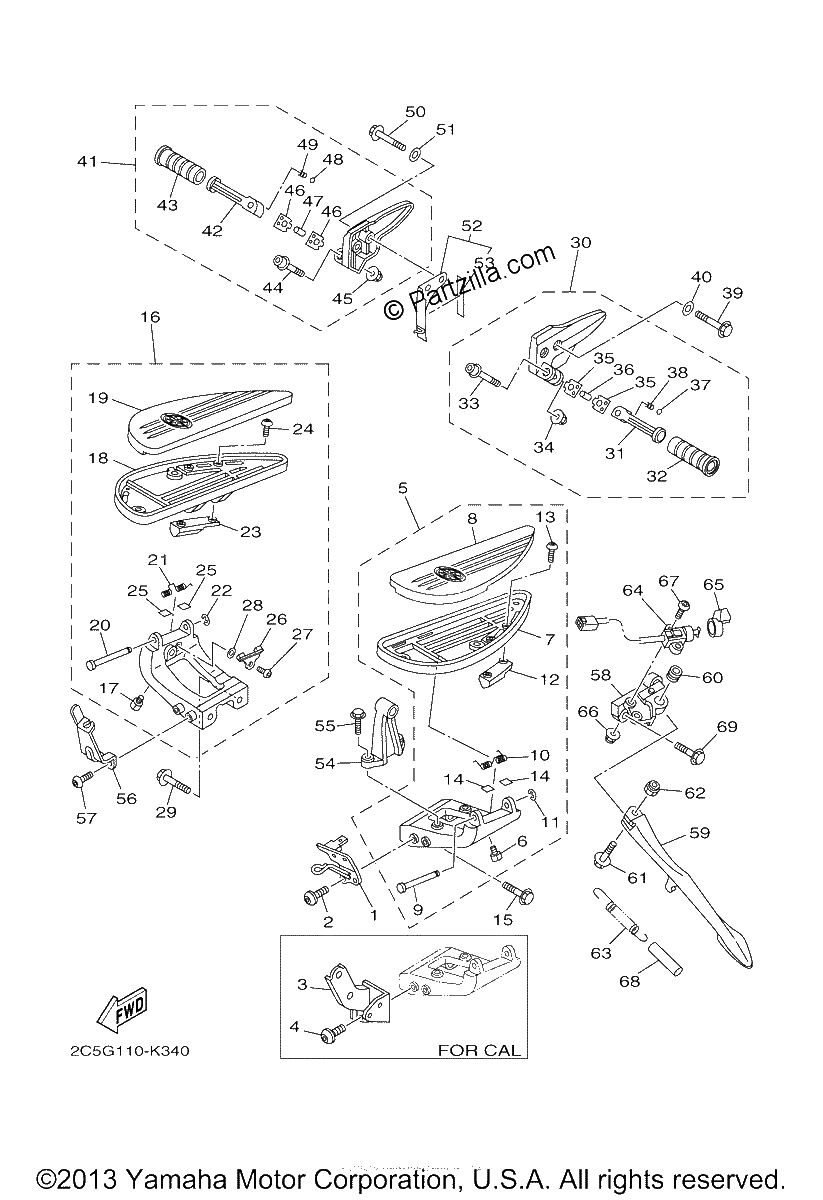

Diagrama de STAND FOOTREST

Repuestos

#1
1D7-2134L-00-00
BRACKET, HORN 2 | FOR U49
$51.55¢25 775
1
#2
90111-06038-00
BOLT, HEX. SOCKET BUTTON
$4.11¢2 056
1
#3
1D7-2742L-00-00
BRACKET 5 | FOR CAL
$64.13¢32 063
1
#4
90111-06038-00
BOLT, HEX. SOCKET BUTTON
$4.11¢2 056
1
#5
1D7-27410-00-00
FRONT FOOTREST ASSY (LEFT)
$502.94¢251 469
1
#6
1D7-27435-09-00
BOLT (replaces 1D7-27435-00-00)
$17.69¢8 844
1
#7
1D7-27451-00-00
FOOTREST
$52.93¢26 463
1
#8
1D7-27413-00-00
COVER, FOOTREST
$54.07¢27 037
1
#9
1D7-27427-00-00
SHAFT
$8.50¢4 250
1
#10
1D7-27426-00-00
SPRING, RETURN
$4.94¢2 469
1
#11
99002-06600-00
CIRCLIP
$1.02¢513
1
#12
1D7-27496-00-00
MOLE 1
$63.15¢31 575
1
#13
92012-06012-00
BOLT, BUTTON HEAD
$2.97¢1 487
1
#14
1D7-27485-00-00
SEAL
$4.60¢2 300
1
#15
95024-10045-00
BOLT, FLANGE
$8.09¢4 044
1
#16
1D7-27420-10-00
FRONT FOOTREST ASSY (RIGHT)
$731.14¢365 569
1
#17
1D7-27435-09-00
BOLT (replaces 1D7-27435-00-00)
$17.69¢8 844
1
#18
1D7-27461-00-00
FOOTREST
$52.93¢26 463
1
#19
1D7-27423-00-00
COVER, FOOTREST
$54.07¢27 037
1
#20
1D7-27427-00-00
SHAFT
$8.50¢4 250
1
#21
1D7-27426-00-00
SPRING, RETURN
$4.94¢2 469
1
#22
99002-06600-00
CIRCLIP
$1.02¢513
1
#23
1D7-27497-00-00
MOLE 2
$63.15¢31 575
1
#24
92012-06012-00
BOLT, BUTTON HEAD
$2.97¢1 487
1
#25
1D7-27485-00-00
SEAL
$4.60¢2 300
1
#26
1D7-27214-00-00
STOPPER
$22.57¢11 288
1
#27
92012-06012-00
BOLT, BUTTON HEAD
$2.97¢1 487
1
#28
92990-06600-00
WASHER, PLATE
$3.40¢1 700
1
#29
95024-10045-00
BOLT, FLANGE
$8.09¢4 044
1
#30
1D7-27430-00-00
REAR FOOTREST ASSY 1
$174.44¢87 219
1
#31
1D7-27431-00-00
FOOTREST, REAR 1
$22.03¢11 013
1
#32
4WM-27433-00-00
COVER, REAR FOOTREST
$21.07¢10 538
1
#33
90109-06016-00
BOLT
$9.24¢4 619
1
#34
95604-06200-00
NUT-U (replaces 95602-06200-00)
$2.80¢1 400
1
#35
1D7-27437-00-00
WASHER, SPECIAL
$4.60¢2 300
1
#36
36Y-83913-01-00
COLLAR, LEVER 1
$10.64¢5 319
1
#37
93501-04011-00
BALL
$7.46¢3 731
1
#38
90501-15001-00
SPRING, COMPRESSION
$1.94¢969
1
#39
90105-10171-00
BOLT, FLANGE
$4.90¢2 450
1
#39
1D7-2174Y-00-00
DAMPER
No Disponible
1
#40
90201-10037-00
WASHER, PLATE
$7.72¢3 863
1
#41
1D7-27440-00-00
REAR FOOTREST ASSY 2
$174.83¢87 413
1
#42
1D7-27441-00-00
FOOTREST, REAR 2
$34.86¢17 431
1
#43
4WM-27433-00-00
COVER, REAR FOOTREST
$21.07¢10 538
1
#44
90109-06016-00
BOLT
$9.24¢4 619
1
#45
95604-06200-00
NUT-U (replaces 95602-06200-00)
$2.80¢1 400
1
#46
1D7-27437-00-00
WASHER, SPECIAL
$4.60¢2 300
1
#47
36Y-83913-01-00
COLLAR, LEVER 1
$10.64¢5 319
1
#48
93501-04011-00
BALL
$7.46¢3 731
1
#49
90501-15001-00
SPRING, COMPRESSION
$1.94¢969
1
#50
90105-10171-00
BOLT, FLANGE
$4.90¢2 450
1
#51
90201-10037-00
WASHER, PLATE
$7.72¢3 863
1
#52
1D7-2171G-01-00
BRACKET, STOPPER STEEERING
$41.46¢20 731
1
#54
1D7-27443-00-00
BRACKET 3
$157.06¢78 531
1
#55
95024-08030-00
BOLT, FLANGE (SMALL HEAD)
$6.60¢3 300
1
#56
1D7-2741L-00-00
BRACKET 4
$27.20¢13 600
1
#57
92014-06012-00
BOLT,BUTTON HEAD
$2.95¢1 475
1
#58
1D7-27321-00-00
BRACKET, SIDE STAND
$283.49¢141 744
1
#59
1D7-27311-00-00
STAND, SIDE
$320.89¢160 444
1
#60
90387-12031-00
COLLAR
$14.13¢7 063
1
#61
90105-12018-00
BOLT, FLANGE
$11.95¢5 975
1
#62
90185-12119-00
NUT, SELF-LOCKING
$10.29¢5 144
1
#63
90506-35005-00
SPRING, TENSION
$16.65¢8 325
1
#64
3D8-82566-B0-00
SWITCH, SIDE STAND
$115.65¢57 825
1
#65
4WM-8252U-00-00
COVER
$17.48¢8 738
1
#66
95607-05200-00
NUT,U FLANGE (replaces 95602-05200-00)
$8.16¢4 081
1
#67
92017-05025-00
BOLT, BUTTON HEAD
$6.47¢3 238
1
#68
90445-22327-00
HOSE
$7.57¢3 787
1
#69
90105-10158-00
BOLT, FLANGE
$9.13¢4 563
1
