METER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

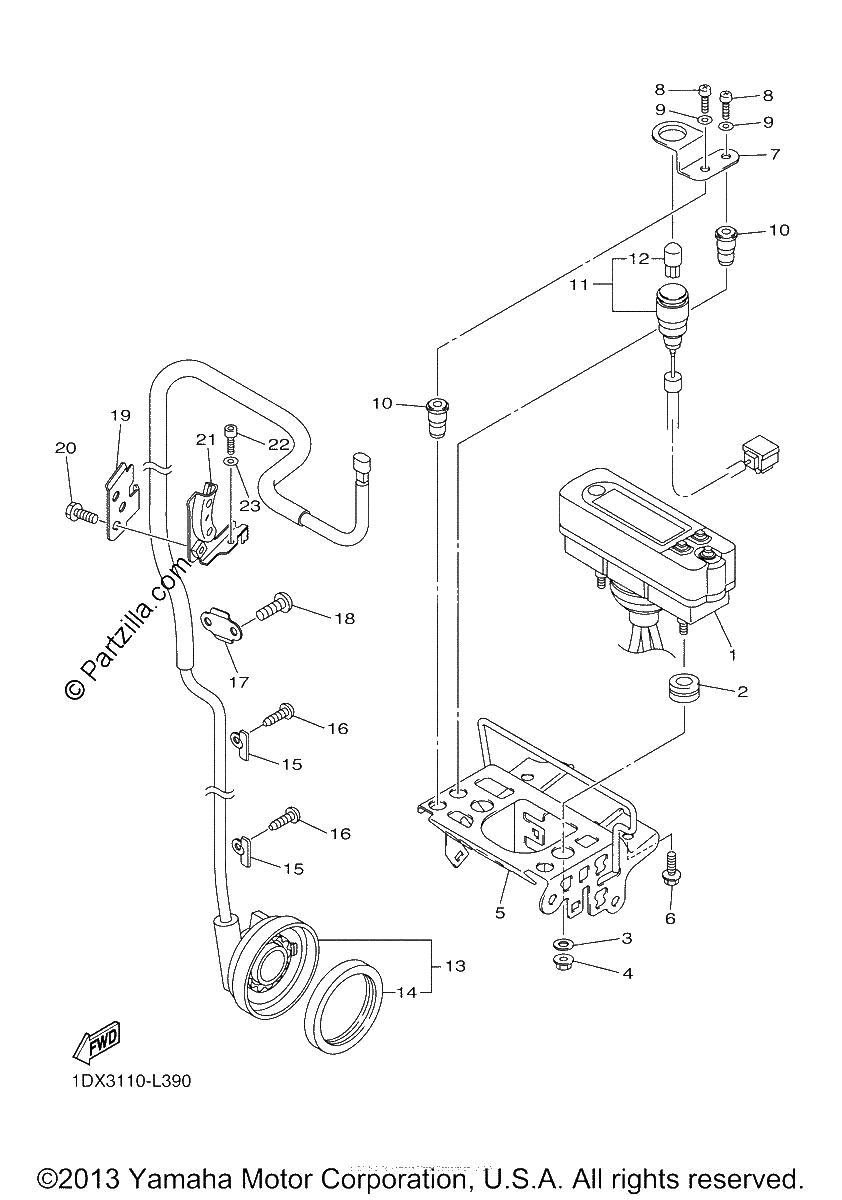

Diagrama de METER

Repuestos

#1
1DX-83500-20-00
METER ASSY (MPH)
$483.31¢241 655
1
#2
90480-14012-00
Grommet
$11.56¢5 779
1
#3
90201-05021-00
WASHER, plate
$1.81¢903
1
#4
95702-05500-00
NUT,FLANGE (SILVER)
$0.84¢420
1
#5
1DX-83519-00-00
BRACKET, METER
$61.66¢30 831
1
#6
90105-06064-00
Bolt, Flange
$2.92¢1 461
1
#7
1DX-83575-00-00
BRACKET, INDICATOR LIGHT 2
$7.60¢3 801
1
#8
98507-05016-00
SCREW, PAN HEAD
$1.54¢771
1
#9
92990-05600-00
WASHER, PLATE
$0.61¢305
1
#10
90179-05013-00
NUT
$6.39¢3 197
1
#11
1DX-83530-00-00
PILOT LIGHT ASSY
$22.62¢11 310
1
#12
3FV-83517-00-00
BULB (12V-1.7W)
$7.10¢3 548
1
#13
5TJ-83755-C3-00
SENSOR, SPEED
$388.15¢194 074
1
#14
93105-47007-00
OIL SEAL,SDD-TYPE
$14.95¢7 475
1
#15
5TJ-8375F-C0-00
PLATE 2
$9.98¢4 991
1
#16
97702-40010-00
SCREW, TAPPING
$2.70¢1 351
1
#17
5TJ-8375E-C0-00
PLATE 1
$7.61¢3 807
1
#18
92012-05008-00
BOLT, BUTTON HEAD
$2.56¢1 282
1
#19
5UM-83595-E0-00
CLAMP
$12.99¢6 498
1
#20
90105-06105-00
Bolt, Flange
$6.92¢3 461
1
#21
5UM-23591-E0-00
BRACKET 1
$27.97¢13 984
1
#22
92012-06012-00
BOLT, BUTTON HEAD
$2.74¢1 368
1
#23
92990-06600-00
WASHER, PLATE
$3.13¢1 564
1
