FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

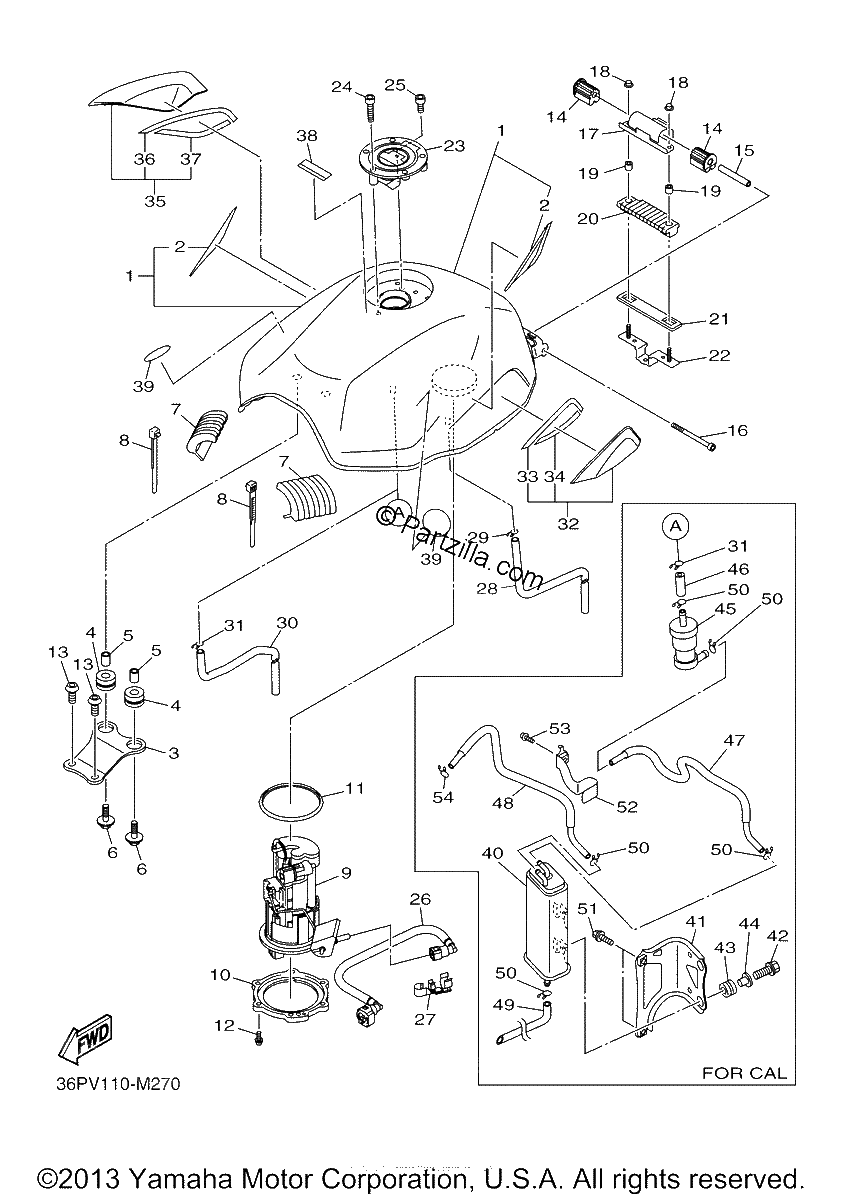

Diagrama de FUEL TANK

Repuestos

#0
90467-090A2-00
Clip
$2.97¢1 487
1
#1
20S-Y2410-00-08
FUEL TANK COMP. | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
No Disponible
1
#2
36P-24240-10-00
GRAPHIC SET
$68.65¢34 325
1
#3
20S-24191-00-00
BRACKET, FUEL TANK 1
$26.31¢13 156
1
#4
90480-16010-00
GROMMET
$3.73¢1 863
1
#5
90387-06068-00
COLLAR
$3.49¢1 744
1
#6
90119-06264-00
BOLT, WITH WASHER
$1.84¢919
1
#7
20S-24183-00-00
DAMPER, LOCATING 3
$6.47¢3 238
1
#8
90465-15011-00
Clamp
$2.33¢1 163
1
#9
20S-13907-00-00
FUEL PUMP COMP.
$694.99¢347 494
1
#10
13S-24491-00-00
BRACKET, FUEL PUMP
$43.83¢21 913
1
#11
19B-24486-01-00
O-RING
$44.47¢22 237
1
#12
90110-05028-00
BOLT, HEXAGON SOCKET HEAD
$7.48¢3 738
1
#13
90111-06127-00
BOLT, HEX. SOCKET BUTTON
$7.48¢3 738
1
#14
5VX-24181-00-00
DAMPER, LOCATING 1
$15.08¢7 538
1
#15
90387-061W6-00
COLLAR
$8.09¢4 044
1
#16
91314-06090-00
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
1
#17
20S-2413Y-00-00
BRACKET, TANK FITTING
$48.06¢24 031
1
#18
95702-06500-00
NUT, FLANGE
$2.44¢1 219
1
#19
90387-07598-00
COLLAR
$5.76¢2 881
1
#20
20S-24181-00-00
DAMPER, LOCATING 1
$8.68¢4 338
1
#21
20S-2414H-00-00
DAMPER, PLATE 1
$8.92¢4 462
1
#22
20S-21296-00-00
NUT
$10.81¢5 406
1
#23
39P-24602-10-00
CAP ASSY
$312.61¢156 306
1
#24
90110-05112-00
BOLT, HEXAGON SOCKET HEAD
$8.91¢4 456
1
#25
91317-05010-00
BOLT,HEX.SOCKET HEAD
$2.00¢1 000
1
#26
5VX-13971-00-00
PIPE, FUEL 1
$103.46¢51 731
1
#27
90464-16005-00
CLAMP
$12.75¢6 375
1
#28
90445-105K7-00
HOSE (L650)
$16.15¢8 075
1
#29
90467-090A2-00
Clip
$2.97¢1 487
1
#30
90445-105K7-00
HOSE (L650)
$16.15¢8 075
1
#31
90467-100A1-00
CLIP | FOR CALIFORNIA
$7.60¢3 800
1
#32
20S-24106-01-00
TANK SIDE COVER ASSY 1
$81.51¢40 756
1
#33
20S-2173T-10-00
TAPE 1
$14.59¢7 294
1
#34
20S-2173T-20-00
TAPE 1
$12.28¢6 138
1
#35
20S-24108-01-00
TANK SIDE COVER ASSY 2
$70.70¢35 350
1
#36
20S-2173U-10-00
TAPE 2
$14.59¢7 294
1
#37
20S-2173U-20-00
TAPE 2
$12.28¢6 138
1
#38
5GK-2118K-00-00
LABEL, CAUTION
$5.84¢2 919
1
#39
95817-06010-00
BOLT,FLANGE (replaces 95827-06010-00)
$4.65¢2 325
1
#39
5JW-2413B-00-00
EMBLEM
$54.00¢27 000
1
#40
5C7-24170-00-00
CANISTER ASSY | FOR CAL
$332.31¢166 156
1
#41
36P-2419F-00-00
BRACKET, CANISTOR | FOR CALIFORNIA
No Disponible
1
#42
95817-06016-00
BOLT, FLANGE
$1.79¢894
1
#43
90480-13163-00
GROMMET | FOR CALIFORNIA
$7.08¢3 538
1
#44
90387-062L2-00
COLLAR | FOR CALIFORNIA
$6.76¢3 381
1
#45
5RB-24180-00-00
ROLL OVER VALVE ASSY
$122.94¢61 469
1
#46
90445-11065-00
HOSE (L30) | FOR CALIFORNIA
$3.79¢1 894
1
#47
36P-24314-00-00
PIPE 4 | FOR CALIFORNIA
No Disponible
1
#48
36P-14466-00-00
PIPE | FOR CALIFORNIA
$74.04¢37 019
1
#49
36P-24315-00-00
PIPE 5 | FOR CALIFORNIA
No Disponible
1
#50
90467-100A1-00
CLIP | FOR CALIFORNIA
$7.60¢3 800
1
#51
95814-08016-00
BOLT,FLANGE (replaces 95802-08016-00)
$7.94¢3 969
1
#52
36P-24667-00-00
GUIDE, PIPE | FOR CALIFORNIA
No Disponible
1
#54
90467-100A1-00
CLIP | FOR CALIFORNIA
$7.60¢3 800
1
