SEAT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

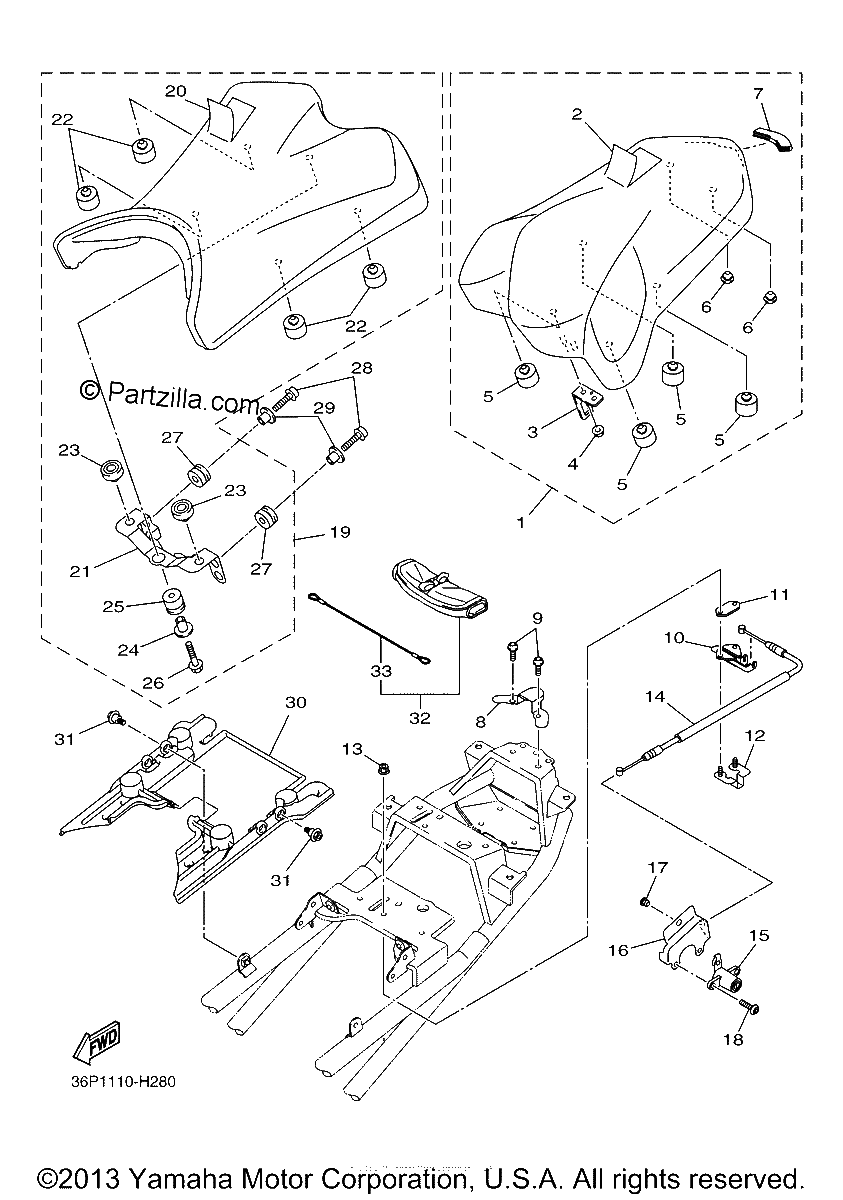

Diagrama de SEAT

Repuestos

#1
36P-24750-00-00
TANDEM SEAT ASSY
$154.87¢77 435
1
#2
36P-2470H-00-00
SEAT COVER COMP., 2
$60.03¢30 015
1
#3
4NK-24728-00-00
BRACKET, SEAT
$10.55¢5 273
1
#4
95702-06500-00
NUT, FLANGE
$2.24¢1 121
1
#5
4D9-27114-00-00
STOPPER, MAIN STAND
$7.64¢3 818
1
#6
90338-07043-00
PLUG
$6.03¢3 013
1
#7
36P-24724-00-00
DAMPER, SEAT
$3.48¢1 742
1
#8
36P-24728-00-00
BRACKET, SEAT
$7.90¢3 950
1
#9
92012-06012-00
BOLT, BUTTON HEAD
$2.74¢1 368
1
#10
50W-24780-01-00
SEAT LOCK ASSY
$20.77¢10 385
1
#11
20S-24792-00-00
PLATE
$2.21¢1 104
1
#12
36P-2478X-00-00
BRACKET, SEAT LOCK
No Disponible
1
#13
95702-06500-00
NUT, FLANGE
$2.24¢1 121
1
#14
5JW-2478E-00-00
CABLE, SEAT LOCK
$16.01¢8 004
1
#15
3CK-W2470-00-00
SEAT LOCK ASSY
$81.60¢40 802
1
#16
20S-2117K-00-00
STAY, LOCK
$9.37¢4 686
1
#17
90338-07043-00
PLUG
$6.03¢3 013
1
#18
90149-06081-00
SCREW
$6.75¢3 375
1
#19
36P-24710-00-00
SINGLE SEAT ASSY
$293.42¢146 711
1
#20
36P-2470F-00-00
SEAT COVER COMP.
$67.95¢33 977
1
#21
36P-24718-00-00
BRACKET, SEAT
$28.55¢14 277
1
#22
4D9-27114-00-00
STOPPER, MAIN STAND
$7.64¢3 818
1
#23
2GH-24741-00-00
PAD, SEAT
$3.10¢1 553
1
#24
90387-06091-00
COLLAR
$6.82¢3 410
1
#25
90480-15M06-00
GROMMET
$8.36¢4 180
1
#26
95812-06030-00
BOLT, FLANGE
$1.82¢909
1
#27
90480-14016-00
GROMMET
$6.92¢3 461
1
#28
90110-06172-00
BOLT, HEXAGON SOCKET HEAD
$8.92¢4 462
1
#29
90387-06M52-00
COLLAR
$7.11¢3 553
1
#30
36P-2475B-00-00
SEAT BASE, UNDER
$44.37¢22 184
1
#31
90109-06236-00
BOLT
$6.96¢3 479
1
#32
20S-28100-00-00
TOOL KIT
$121.80¢60 898
1
#33
20S-21308-00-00
HELMET HANGER
$21.68¢10 839
1
