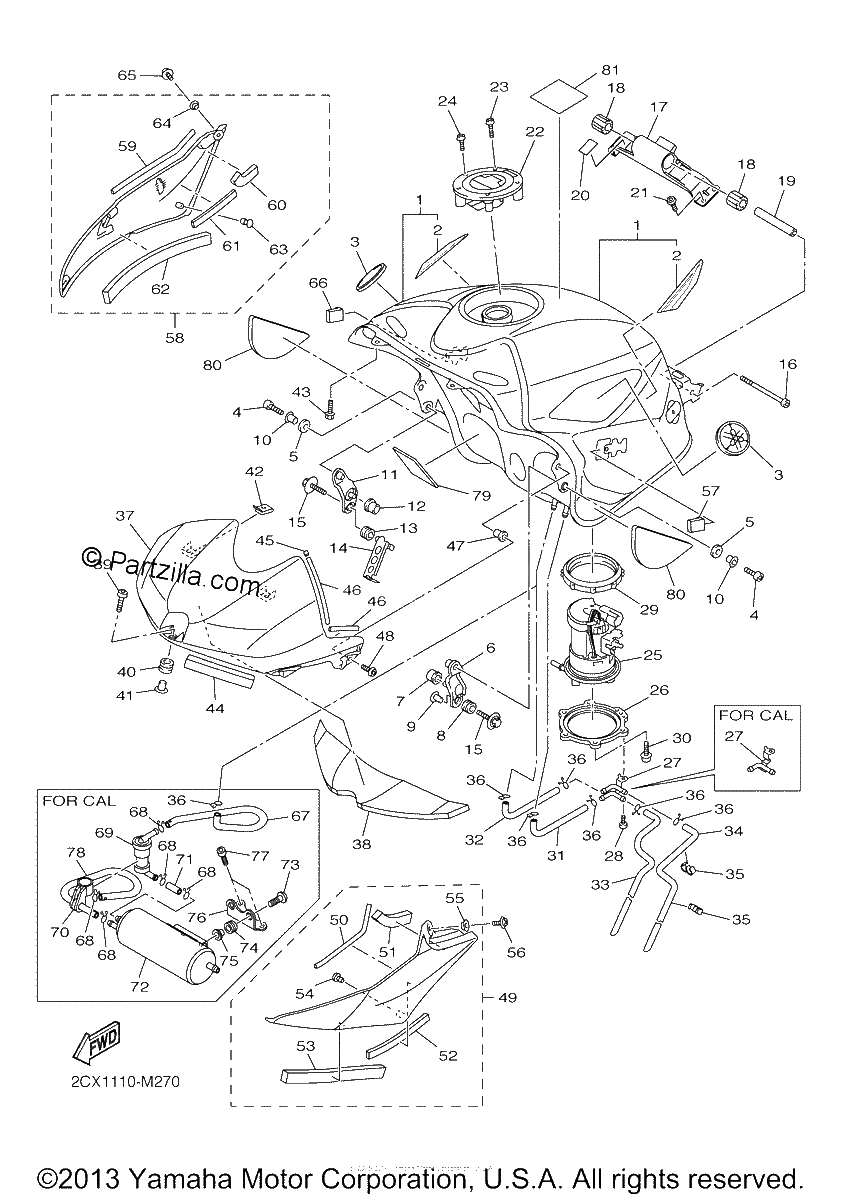

FUEL TANK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#0
PIPE 7 | FOR CALIFORNIA
$19.35¢9 675
#0
COVER, TOP | Use for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 )
$220.41¢110 206
#0
COVER, TOP | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$220.41¢110 206
#0
FUEL TANK COMP. | UR FOR MNM3
$655.39¢327 694
#0
CLAMP 1 | FOR CALIFORNIA
No Disponible
#0
FUEL TANK COMP. | Use for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 )
$1374.99¢687 494
#1
FUEL TANK COMP. | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$1111.24¢555 619
#2
GRAPHIC SET | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$96.14¢48 069
#3
EMBLEM
$26.51¢13 256
#4
BOLT
$5.84¢2 919
#5
DAMPER, LOCATING 3
$7.77¢3 887
#6
BRACKET, FUEL TANK 1
$25.15¢12 575
#7
DAMPER, LOCATING 1
$7.65¢3 825
#8
GROMMET
$11.70¢5 850
#9
COLLAR
$8.31¢4 156
#10
COLLAR
$6.49¢3 244
#11
BRACKET, FUEL TANK 2
$22.88¢11 438
#12
DAMPER, LOCATING 1
$7.65¢3 825
#13
GROMMET
$11.70¢5 850
#14
GUIDE, WIRE
$22.16¢11 081
#15
BOLT, WITH WASHER
$7.48¢3 738
#16
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
#17
BRACKET, TANK FITTING
$74.70¢37 350
#18
DAMPER, LOCATING 3
$7.65¢3 825
#19
COLLAR
$5.19¢2 594
#20
TAPE, 1
$7.91¢3 956
#21
BOLT, HEX. SOCKET BUTTON
$4.11¢2 056
#22
CAP ASSY
$270.61¢135 306
#23
BOLT, HEXAGON SOCKET HEAD
$8.91¢4 456
#24
BOLT
$5.86¢2 931
#25
FUEL PUMP COMP.
$562.71¢281 356
#26
BRACKET, FUEL PUMP
$43.83¢21 913
#27
CLAMP 1 | FOR U49
$42.20¢21 100
#28
SCREW, BIND
$1.89¢944
#29
O-RING
$44.47¢22 237
#30
BOLT, HEXAGON SOCKET HEAD
$7.48¢3 738
#31
PIPE 5
$14.29¢7 144
#32
PIPE 6
$14.04¢7 019
#33
PIPE 7 | FOR U49
$24.31¢12 156
#34
PIPE 3
$27.01¢13 506
#35
CLAMP
$7.36¢3 681
#36
Clip
$2.97¢1 487
#37
COVER, TOP | Use for Color DEEP PURPLISH BLUE METALLIC C ( DPBMC / 0564 )
$324.20¢162 100
#38
DAMPER
$8.15¢4 075
#39
BOLT, HEX. SOCKET BUTTON
$3.98¢1 988
#39
DAMPER, LOCATING 4
$7.95¢3 975
#40
GROMMET
$3.38¢1 688
#41
COLLAR
$6.57¢3 287
#42
NUT, SPRING
$8.85¢4 425
#43
BOLT, FLANGE
$2.64¢1 319
#44
DAMPER, PLATE 2
$6.55¢3 275
#45
DAMPER, LOCATING 1
$7.95¢3 975
#46
DAMPER, PLATE
$1.30¢650
#47
NUT
$6.78¢3 388
#48
SCREW, BIND
$1.44¢719
#49
TANK SIDE COVER ASSY 1
$57.67¢28 838
#50
DAMPER, PLATE
$1.89¢944
#51
DAMPER, PLATE 5
$7.95¢3 975
#52
DAMPER, PLATE
$1.44¢719
#54
PLUG
$6.76¢3 381
#55
COLLAR
$5.99¢2 994
#56
SCREW, BIND
$1.46¢731
#57
DAMPER, SIDE COVER
$7.65¢3 825
#58
TANK SIDE COVER ASSY 2
$57.67¢28 838
#59
DAMPER, PLATE
$1.89¢944
#60
DAMPER, PLATE 5
$7.95¢3 975
#61
DAMPER, PLATE
$1.44¢719
#62
DAMPER, LOCATING 4
$7.95¢3 975
#63
PLUG
$6.76¢3 381
#64
COLLAR
$5.99¢2 994
#65
SCREW, BIND
$1.46¢731
#66
DAMPER, SIDE COVER
$7.65¢3 825
#67
PIPE 4 | FOR CALIFORNIA
$40.23¢20 113
#68
Clip
$2.97¢1 487
#69
ROLL OVER VALVE ASSY | FOR CAL
$61.95¢30 975
#70
BAND 1 | FOR CALIFORNIA
No Disponible
#71
HOSE (L30) | FOR CALIFORNIA
$3.79¢1 894
#72
CANISTER ASSY | FOR CALIFORNIA
$601.70¢300 850
#73
BOLT, HEXAGON SOCKET HEAD
$7.48¢3 738
#74
GROMMET
$7.43¢3 713
#75
COLLAR | FOR CALIFORNIA
$6.76¢3 381
#76
BRACKET, CANISTOR | FOR CALIFORNIA
$55.99¢27 994
#77
BOLT (3JB) (replaces 91312-06020-00)
$2.44¢1 219
#78
PIPE | FOR CALIFORNIA
$32.56¢16 281
#79
DAMPER, SIDE COVER
$5.69¢2 844
#80
DAMPER, SIDE COVER
$7.77¢3 887
#81
LABEL, CAUTION
$7.85¢3 925
