SIDE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

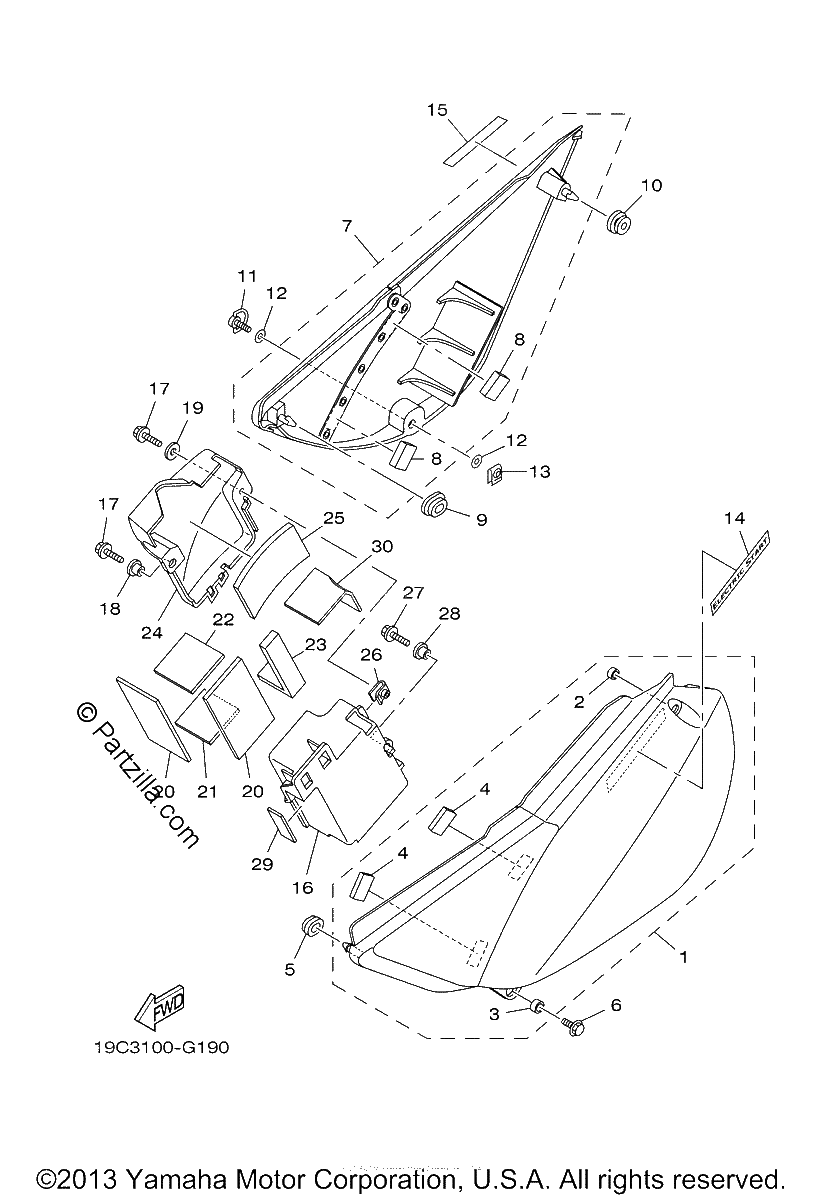

Diagrama de SIDE COVER

Repuestos

#1
1B2-F1710-00-00
SIDE COVER ASSY 1
$69.60¢34 799
1
#2
90387-064X4-00
Collar
$5.90¢2 950
1
#3
90387-1001B-00
COLLAR
$3.42¢1 708
1
#4
1B2-21717-00-00
Damper
$5.40¢2 702
1
#5
90480-01558-00
Grommet
$4.31¢2 156
1
#6
90119-06018-00
BOLT,WITH WASHER
$6.75¢3 375
1
#7
1B2-F1720-00-00
SIDE COVER ASSY 2
$69.60¢34 799
1
#8
1B2-21778-00-00
DAMPER, locating 1
$5.44¢2 720
1
#9
90480-01558-00
Grommet
$4.31¢2 156
1
#10
90480-13014-00
GROMMET
$7.51¢3 755
1
#11
3FV-28386-00-00
HEAD (SPECIAL FASTE
$39.07¢19 533
1
#12
2TK-21757-00-00
WASHER,SPECIAL 1
$1.89¢943
1
#13
4XV-2177L-01-00
PLATE, SPRING
$6.80¢3 398
1
#14
1B2-F1737-00-00
EMBLEM
No Disponible
1
#15
1B2-F1737-00-00
EMBLEM
No Disponible
1
#16
1B2-F177G-00-00
BOX, BATTERY
$26.86¢13 432
1
#17
95817-06020-00
BOLT, FLANGE (replaces 95802-06020-00)
$3.05¢1 524
1
#18
90387-06178-00
Collar
$3.47¢1 737
1
#19
90201-06020-00
WASHER, PLATE (replaces 90201-06058-00)
$6.88¢3 439
1
#20
1B2-F174X-00-00
Damper
$1.78¢891
1
#21
1B2-F1746-00-00
Damper
$0.84¢420
1
#22
1B2-F174Y-00-00
Damper
$1.85¢926
1
#23
1B2-F1747-00-00
Damper
$0.84¢420
1
#24
1B2-H2129-10-00
Cover, Battery
$18.16¢9 079
1
#25
1B2-H2121-00-00
Pad, BATTERY
$3.06¢1 529
1
#26
90183-06069-00
NUT, SPRING
$6.68¢3 341
1
#27
95817-06016-00
BOLT, FLANGE
$1.64¢822
1
#28
90387-087L0-00
COLLAR
$6.76¢3 381
1
#29
1B2-F1639-00-00
DAMPER 2
$0.38¢190
1
#30
1B2-8252U-00-00
Cover
$20.25¢10 126
1
