CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

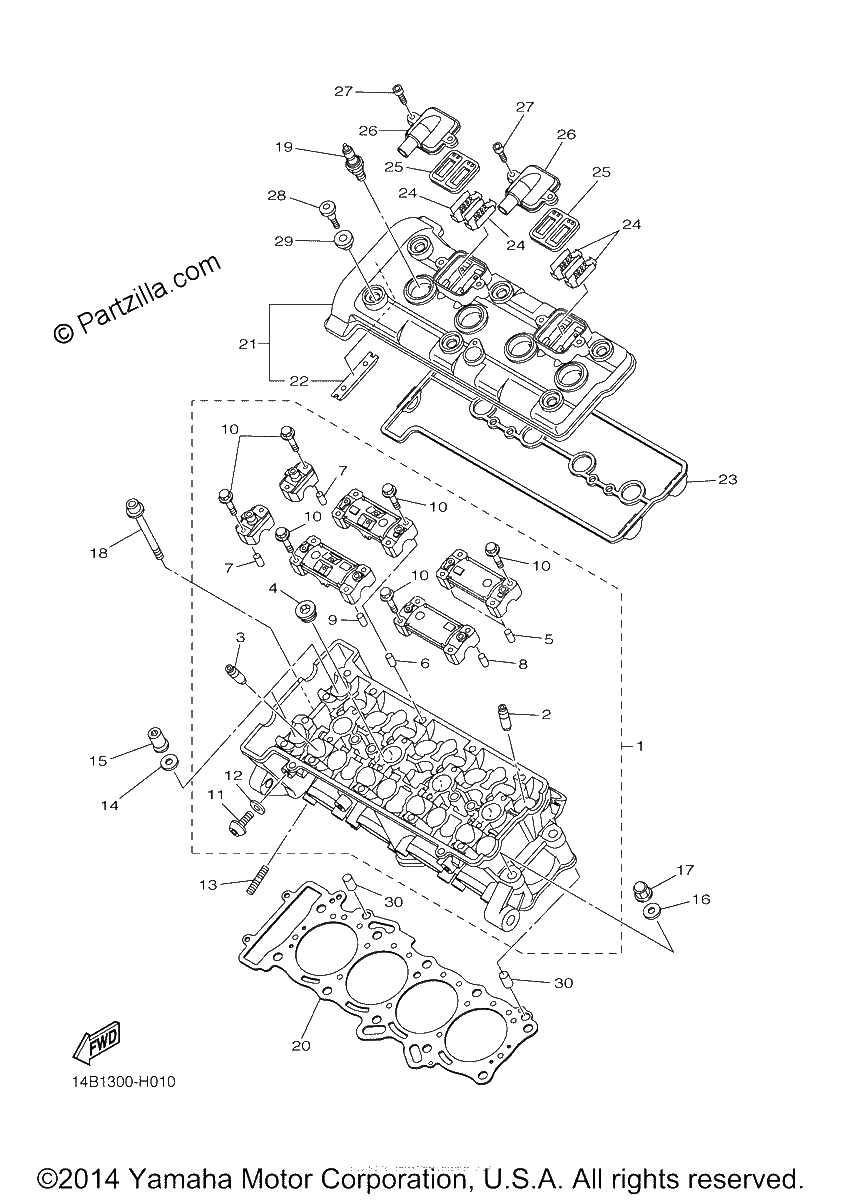

Diagrama de CYLINDER HEAD

Repuestos

#1
14B-11101-19-00
CYLINDER HEAD ASSY
$2114.84¢1 057 419
1
#2
14B-11133-10-00
GUIDE, VALVE 1
$71.37¢35 685
1
#3
4C8-11134-10-00
GUIDE, VALVE 2
$109.22¢54 608
1
#4
90340-18002-00
PLUG, STRAIGHT SCREW
$10.29¢5 146
1
#5
91808-16023-00
PIN, DOWEL
$6.18¢3 088
1
#6
91808-16023-00
PIN, DOWEL
$6.18¢3 088
1
#7
91808-16023-00
PIN, DOWEL
$6.18¢3 088
1
#8
91808-16023-00
PIN, DOWEL
$6.18¢3 088
1
#9
91808-16023-00
PIN, DOWEL
$6.18¢3 088
1
#10
90105-06027-00
BOLT, FLANGE
$7.06¢3 530
1
#11
90149-06156-00
SCREW
$6.96¢3 479
1
#12
90430-06014-00
GASKET
$7.59¢3 795
1
#13
95612-08625-00
BOLT, STUD
$5.13¢2 565
1
#14
90201-10035-00
WASHER, plate
$3.91¢1 955
1
#15
90179-10029-00
NUT
$9.99¢4 997
1
#16
90201-10035-00
WASHER, plate
$3.91¢1 955
1
#17
90176-10075-00
NUT, CROWN
$7.19¢3 594
1
#18
90110-06315-00
BOLT, HEXAGON SOCKET HEAD
$6.14¢3 070
1
#19
LMA-R9EJ0-00-00
LMAR9EJ NGK SPLUG
$13.97¢6 986
1
#20
14B-11181-00-00
GASKET, CYLINDER HEAD 1
$66.99¢33 494
1
#21
14B-11191-00-00
COVER, CYLINDER HEAD 1
$297.71¢148 856
1
#22
5BE-12241-00-00
GUIDE, STOPPER 2
$28.00¢14 001
1
#23
14B-11193-00-00
GASKET, HEAD COVER 1
$52.41¢26 203
1
#24
5VY-1482K-00-00
PLATE
$4.28¢2 139
1
#25
5SL-14890-10-00
REED VALVE ASSY
$93.83¢46 914
1
#26
14B-14899-01-00
CAP, CASE
$30.85¢15 427
1
#27
91314-06020-00
BOLT (3JB) (replaces 91312-06020-00)
$2.24¢1 121
1
#28
90109-066F0-00
BOLT
$6.99¢3 496
1
#29
5VY-1111G-00-00
RUBBER, MOUNT 1
$11.73¢5 865
1
#30
99530-10014-00
PIN, DOWEL
$2.50¢1 248
1
