SEAT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

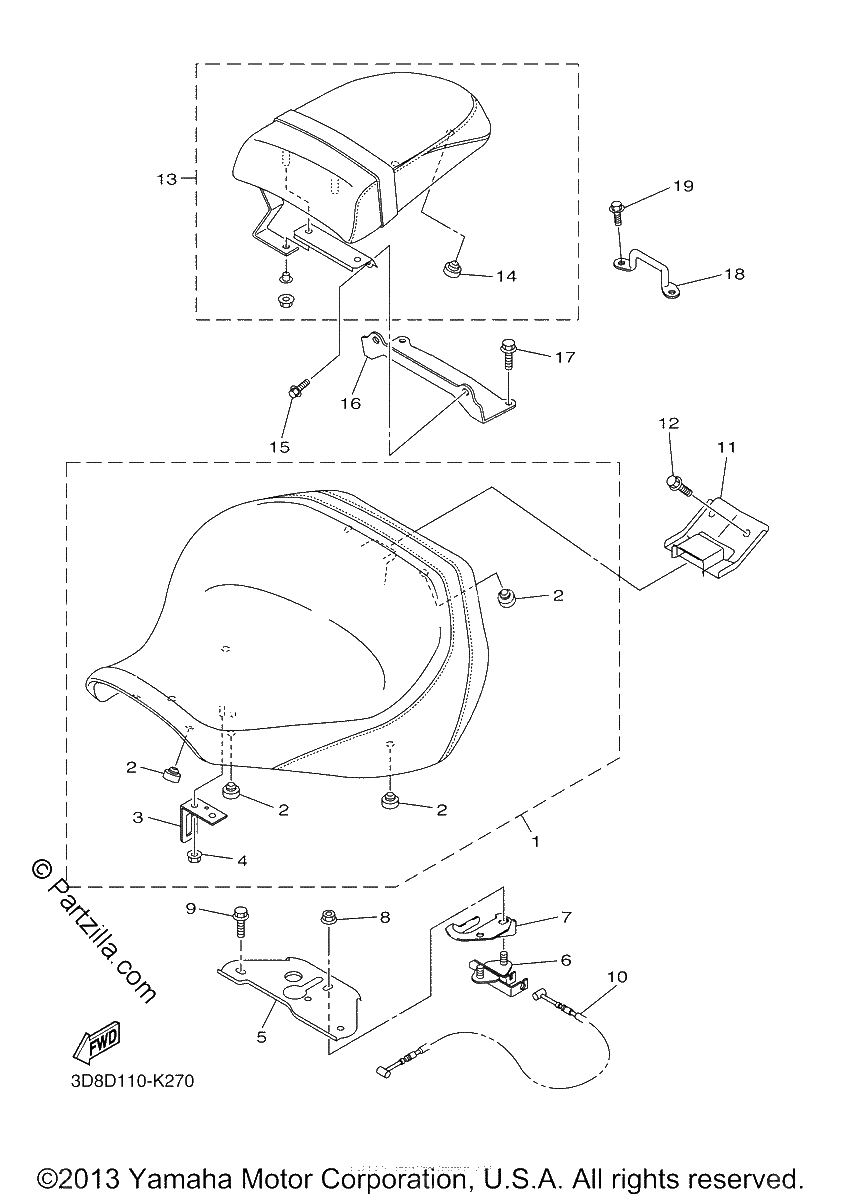

Diagrama de SEAT

Repuestos

#1
3D8-24710-20-00
SINGLE SEAT ASSY
$345.30¢172 650
1
#2
22W-24741-00-00
PAD, SEAT
$8.45¢4 226
1
#3
4NK-24728-00-00
BRACKET, SEAT
$10.55¢5 273
1
#4
95604-06200-00
NUT-U (replaces 95602-06200-00)
$2.58¢1 288
1
#5
3D8-21341-01-00
BRACKET, SEAT 1
$13.89¢6 946
1
#6
4BP-24780-00-00
SEAT LOCK ASSY
$104.11¢52 055
1
#7
27D-24792-00-00
PLATE
$12.39¢6 193
1
#8
95702-06500-00
NUT, FLANGE
$2.24¢1 121
1
#9
95817-06014-00
BOLT, FLANGE (replaces 95802-06014-00)
$2.44¢1 219
1
#10
5PX-2478E-00-00
CABLE, SEAT LOCK
$19.50¢9 752
1
#11
3D8-2475N-00-00
BRACKET
$28.77¢14 386
1
#12
92012-08012-00
BOLT, BUTTON HEAD
$6.96¢3 479
1
#13
3D8-24750-20-00
TANDEM SEAT ASSY
$299.45¢149 724
1
#14
22W-24741-00-00
PAD, SEAT
$8.45¢4 226
1
#15
95022-08012-00
BOLT, FLANGE
$10.41¢5 204
1
#16
1D7-2475H-00-00
BRACKET, SEAT LEVER 1
$17.39¢8 694
1
#17
95022-08012-00
BOLT, FLANGE
$10.41¢5 204
1
#18
3D8-2475R-00-00
BRACKET 6
$17.08¢8 539
1
#19
95022-08012-00
BOLT, FLANGE
$10.41¢5 204
1
