FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

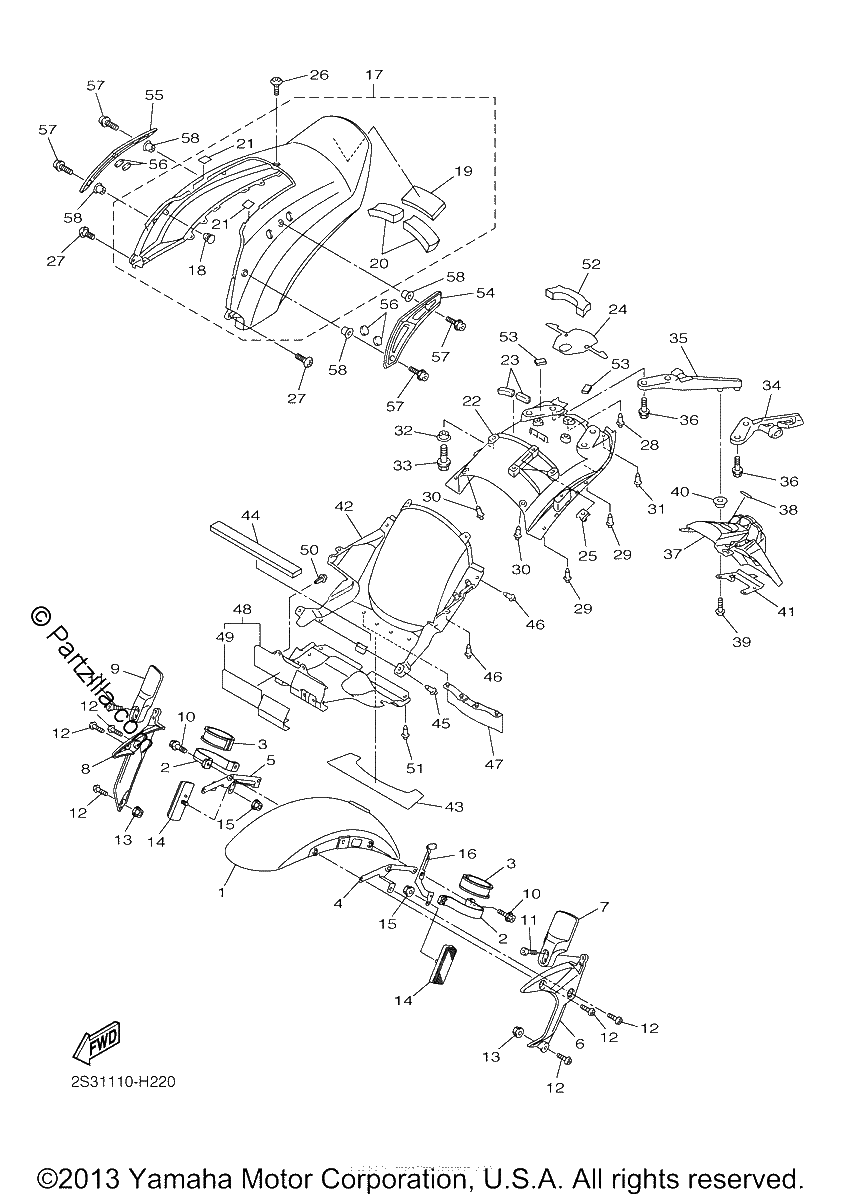

Diagrama de FENDER

Repuestos

#1
2S3-21511-00-P4
FENDER, FRONT | VDVM1
$158.16¢79 081
1
#2
2S3-21513-00-00
STAY, FENDER 1
$145.29¢72 644
1
#3
2S3-21541-00-00
DAMPER 1
$10.15¢5 075
1
#4
2S3-21512-00-00
BRACKET, FENDER
$38.19¢19 094
1
#5
2S3-21586-00-00
BRACKET
$43.50¢21 750
1
#6
2S3-23361-00-P0
ARM 1 | Use for Color Silver 8 ( S8 / 0895 )
$152.20¢76 100
1
#7
2S3-2110M-00-P1
COVER ASSY 1 | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$89.53¢44 763
1
#8
2S3-23371-00-P0
ARM 2 | Use for Color Silver 8 ( S8 / 0895 )
$152.20¢76 100
1
#9
2S3-2110N-00-P1
COVER ASSY 2 | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$89.53¢44 763
1
#10
90110-06152-00
BOLT, HEXAGON SOCKET HEAD
$7.46¢3 731
1
#11
91314-06014-00
BOLT, HEXAGON SOCKET HEAD
$4.20¢2 100
1
#12
90111-06038-00
BOLT, HEX. SOCKET BUTTON
$4.11¢2 056
1
#13
95702-06500-00
NUT, FLANGE
$2.44¢1 219
1
#14
11H-85110-01-00
REFLECTOR ASSY
$24.93¢12 463
1
#15
95604-05200-00
NUT, U FLANGE
$2.05¢1 025
1
#16
2S3-85112-01-00
BRACKET, REFLECTOR 1
$34.28¢17 138
1
#17
2S3-21600-00-P4
REAR FENDER ASSY. | VDVM1
$502.46¢251 231
1
#18
90338-07180-00
PLUG
$6.76¢3 381
1
#19
2S3-84553-00-00
DAMPER
$4.60¢2 300
1
#20
2S3-2112D-00-00
DAMPER 3
$2.96¢1 481
1
#21
1UF-15379-00-00
SEAL
$7.72¢3 863
1
#22
2S3-2162R-00-00
FENDER 2
$74.34¢37 169
1
#23
2S3-28347-00-00
MOLE 3
$7.91¢3 956
1
#24
2S3-21669-00-00
SEAL
$23.81¢11 906
1
#25
90183-06069-00
NUT, SPRING
$7.26¢3 631
1
#26
90110-05201-00
BOLT, HEXAGON SOCKET HEAD
$2.55¢1 275
1
#27
90110-05201-00
BOLT, HEXAGON SOCKET HEAD
$2.55¢1 275
1
#28
90269-06008-00
RIVET
$8.80¢4 400
1
#29
90269-06008-00
RIVET
$8.80¢4 400
1
#30
90269-06008-00
RIVET
$8.80¢4 400
1
#31
90269-06008-00
RIVET
$8.80¢4 400
1
#32
90387-07027-00
COLLAR
$7.65¢3 825
1
#33
95022-06014-00
BOLT, FLANGE
$3.14¢1 569
1
#34
2S3-21689-00-00
BRACKET, REAR STAY 2
$270.36¢135 181
1
#35
2S3-2161A-00-00
BRACKET 3
$286.25¢143 125
1
#36
95814-06020-00
BOLT, FLANGE
$7.94¢3 969
1
#37
2S3-21629-00-00
GUARD, MUD
$65.48¢32 738
1
#38
4KN-2836B-10-00
TUNING FORK MARK
$18.90¢9 450
1
#39
2S3-2112J-00-00
DAMPER 4
$0.88¢438
1
#39
92014-06016-00
BOLT, BUTTON HEAD (replaces 90111-06008-00)
$7.34¢3 669
1
#40
90387-06242-00
COLLAR
$5.95¢2 975
1
#41
2S3-2164F-00-00
STAY 1
$15.81¢7 906
1
#42
2S3-2163A-00-00
COVER, REAR FENDER 1
$86.54¢43 269
1
#43
2S3-2172P-00-00
SEAT
$12.79¢6 394
1
#44
2S3-2414N-00-00
DAMPER, PLATE 4
$7.60¢3 800
1
#45
90269-06008-00
RIVET
$8.80¢4 400
1
#46
90269-06008-00
RIVET
$8.80¢4 400
1
#47
2S3-21621-00-00
FLAP
$13.35¢6 675
1
#48
2S3-2476U-00-00
PROTECTOR 1
$68.53¢34 263
1
#49
2S3-24193-00-00
SEAT, TANK PROTECTOR
$16.85¢8 425
1
#50
90269-07010-00
RIVET
$4.45¢2 225
1
#51
90269-06008-00
RIVET
$8.80¢4 400
1
#52
2S3-2112C-00-00
DAMPER 2
$6.29¢3 144
1
#54
2S3-2171E-00-00
COVER, SIDE 5
$158.49¢79 244
1
#55
2S3-2171X-00-00
COVER, SIDE 6
$158.49¢79 244
1
#56
2S3-21747-00-00
DAMPER
$7.95¢3 975
1
#57
90110-05057-00
BOLT, HEXAGON SOCKET HEAD
$6.14¢3 069
1
#58
90179-05523-00
NUT
$6.78¢3 388
1
