FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

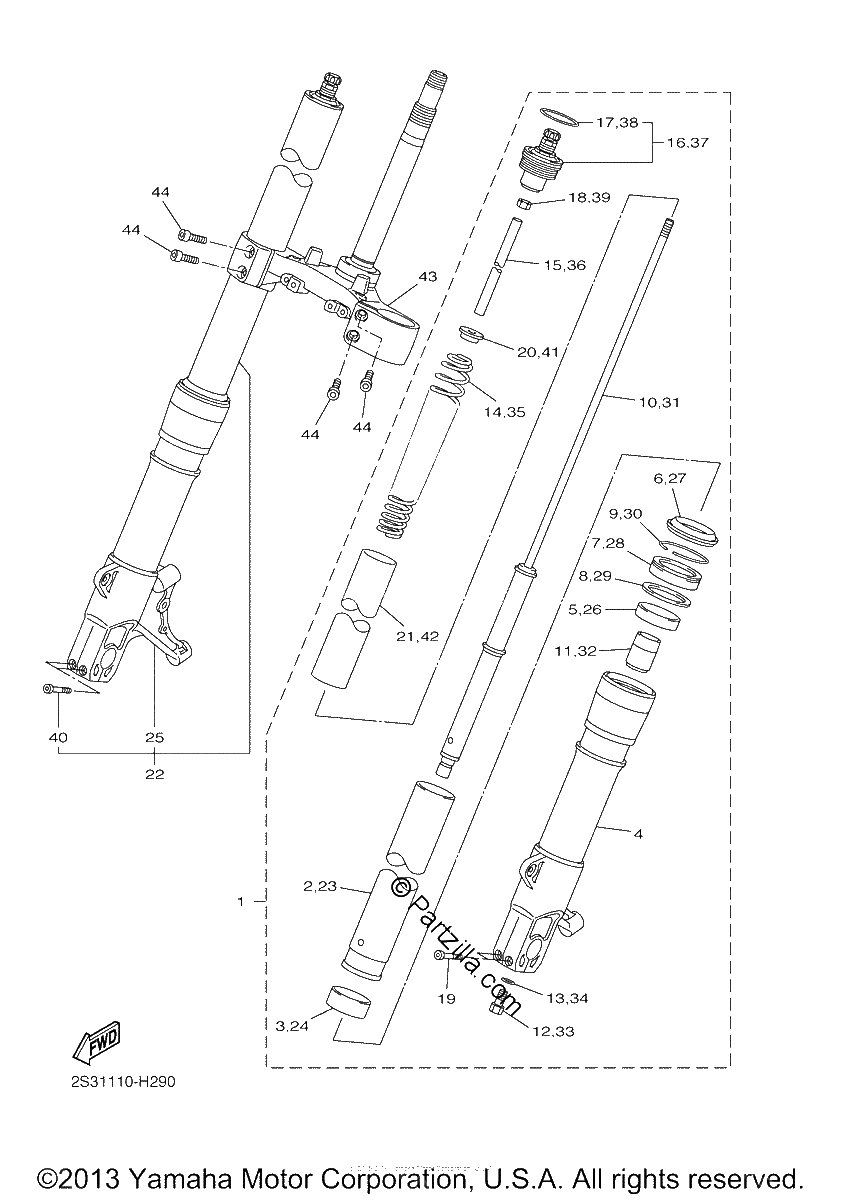

Diagrama de FRONT FORK

Repuestos

#1
2S3-23102-00-00
FRONT FORK ASSY (L.H
$1392.49¢696 244
1
#2
2S3-23110-01-00
INNER TUBE COMP.1 This item has been discontinued and may not be available. Contact us for more information.
$618.39¢309 194
1
#3
2S3-23135-00-00
METAL, SLIDE 2
$32.96¢16 481
1
#4
2S3-23106-00-00
OUTER TUBE COMP. (L.
$607.49¢303 744
1
#5
2S3-23125-00-00
METAL, SLIDE 1
$52.95¢26 475
1
#6
2S3-23144-00-00
SEAL, dust
$18.90¢9 450
1
#7
2S3-23145-00-00
Oil Seal
$16.34¢8 169
1
#8
2S3-23115-00-00
SEAT 1
$17.01¢8 506
1
#9
2S3-23156-00-00
RING, SNAP
$7.77¢3 887
1
#10
2S3-23170-00-00
CYLINDER COMP., FRON
No Disponible
1
#11
2S3-23173-00-00
SPINDLE, TAPER
$30.60¢15 300
1
#12
2S3-23394-00-00
BOLT, SPECIAL
No Disponible
1
#13
90430-10171-00
GASKET
$3.90¢1 950
1
#14
2S3-23141-00-00
SPRING, FRONT FORK
$35.33¢17 663
1
#15
2S3-23118-00-00
SPACER
$7.99¢3 994
1
#16
2S3-23111-00-00
BOLT, cap
$295.21¢147 606
1
#17
CS4-43862-40-00
O-Ring
$5.46¢2 731
1
#18
95314-10600-00
NUT (3BM) (replaces 95302-10600-00)
$2.05¢1 025
1
#19
91314-08045-00
BOLT, HEXAGON SOCKET HEAD
$8.10¢4 050
1
#20
5YU-23142-00-00
SEAT, SPRING UPPER
$3.26¢1 631
1
#21
2S3-23104-00-00
REINF. COMP. This item has been discontinued and may not be available. Contact us for more information.
$46.90¢23 450
1
#22
2S3-23103-00-00
FRONT FORK ASSY (R.H
$1392.49¢696 244
1
#23
2S3-23110-01-00
INNER TUBE COMP.1 This item has been discontinued and may not be available. Contact us for more information.
$618.39¢309 194
1
#24
2S3-23135-00-00
METAL, SLIDE 2
$32.96¢16 481
1
#25
2S3-23107-00-00
OUTER TUBE COMP. (R.
$607.49¢303 744
1
#26
2S3-23125-00-00
METAL, SLIDE 1
$52.95¢26 475
1
#27
2S3-23144-00-00
SEAL, dust
$18.90¢9 450
1
#28
2S3-23145-00-00
Oil Seal
$16.34¢8 169
1
#29
2S3-23115-00-00
SEAT 1
$17.01¢8 506
1
#30
2S3-23156-00-00
RING, SNAP
$7.77¢3 887
1
#31
2S3-23170-00-00
CYLINDER COMP., FRON
No Disponible
1
#32
2S3-23173-00-00
SPINDLE, TAPER
$30.60¢15 300
1
#33
2S3-23394-00-00
BOLT, SPECIAL
No Disponible
1
#34
90430-10171-00
GASKET
$3.90¢1 950
1
#35
2S3-23141-00-00
SPRING, FRONT FORK
$35.33¢17 663
1
#36
2S3-23118-00-00
SPACER
$7.99¢3 994
1
#37
2S3-23111-00-00
BOLT, cap
$295.21¢147 606
1
#38
CS4-43862-40-00
O-Ring
$5.46¢2 731
1
#39
95314-10600-00
NUT (3BM) (replaces 95302-10600-00)
$2.05¢1 025
1
#40
91314-08045-00
BOLT, HEXAGON SOCKET HEAD
$8.10¢4 050
1
#41
5YU-23142-00-00
SEAT, SPRING UPPER
$3.26¢1 631
1
#42
2S3-23104-00-00
REINF. COMP. This item has been discontinued and may not be available. Contact us for more information.
$46.90¢23 450
1
#43
2S3-23340-00-00
UNDER BRACKET COMP.
$562.73¢281 363
1
#44
91314-08025-00
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
1
