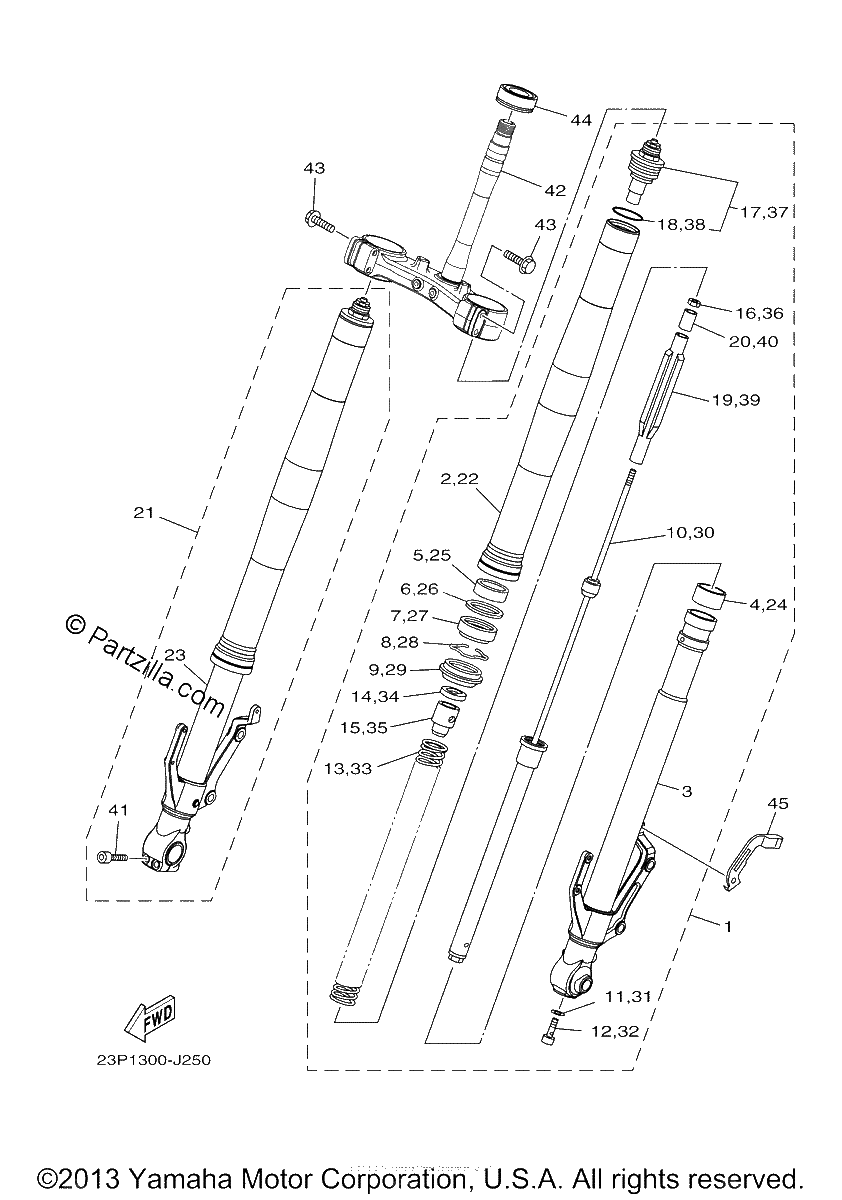

FRONT FORK
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FRONT FORK ASSY (L.H
$1489.99¢744 994
#2
TUBE, OUTER
$838.38¢419 188
#3
INNER TUBE COMP. 1
$614.09¢307 044
#4
PISTON, FRONT FORK
$34.44¢17 219
#5
METAL, SLIDE 1 | (KYB)
$32.51¢16 256
#6
WASHER, OIL SEAL | (KYB)
$7.08¢3 538
#7
OIL SEAL
$33.13¢16 563
#8
RING, SNAP | (KYB)
$10.31¢5 156
#9
SEAL, DUST
$24.02¢12 013
#10
CYLINDER COMP., FRONT FORK
$588.38¢294 188
#11
GASKET | (KYB)
$17.09¢8 544
#12
BOLT, HEXAGON SOCKET HEAD
$24.00¢12 000
#13
SPRING, FRONT FORK
$120.59¢60 294
#14
WASHER
$12.75¢6 375
#15
SPACER
$27.54¢13 769
#16
NUT
$7.91¢3 956
#17
BOLT, CAP
$218.61¢109 306
#18
O-RING
$8.03¢4 013
#19
GUIDE, SPRING
$52.42¢26 213
#20
COLLAR
$8.30¢4 150
#21
FRONT FORK ASSY (R.H
$1489.99¢744 994
#22
TUBE, OUTER
$838.38¢419 188
#23
INNER TUBE COMP. 2
$614.09¢307 044
#24
PISTON, FRONT FORK
$34.44¢17 219
#25
METAL, SLIDE 1 | (KYB)
$32.51¢16 256
#26
WASHER, OIL SEAL | (KYB)
$7.08¢3 538
#27
OIL SEAL
$33.13¢16 563
#28
RING, SNAP | (KYB)
$10.31¢5 156
#29
SEAL, DUST
$24.02¢12 013
#30
CYLINDER COMP., FRONT FORK
$588.38¢294 188
#31
GASKET | (KYB)
$17.09¢8 544
#32
BOLT, HEXAGON SOCKET HEAD
$24.00¢12 000
#33
SPRING, FRONT FORK
$120.59¢60 294
#34
WASHER
$12.75¢6 375
#35
SPACER
$27.54¢13 769
#36
NUT
$7.91¢3 956
#37
BOLT, CAP
$218.61¢109 306
#38
O-RING
$8.03¢4 013
#39
GUIDE, SPRING
$52.42¢26 213
#40
COLLAR
$8.30¢4 150
#41
BOLT (3JP)
$6.25¢3 125
#42
UNDER BRACKET COMP.
$802.13¢401 063
#43
Bolt, Flange
$7.34¢3 669
#44
BEARING
$60.51¢30 256
#45
HOLDER, BRAKE HOSE 1
$14.16¢7 081
