EXHAUST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

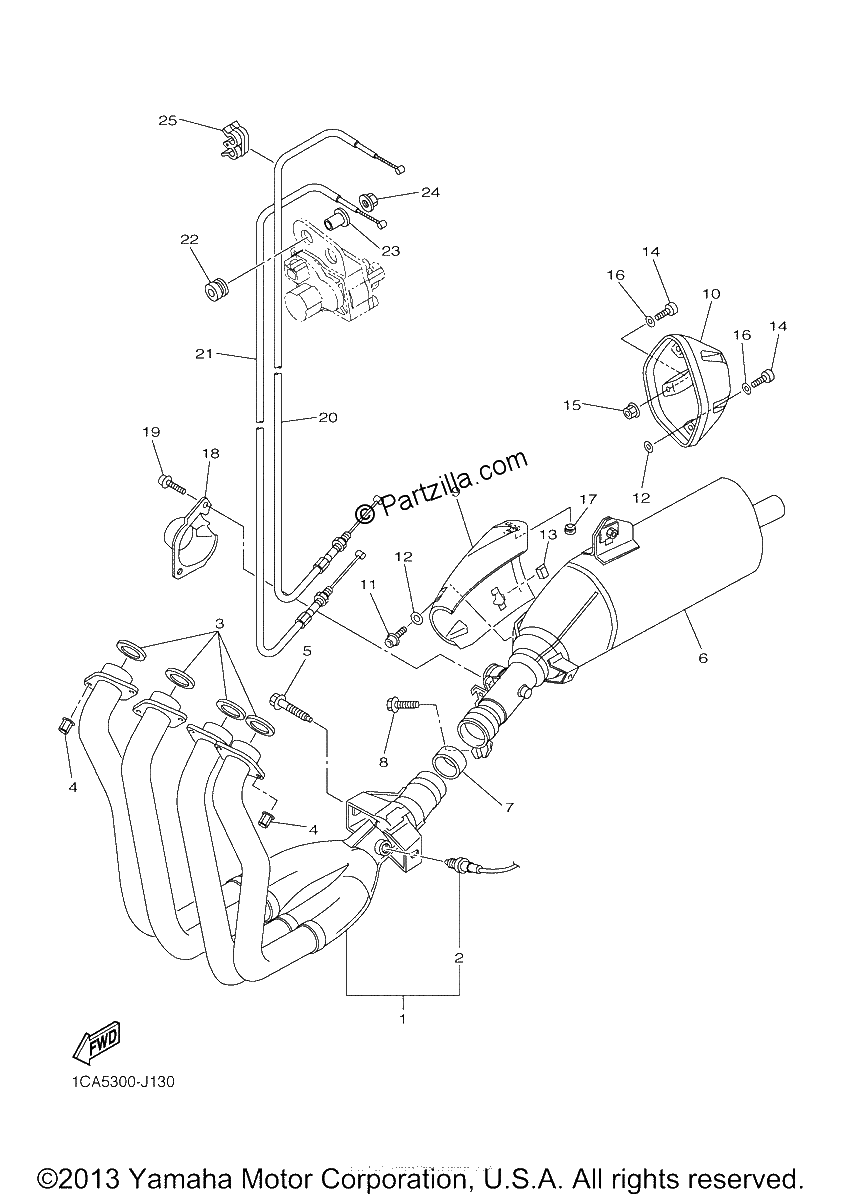

Diagrama de EXHAUST

Repuestos

#1
2D1-14602-10-00
EXHAUST PIPE COMP.
$1818.14¢909 069
1
#2
2D1-8592A-00-00
SENSOR, OXYGEN
$411.46¢205 729
1
#3
4FM-14613-00-00
GASKET, EXHAUST PIPE
$11.73¢5 865
1
#4
90179-08410-00
NUT
$5.51¢2 754
1
#5
90109-08170-00
BOLT
$5.65¢2 823
1
#6
2D1-14703-10-00
MUFFLER COMP. 1
$1703.14¢851 569
1
#7
5VY-14755-00-00
GASKET, SILENCER
$39.11¢19 556
1
#8
95814-08030-00
BOLT, FLANGE
$6.88¢3 439
1
#9
2D1-14718-20-00
PROTECTOR, MUFFLER 1
$375.14¢187 571
1
#10
2D1-14799-10-00
CAP
$288.65¢144 325
1
#11
90111-06060-00
BOLT HEX. SOCKET BUTTON
$4.22¢2 110
1
#12
90201-05017-00
WASHER, PLATE
$6.88¢3 439
1
#13
3MA-24181-00-00
DAMPER, LOCATING 1
$7.15¢3 577
1
#14
91380-06014-00
BOLT
$2.43¢1 213
1
#15
95702-06500-00
NUT, FLANGE
$2.24¢1 121
1
#16
92990-06600-00
WASHER, PLATE
$3.13¢1 564
1
#17
2D1-14737-00-00
DAMPER, MUFFLER
$5.58¢2 789
1
#18
2D1-14826-00-00
PROTECTOR, EXHAUST
$65.64¢32 821
1
#19
90110-06110-00
BOLT, HEXAGON SOCKET HEAD
$5.86¢2 932
1
#20
2D1-1133E-01-00
CABLE, PULLEY 1
$76.04¢38 019
1
#21
2D1-1133F-11-00
CABLE, PULLEY 2
$74.38¢37 191
1
#22
90480-14604-00
GROMMET
$8.13¢4 065
1
#23
90387-06M60-00
COLLAR
$7.49¢3 743
1
#24
95702-06500-00
NUT, FLANGE
$2.24¢1 121
1
#25
90464-04001-00
CLAMP
$5.91¢2 956
1
