FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

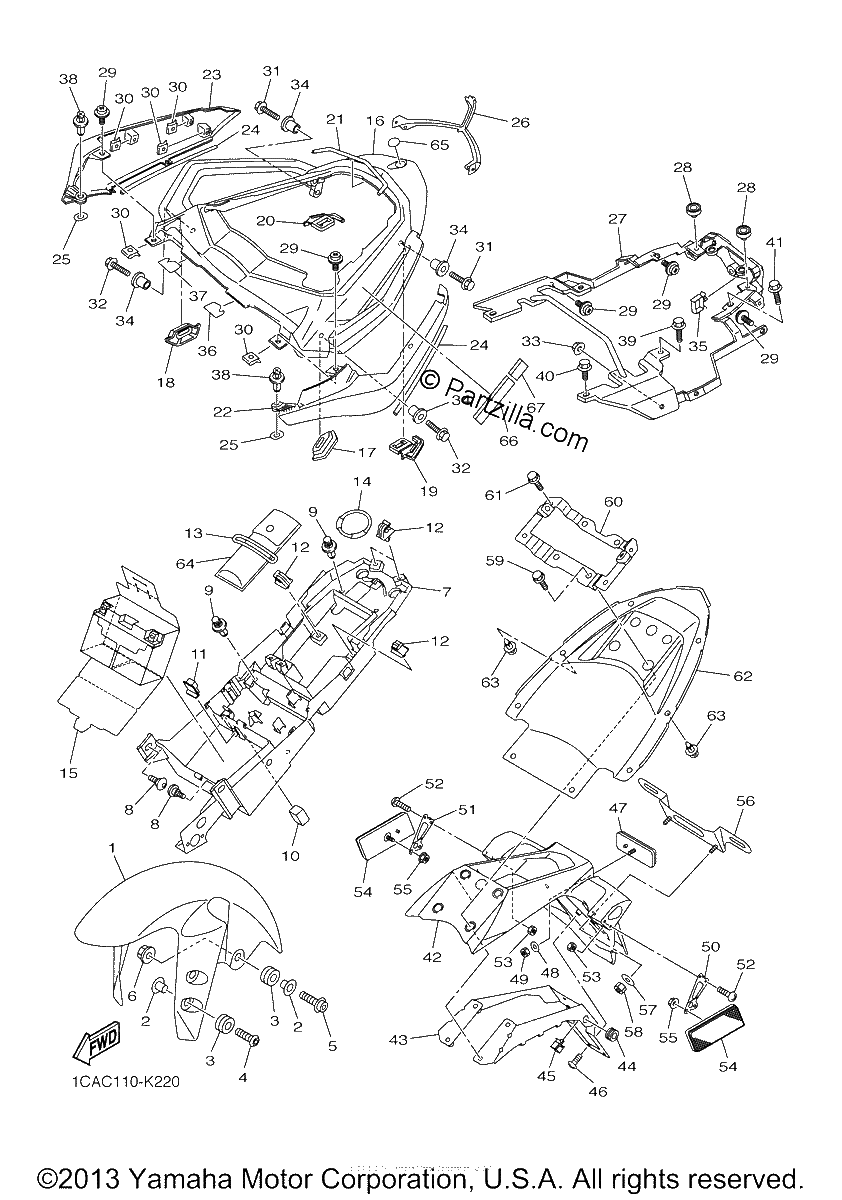

Diagrama de FENDER

Repuestos

#1
5PW-21511-01-PA
FENDER, FRONT | Use for Color Deep Purplish Blue Metallic U ( DPBMU / 996 )
$208.79¢104 397
1
#2
90387-06159-00
Collar
$6.99¢3 496
1
#3
90480-12072-00
GROMMET
$7.30¢3 651
1
#4
90149-06302-00
SCREW
$4.70¢2 352
1
#5
90109-06031-00
bolt
$2.10¢1 052
1
#6
95604-06200-00
NUT-U (replaces 95602-06200-00)
$2.58¢1 288
1
#7
2D1-8212B-02-00
BOX, BATTERY 1
$75.09¢37 547
1
#8
90109-06253-00
BOLT
$5.24¢2 622
1
#9
90269-07077-00
RIVET
$7.59¢3 795
1
#10
2D1-216A2-00-00
SEAL, 2
$2.07¢1 035
1
#11
2D1-216A3-00-00
SEAL, 3
$6.84¢3 421
1
#12
90464-07259-00
CLAMP
$1.70¢851
1
#13
4XV-21376-00-00
BAND, TOOL
$11.53¢5 767
1
#14
2D1-21646-00-00
BAND
$5.47¢2 737
1
#15
2D1-82122-10-00
SEAT, BATTERY
$109.76¢54 878
1
#16
3C3-24773-00-P8
HANDLE, SEAT | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$854.76¢427 380
1
#17
3C3-24723-00-00
DAMPER, SEAT
$10.22¢5 112
1
#18
3C3-24724-00-00
DAMPER, SEAT
$5.66¢2 829
1
#19
3C3-24737-00-00
DAMPER, SEAT
$11.53¢5 767
1
#20
3C3-24747-00-00
DAMPER, SEAT
$5.40¢2 702
1
#21
3C3-21541-00-00
DAMPER 1
$3.10¢1 553
1
#22
3C3-2471K-00-P7
COVER, TAIL 1 | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$121.80¢60 898
1
#23
3C3-2472K-00-P7
COVER, TAIL 2 | Use for Color MAT BLACK 2 ( MBL2 / 0582 )
$166.81¢83 404
1
#24
3C3-2193A-00-00
PROTECTOR
$7.75¢3 875
1
#25
5PW-2174X-00-00
DAMPER
$6.51¢3 254
1
#26
3C3-2163A-00-00
COVER, REAR FENDER 1
$62.84¢31 418
1
#27
3C3-21617-00-00
BRACKET, FENDER
$358.12¢179 061
1
#28
22W-24741-00-00
PAD, SEAT
$8.45¢4 226
1
#29
90159-05056-00
SCREW, WITH WASHER
$1.36¢678
1
#30
90183-051A0-00
NUT, SPRING
$2.92¢1 461
1
#31
95817-08025-00
BOLT, FLANGE
$6.75¢3 375
1
#32
95817-08030-00
BOLT, FLANGE
$6.75¢3 375
1
#33
95702-08500-00
NUT, FLANGE
$0.91¢454
1
#34
90387-09012-00
COLLAR
$12.67¢6 336
1
#35
90464-16021-00
CLAMP
$12.30¢6 152
1
#36
3C3-22825-00-00
PROTECTOR 1
$2.78¢1 392
1
#37
3C3-22826-00-00
PROTECTOR 2
$3.73¢1 863
1
#38
90269-07076-00
RIVET,SPEC'L SHAPE
$6.55¢3 278
1
#39
95817-06025-00
BOLT,FLANGE (replaces 90105-06125-00)
$1.61¢805
1
#39
95617-04100-00
NUT, U
$7.84¢3 922
1
#40
95817-06014-00
BOLT, FLANGE (replaces 95802-06014-00)
$2.44¢1 219
1
#41
95817-08012-00
BOLT, FLANGE
$4.35¢2 173
1
#42
2D1-21629-10-00
GUARD, MUD
$48.30¢24 150
1
#43
2D1-21688-02-00
BRACKET, REAR STAY
$197.73¢98 866
1
#44
90480-13004-00
GROMMET
$6.36¢3 180
1
#45
90464-16021-00
CLAMP
$12.30¢6 152
1
#46
97702-50016-00
TAPPING SCREW
$2.17¢1 087
1
#47
3Y6-85130-02-00
Rear Reflector
$24.91¢12 455
1
#48
90201-05043-00
WASHER, PLATE
$5.96¢2 978
1
#49
95617-05100-00
NUT, U
$7.30¢3 651
1
#50
5VY-21688-00-00
BRACKET, REAR STAY
$8.59¢4 295
1
#51
5VY-21689-00-00
BRACKET, REAR STAY 2
$8.59¢4 295
1
#52
90150-04041-00
SCREW, ROUND HEAD
$0.47¢236
1
#54
3Y6-85130-02-00
Rear Reflector
$24.91¢12 455
1
#55
95702-05500-00
NUT,FLANGE (SILVER)
$0.84¢420
1
#56
39P-84751-00-00
BRACKET, LICENSE
$25.37¢12 684
1
#57
90201-06088-00
WASHER, PLATE
$6.87¢3 433
1
#58
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.63¢1 317
1
#59
95817-08025-00
BOLT, FLANGE
$6.75¢3 375
1
#60
3C3-21261-00-00
BRACKET, REAR FENDER
$271.77¢135 884
1
#61
95817-06020-00
BOLT, FLANGE (replaces 95802-06020-00)
$3.05¢1 524
1
#62
3C3-21611-00-00
FENDER, REAR
$77.21¢38 606
1
#63
90269-07077-00
RIVET
$7.59¢3 795
1
#64
39P-28100-01-00
TOOL KIT
$97.44¢48 720
1
#65
4KN-2836B-10-00
TUNING FORK MARK
$17.39¢8 694
1
#66
3JJ-28446-A1-00
LABEL, CAUTION
$4.54¢2 271
1
#67
3TB-24877-A0-00
LABEL, CAUTION
$4.90¢2 449
1
