VALVE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

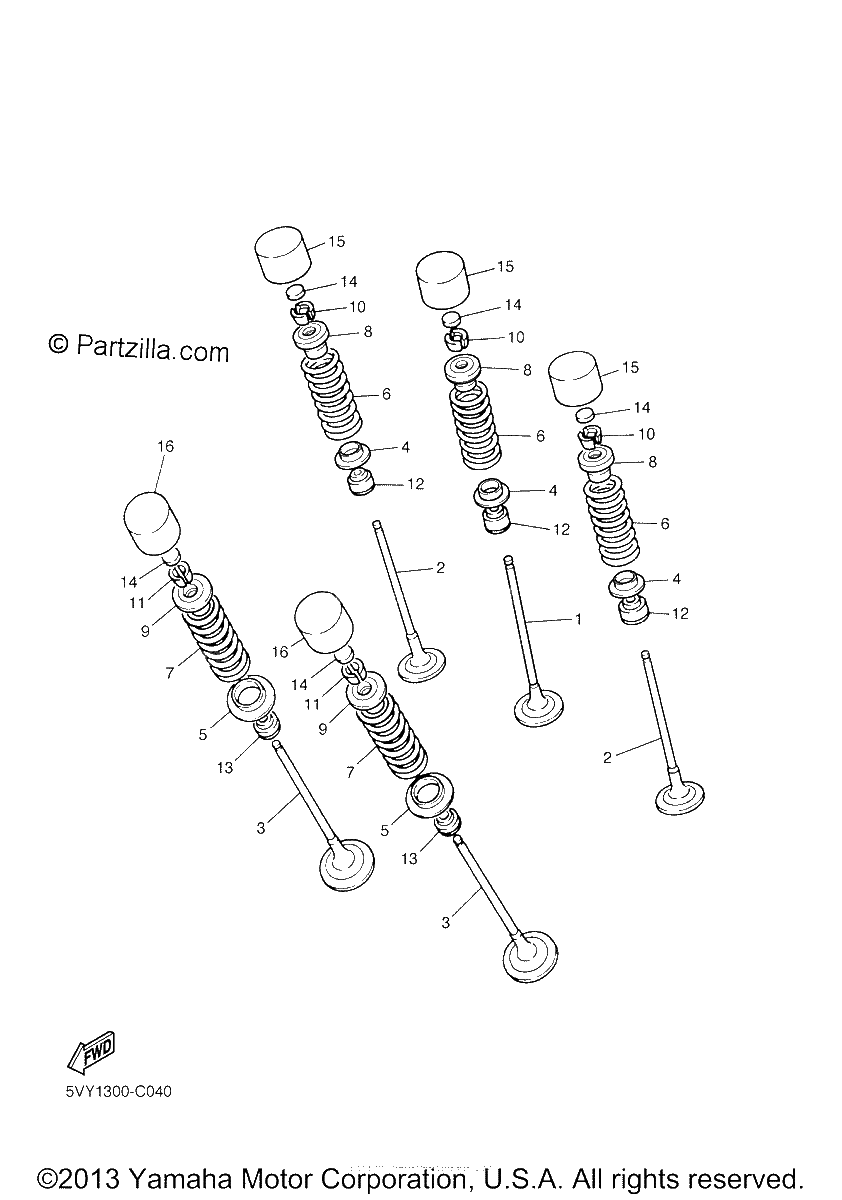

Diagrama de VALVE

Repuestos

#0
1HX-12169-E0-00
PAD, ADJUSTING 2 (2.15) | UR
$14.59¢7 294
1
#0
1HX-12168-Y1-00
PAD, ADJUSTING 2 (1.85) | UR
$23.26¢11 631
1
#0
1HX-12169-T0-00
PAD, ADJUSTING 2 (2.40) | UR
$20.99¢10 494
1
#0
1HX-12169-N0-00
PAD, ADJUSTING 2 (2.35) | UR
$16.95¢8 475
1
#0
1HX-12169-L0-00
PAD, ADJUSTING 2 (2.30) | UR
$19.55¢9 775
1
#0
1HX-12169-J0-00
PAD, ADJUSTING 2 (2.25) | UR
$12.90¢6 450
1
#0
1HX-12169-G0-00
PAD, ADJUSTING 2 (2.20) | UR
$13.61¢6 806
1
#0
3FV-12153-09-00
LIFTER,VALVE
$83.94¢41 969
1
#0
1HX-12169-90-00
PAD, ADJUSTING 2 (2.10) | UR
$14.78¢7 388
1
#0
1HX-12169-70-00
PAD, ADJUSTING 2 (2.05) | UR
$24.55¢12 275
1
#0
1HX-12169-50-00
PAD, ADJUSTING 2 (2.00) | UR
$23.41¢11 706
1
#0
1HX-12169-31-00
PAD, ADJUSTING 2 (1.95) | UR
$24.57¢12 288
1
#0
1HX-12169-11-00
PAD, ADJUSTING 2 (1.90) | UR
$57.16¢28 581
1
#0
1HX-12168-W1-00
PAD, ADJUSTING 2 (1.80) | UR
$20.80¢10 400
1
#0
1HX-12168-U1-00
PAD, ADJUSTING 2 (1.75) | UR
$19.96¢9 981
1
#0
1HX-12168-R1-00
PAD, ADJUSTING 2 (1.70) | UR
$23.17¢11 587
1
#0
1HX-12168-M1-00
PAD, ADJUSTING 2 (1.65) | UR
$30.80¢15 400
1
#0
3LN-12153-09-00
LIFTER, VALVE (O/S) | UR GREEN
$44.68¢22 338
1
#0
1HX-12168-H1-00
PAD, ADJUSTING 2 (1.55) | UR
$14.31¢7 156
1
#0
1HX-12168-F0-00
PAD, ADJUSTING 2 (1.50) | UR
$21.74¢10 869
1
#0
1HX-12168-A0-00
PAD, ADJUSTING 2 (1.45) | UR
$15.80¢7 900
1
#0
1HX-12168-80-00
PAD, ADJUSTING 2 (1.40) | UR
$22.03¢11 013
1
#0
1HX-12168-60-00
PAD, ADJUSTING 2 (1.35) | UR
$14.59¢7 294
1
#0
1HX-12168-40-00
PAD, ADJUSTING 2 (1.30) | UR
$15.18¢7 588
1
#0
1HX-12168-20-00
PAD, ADJUSTING 2 (1.25) | UR
$13.73¢6 863
1
#0
1HX-12168-00-00
PAD, ADJUSTING 2 (1.20) | UR
$22.03¢11 013
1
#1
2D1-12111-00-00
VALVE, INTAKE
$47.27¢23 638
1
#2
2D1-12112-00-00
VALVE, INTAKE 2
$42.14¢21 069
1
#3
5VY-12121-00-00
VALVE, EXHAUST
$39.71¢19 856
1
#4
5NL-12116-00-00
SEAT, VALVE SPRING
$7.34¢3 669
1
#5
3GM-12126-00-00
SEAT, VALVE SPRING 2
$4.24¢2 119
1
#6
2D1-12113-00-00
SPRING, VALVE INNER
$11.04¢5 519
1
#7
2D1-12114-00-00
SPRING, VALVE OUTER
$10.00¢5 000
1
#8
1HX-12117-00-00
RETAINER, VALVE SPRING
$18.90¢9 450
1
#9
1WG-12117-00-00
RETAINER, VALVE SPRING
$18.90¢9 450
1
#10
1HX-12118-00-00
LOCK, VALVE SPRING RETAINER
$7.60¢3 800
1
#11
1WG-12118-00-00
LOCK, VALVE SPRING RETAINER
$8.70¢4 350
1
#12
4TV-12119-00-00
SEAL, VALVE STEM
$13.65¢6 825
1
#13
4SV-12119-00-00
SEAL, VALVE STEM (replaces 1P6-E2119-00-00)
$23.65¢11 825
1
#14
1HX-12168-K1-00
PAD, ADJUSTING 2 (1.60) | UR
$23.17¢11 587
1
#15
3LN-12153-10-00
LIFTER, VALVE | YELLOW
$89.36¢44 681
1
#16
3FV-12153-19-00
LIFTER, VALVE (replaces 3FV-12153-10-00)
$82.49¢41 244
1
