CRANKCASE COVER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

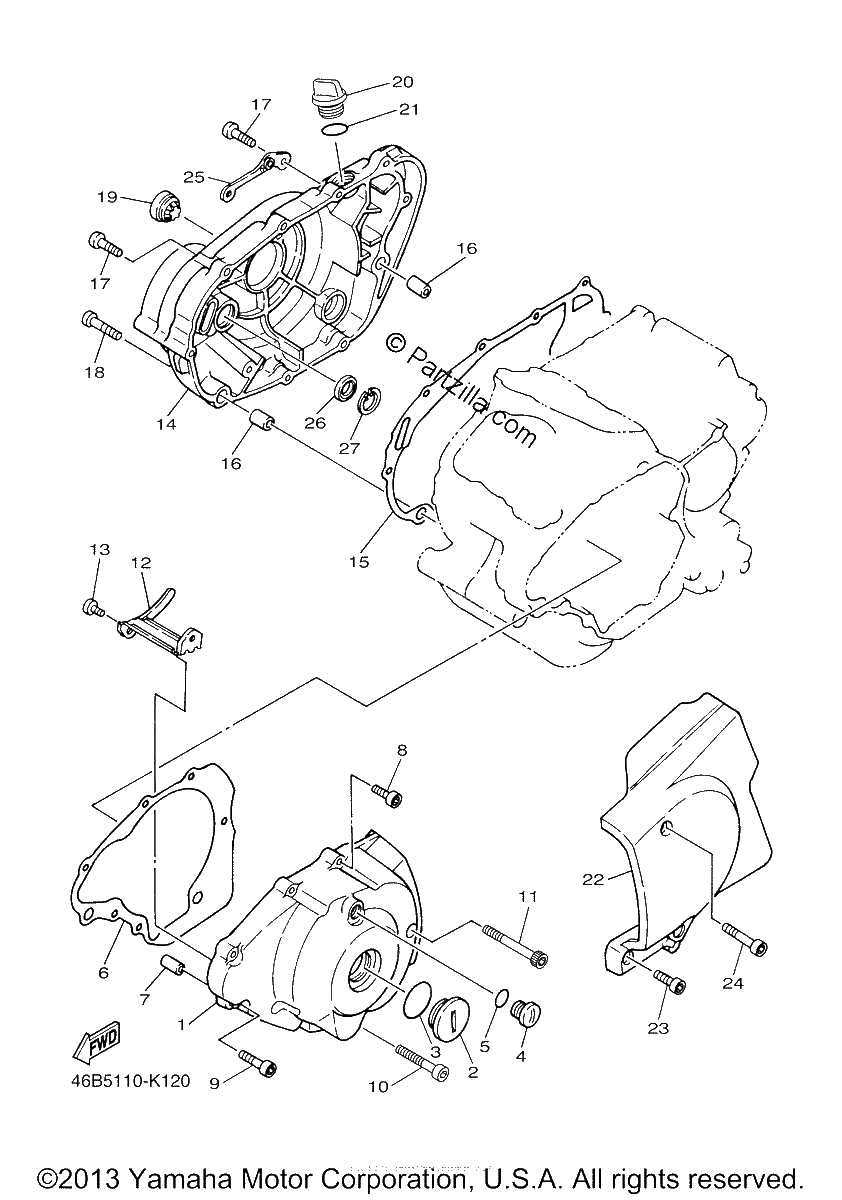

Diagrama de CRANKCASE COVER 1

Repuestos

#1
2UJ-15411-01-00
COVER, CRANKCASE 1
$327.56¢163 781
1
#2
90340-32116-00
PLUG, STRAIGHT SCREW
$19.36¢9 681
1
#3
93210-32172-00
O-Ring
$6.88¢3 438
1
#4
90340-14068-00
PLUG, STRAIGHT SCREW
$18.74¢9 369
1
#5
93210-14369-00
O-Ring
$6.91¢3 456
1
#6
4RF-15451-01-00
GASKET, CRANKCASE COVER 1
$16.00¢8 000
1
#7
99530-12016-00
PIN, DOWEL
$4.91¢2 456
1
#8
91314-06025-00
BOLT, HEXAGON SOCKET HEAD
$7.94¢3 969
1
#9
91314-06035-00
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
1
#10
91314-06035-00
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
1
#11
91314-06070-00
BOLT, HEXAGON SOCKET HEAD
$7.94¢3 969
1
#12
90465-06322-00
CLAMP
$12.05¢6 025
1
#13
91317-06010-00
BOLT (4MY) (replaces 90110-06065-00)
$8.24¢4 119
1
#14
2UJ-15421-00-00
COVER, CRANKCASE 2
$250.17¢125 087
1
#15
4RF-15461-01-00
GASKET, CRANKCASE COVER 2
$24.06¢12 031
1
#16
99530-12016-00
PIN, DOWEL
$4.91¢2 456
1
#17
91314-06025-00
BOLT, HEXAGON SOCKET HEAD
$7.94¢3 969
1
#18
91314-06035-00
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
1
#19
3Y1-15361-00-00
GAUGE,LEVEL
$30.38¢15 188
1
#20
3Y1-15363-10-00
PLUG, OIL
$20.35¢10 175
1
#21
93210-19123-00
O-Ring
$8.24¢4 119
1
#22
2UJ-15431-02-00
COVER, CRANKCASE 3
$125.80¢62 900
1
#23
91314-06025-00
BOLT, HEXAGON SOCKET HEAD
$7.94¢3 969
1
#24
91314-06050-00
BOLT, HEXAGON SOCKET HEAD
$7.34¢3 669
1
#25
2UJ-15441-00-00
HOLDER, CLUTCH CABLE
$16.36¢8 181
1
#26
93101-14089-00
OIL SEAL
$12.52¢6 262
1
#27
99009-25500-00
CIRCLIP
$6.67¢3 338
1
