INTAKE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

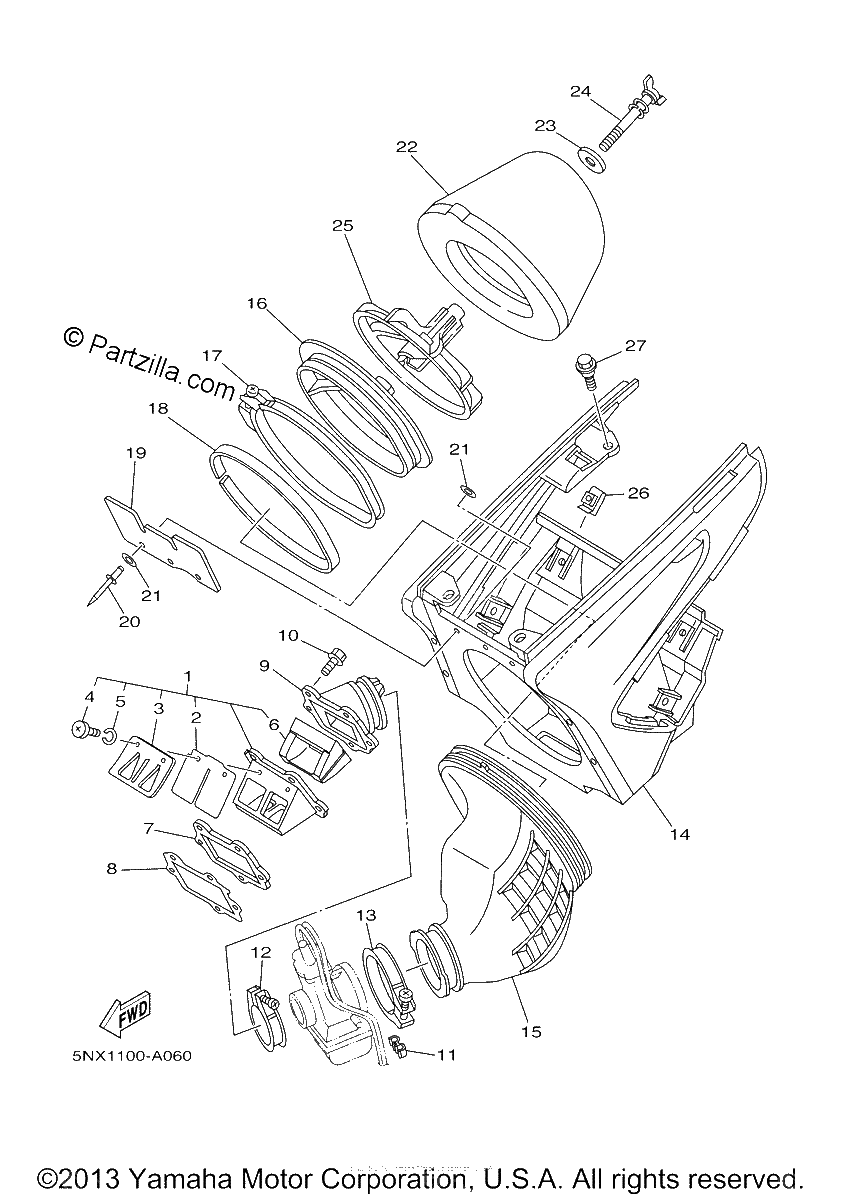

Diagrama de INTAKE

Repuestos

#1
5NX-13610-10-00
REED VALVE ASSY
$316.76¢158 378
1
#2
5NX-13613-00-00
REED, VALVE
$92.89¢46 443
1
#3
4XL-13616-10-00
STOPPER, REED VALVE
$20.86¢10 431
1
#4
98580-03008-00
SCREW, PAN HEAD
$2.51¢1 254
1
#5
92990-03100-00
WASHER, SPRING
$6.75¢3 375
1
#6
4XL-13625-00-00
SPACER, REED VALVE
$78.30¢39 152
1
#7
5NX-13624-00-00
PLATE,REED VALVE
$53.06¢26 531
1
#8
5XF-13622-00-00
GASKET, VALVE SEAT
$5.21¢2 605
1
#9
5NX-13565-00-00
JOINT, CARBURETOR
$127.11¢63 555
1
#10
91317-06025-00
BOLT
$2.24¢1 121
1
#11
90464-06214-00
CLAMP
$3.27¢1 633
1
#12
90450-51001-00
HOSE CLAMP ASSY
$15.44¢7 722
1
#13
90450-70002-00
HOSE CLAMP ASSY
$19.86¢9 930
1
#14
5NY-14401-01-00
AIR CLEANER CASE ASSY
$162.86¢81 432
1
#15
5NX-14453-00-00
JOINT, AIR CLEANER 1
$76.79¢38 393
1
#16
5NY-14459-00-00
HOLDER, GUIDE
$35.35¢17 675
1
#17
5NY-14455-20-00
BAND
$38.34¢19 171
1
#18
5NY-14442-00-00
SPACER
$22.38¢11 189
1
#19
5NY-14417-00-00
COVER 1
$15.08¢7 538
1
#20
90267-32070-00
RIVET, BLIND
$2.44¢1 219
1
#21
90201-03313-00
WASHER, PLATE
$7.01¢3 507
1
#22
4XM-14451-00-00
ELEMENT, AIR CLEANER
$41.05¢20 528
1
#23
90209-06096-00
WASHER
$7.19¢3 594
1
#24
90122-06005-00
BOLT, WING
$7.53¢3 766
1
#25
3JD-14458-01-00
GUIDE
$69.56¢34 782
1
#26
90183-06023-00
NUT,SPRING
$8.14¢4 071
1
#27
90109-06245-00
BOLT
$5.20¢2 599
1
