INTAKE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

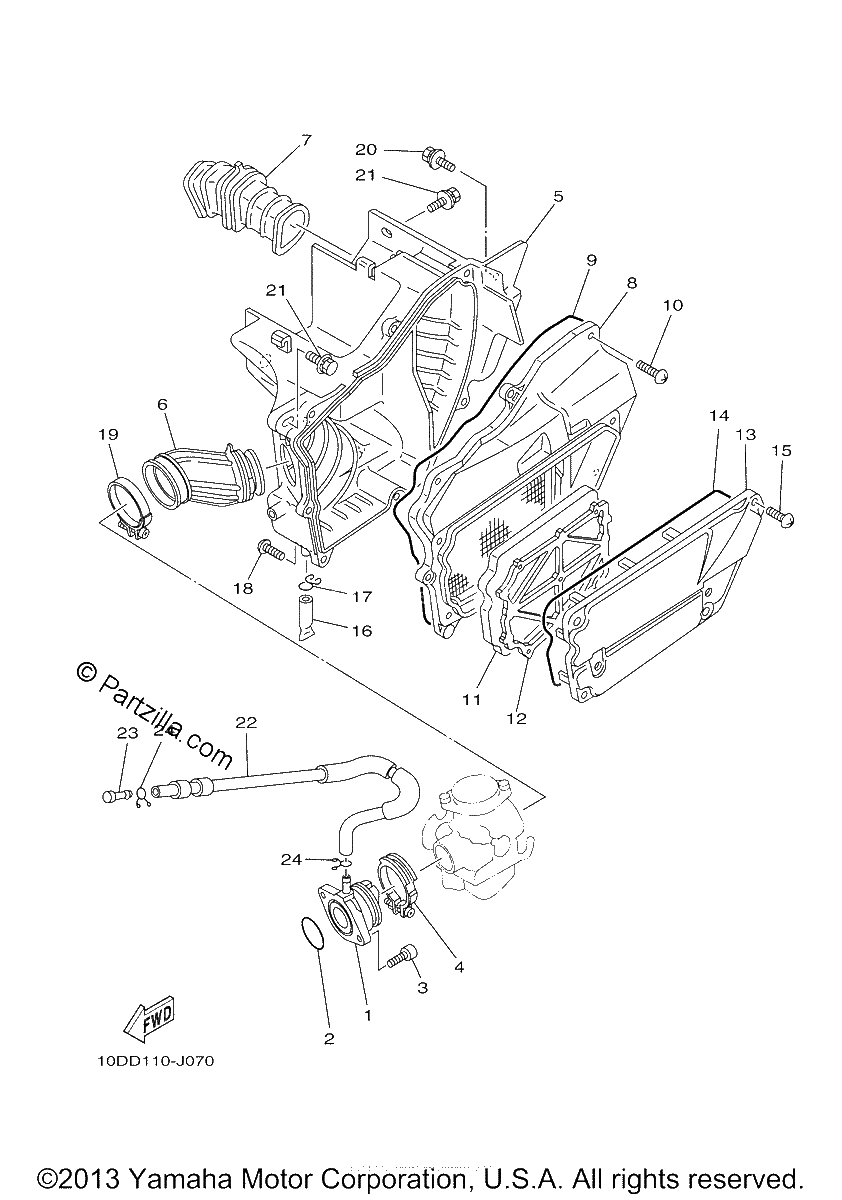

Diagrama de INTAKE

Repuestos

#1
5LB-13586-02-00
JOINT, CARBURETOR 1
$81.30¢40 652
1
#2
93210-35537-00
O-RING
$12.82¢6 411
1
#3
91317-06020-00
BOLT (4FL)
$2.39¢1 196
1
#4
90450-44046-00
HOSE CLAMP ASSY
$13.91¢6 958
1
#5
2JX-14411-02-00
CASE, AIR CLEANER 1
$46.06¢23 029
1
#6
5LB-14453-10-00
JOINT, AIR CLEANER 1
$28.37¢14 185
1
#7
2JL-14437-00-00
DUCT
$102.80¢51 399
1
#8
2JX-14412-00-00
CAP, CLEANER CASE 1
$158.32¢79 160
1
#9
1VJ-14462-00-00
SEAL (replaces 5XT-14462-00-00)
$17.62¢8 809
1
#10
97707-50620-00
SCREW, TRUSS (replaces 97707-50520-00)
$7.07¢3 536
1
#11
2JX-14451-00-00
ELEMENT, AIR CLEANER
$9.12¢4 560
1
#12
2JX-14458-00-00
GUIDE
$33.92¢16 963
1
#13
2JX-14422-00-00
CAP, CLEANER CASE 2
$80.04¢40 020
1
#14
1VJ-14462-00-00
SEAL (replaces 5XT-14462-00-00)
$17.62¢8 809
1
#15
90154-05005-00
SCREW, BINDING
$4.28¢2 139
1
#16
34X-1443E-00-00
PIPE, DRAIN
$7.37¢3 686
1
#17
90467-11106-00
Clip
$2.99¢1 495
1
#18
97780-50125-00
SCREW, TAPPING
$2.23¢1 116
1
#19
90460-51059-00
CLAMP, HOSE
$16.09¢8 044
1
#20
90119-06152-00
BOLT, WITH WASHER
$3.00¢1 501
1
#21
90119-06063-00
BOLT, WITH WASHER
$6.88¢3 439
1
#22
5LB-13584-00-00
PIPE, INTAKE MANIFOLD
$33.82¢16 911
1
#23
90338-08007-00
PLUG
$7.96¢3 979
1
#24
90467-100A1-00
CLIP | FOR CALIFORNIA
$6.99¢3 496
1
