FRONT MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

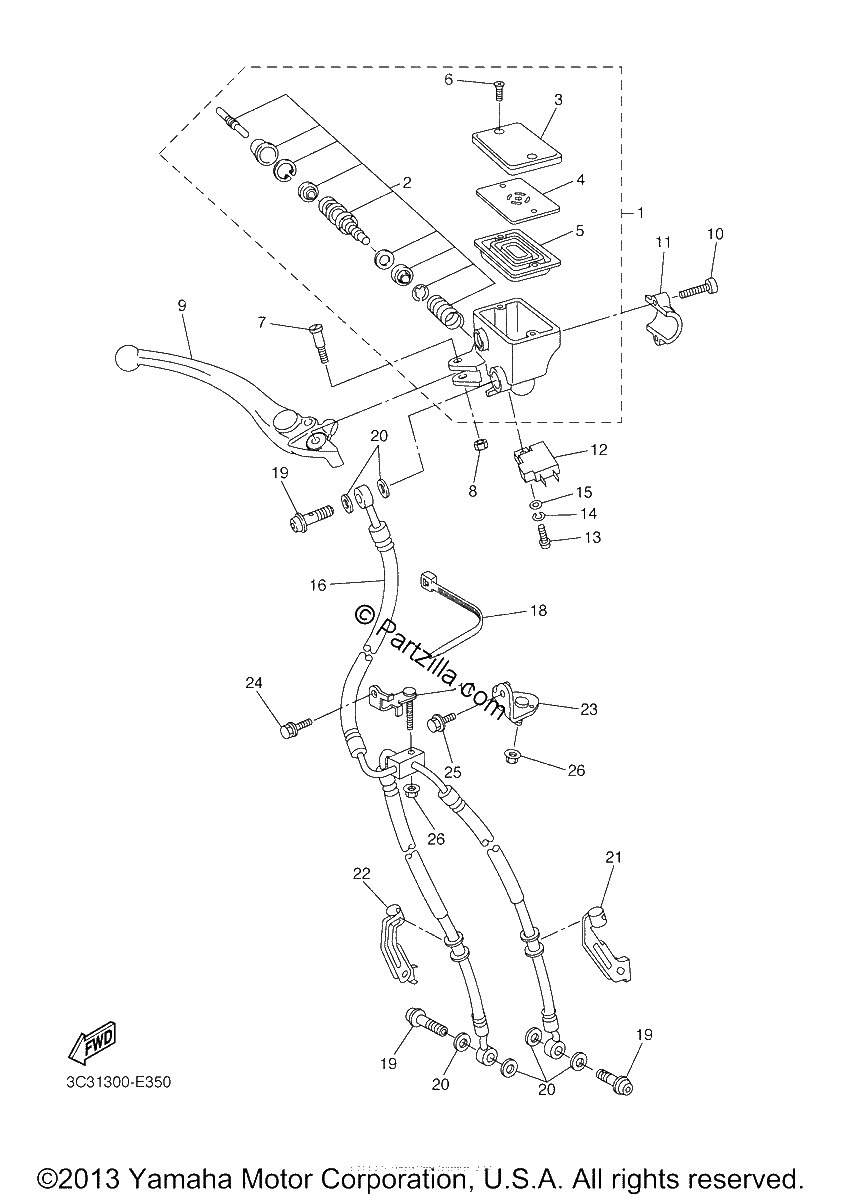

Diagrama de FRONT MASTER CYLINDER

Repuestos

#1
3C3-W2587-00-00
MASTER CYLINDER SUB ASSY
$246.83¢123 413
1
#2
2D1-25807-00-00
CYLINDER KIT, MASTER
$74.63¢37 313
1
#3
5VS-25852-00-00
CAP, RESERVOIR
$26.44¢13 219
1
#4
5VS-25855-00-00
BUSH, DIAPHRAGM
$17.01¢8 506
1
#5
20S-25854-00-00
DIAPHRAGM, RESERVOIR
$26.89¢13 444
1
#6
5VS-2589H-00-00
SCREW
$4.04¢2 019
1
#7
5VS-2589F-00-00
BOLT, LEVER
$14.65¢7 325
1
#8
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.86¢1 431
1
#9
5VS-83922-00-00
LEVER 2
$87.94¢43 969
1
#10
5VS-26332-00-00
BOLT
$4.68¢2 338
1
#11
5VS-25867-00-00
BRACKET, MASTER CYLINDER
$37.81¢18 906
1
#12
4HM-83980-00-00
FRONT STOP SWITCH ASSY
$43.72¢21 862
1
#13
98502-04012-00
SCREW, PAN HEAD
No Disponible
1
#14
92902-04100-00
WASHER, SPRING
$0.74¢369
1
#15
92990-04600-00
WASHER, PLATE
$1.20¢600
1
#16
3C3-25872-01-00
HOSE, BRAKE 1
$195.96¢97 981
1
#17
2D1-23857-00-00
HOLDER
$12.90¢6 450
1
#18
3MA-82591-00-00
BAND
$7.55¢3 775
1
#19
90401-10172-00
BOLT, UNION
$4.41¢2 206
1
#20
90430-10005-00
GASKET
$8.39¢4 194
1
#21
2D1-25875-00-00
HOLDER, BRAKE HOSE 1
$11.19¢5 594
1
#22
2D1-25876-00-00
HOLDER, BRAKE HOSE 2
$13.54¢6 769
1
#23
3C3-23378-00-00
BRACKET, HORN
$16.44¢8 219
1
#24
95817-06012-00
BOLT, FLANGE (replaces 95827-06012-00)
$1.79¢894
1
#25
95817-06012-00
BOLT, FLANGE (replaces 95827-06012-00)
$1.79¢894
1
#26
95702-06500-00
NUT, FLANGE
$2.44¢1 219
1
