FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

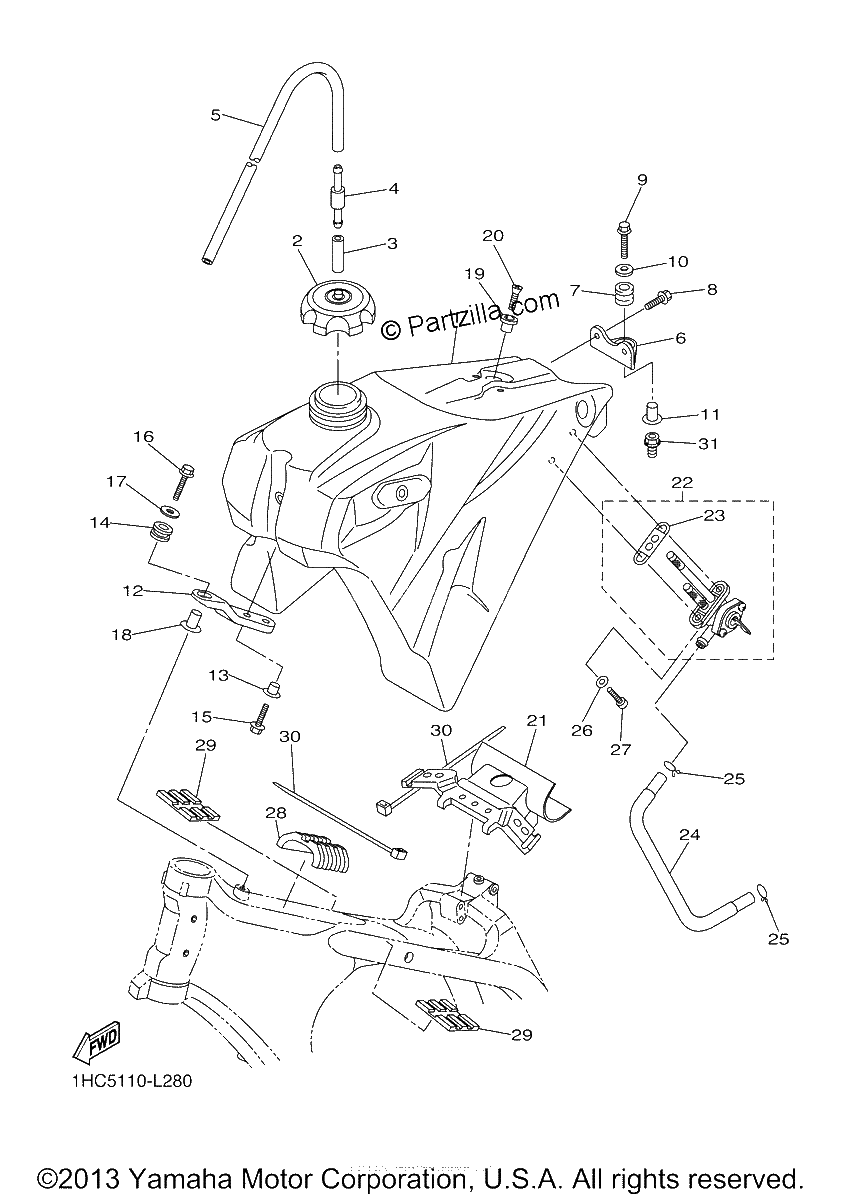

Diagrama de FUEL TANK

Repuestos

#1
5TJ-24110-J0-00
FUEL TANK COMP.
No Disponible
1
#2
5NY-24610-10-00
CAP ASSY
$65.79¢32 894
1
#3
90445-09027-00
HOSE (L30)
$11.73¢5 863
1
#4
3XJ-24380-00-00
PIPE JOINT ASSY
$37.21¢18 606
1
#5
90445-092K1-00
HOSE (L420)
$13.09¢6 544
1
#6
5XE-24144-00-00
HOLDER, DAMPER
$23.73¢11 863
1
#7
90480-18549-00
Grommet
$10.50¢5 250
1
#8
90105-06107-00
BOLT, FLANGE
$7.34¢3 669
1
#9
90105-06111-00
Bolt, Flange
$7.34¢3 669
1
#10
90201-06570-00
WASHER, PLATE
$8.45¢4 225
1
#11
3JD-24186-00-00
WASHER,SPECIAL (replaces 1B2-F4186-00-00)
$13.14¢6 569
1
#12
5UM-2419A-E0-00
HOLDER
$23.56¢11 781
1
#13
90387-06090-00
COLLAR
$7.56¢3 781
1
#14
5XC-24339-90-00
GROMMET
$8.03¢4 013
1
#15
90105-06107-00
BOLT, FLANGE
$7.34¢3 669
1
#16
90105-06111-00
Bolt, Flange
$7.34¢3 669
1
#17
90201-06570-00
WASHER, PLATE
$8.45¢4 225
1
#18
90387-06065-00
COLLAR
$11.39¢5 694
1
#19
4EW-2412F-00-00
BRACKET,SEAT (replaces 1B2-F412F-00-00)
$15.13¢7 563
1
#20
98702-06025-00
Screw, Flat Head
$7.34¢3 669
1
#21
5UM-24181-E0-00
DAMPER, LOCATING 1
$68.79¢34 394
1
#22
5UM-24500-F0-00
FUEL COCK ASSY 1
$102.69¢51 344
1
#23
1P6-24512-10-00
O-Ring
$17.31¢8 656
1
#24
5UM-24311-J0-00
PIPE, FUEL 1
$69.63¢34 813
1
#25
90467-100A1-00
CLIP | FOR CALIFORNIA
$7.60¢3 800
1
#26
90202-05187-00
WASHER, PLATE
$1.57¢788
1
#27
90149-06108-00
SCREW
$1.14¢569
1
#28
5XC-24182-90-00
DAMPER, LOCATING 2
$8.64¢4 319
1
#29
5XC-24183-90-00
DAMPER, LOCATING 3
$8.68¢4 338
1
#30
90464-15152-00
CLAMP
$5.19¢2 594
1
#31
1C3-21244-20-00
NUT
$17.46¢8 731
1
