REAR SUSPENSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

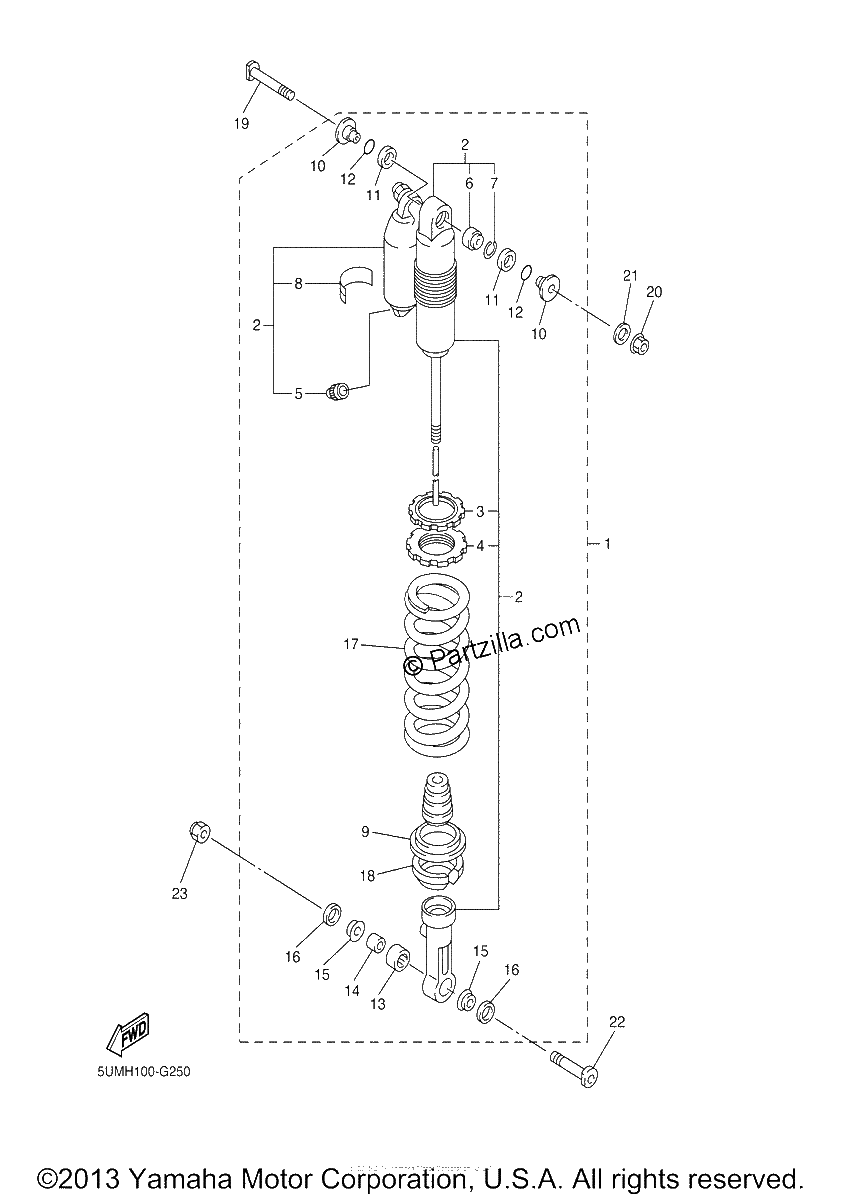

Diagrama de REAR SUSPENSION

Repuestos

#1
5UM-22210-E1-00
SHOCK ABSORBER ASSY, REAR
$1416.24¢708 119
1
#2
5UM-22201-E0-00
DAMPER SUB ASSY
$1498.74¢749 369
1
#3
3SP-22234-00-00
GUIDE,SPRING 3
$50.60¢25 300
1
#4
3SP-22213-00-00
SEAT, SPRING UPPER
$51.65¢25 825
1
#5
509-23184-L0-00
CAP,AIR VALVE
$7.97¢3 988
1
#6
4JX-22226-00-00
BUSH,RR SHK ASY
$58.45¢29 225
1
#7
5DH-23183-00-00
Circlip
$5.88¢2 938
1
#8
4AA-22259-80-00
LABEL, WARNING
$14.81¢7 406
1
#9
5MV-22224-00-00
GUIDE, SPRING 2
$27.21¢13 606
1
#10
1C3-22253-50-00
COLLAR, DISTANCE
$52.18¢26 088
1
#11
3JE-22475-00-00
SEAL,DUST LOW.
$12.60¢6 300
1
#12
4EW-22474-00-00
SEAL, RING
$7.08¢3 538
1
#13
5UN-22176-00-00
BEARING
$33.22¢16 612
1
#14
5MV-22184-00-00
Bush
$25.53¢12 763
1
#15
5MV-22253-00-00
COLLAR, DISTANCE | INCL. IN SHOCK BEARING KIT
$17.96¢8 981
1
#16
5NY-22475-00-00
SEAL, dust
$13.27¢6 637
1
#17
5UN-22212-50-00
SPRING (K=52N/MM) | AP
$483.98¢241 988
1
#18
5XE-22214-00-00
GUIDE, SPRING 1
$72.95¢36 475
1
#19
5XE-22242-00-00
BOLT 2
$6.26¢3 131
1
#20
95602-10200-00
NUT, U FLANGE
$2.73¢1 363
1
#21
92990-10200-00
WASHER (replaces 92902-10200-00)
$3.41¢1 706
1
#22
5NY-22241-00-00
BOLT 1
$12.14¢6 069
1
#23
90185-10012-00
NUT, SELF-LOCKING
$3.55¢1 775
1
