SIDE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

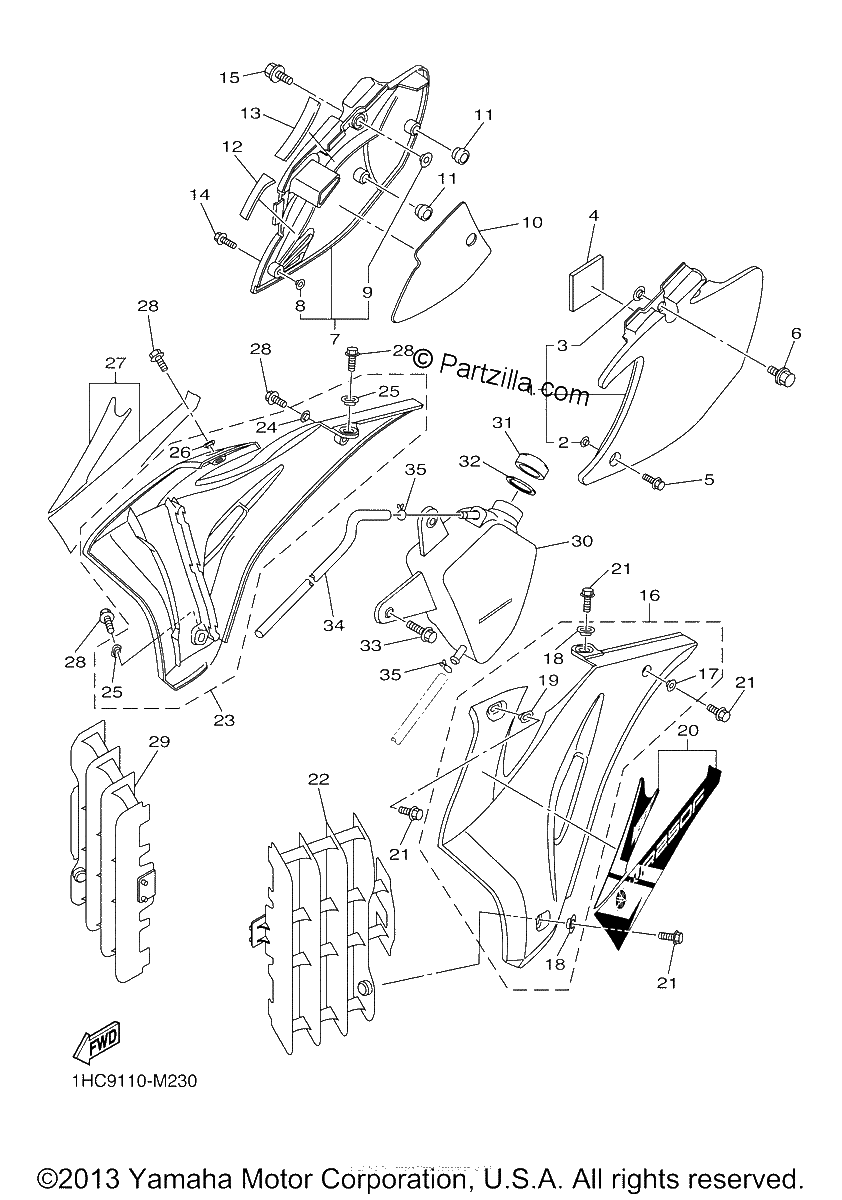

Diagrama de SIDE COVER

Repuestos

#1
5UM-21711-E0-00
COVER, SIDE 1
$35.71¢17 854
1
#2
90387-06009-00
COLLAR
$8.66¢4 330
1
#3
5BE-21749-00-00
Collar
$5.27¢2 633
1
#4
5UM-21717-E0-00
DAMPER
$5.40¢2 702
1
#5
90105-06103-00
BOLT, FLANGE
$4.62¢2 311
1
#6
90119-08095-00
BOLT, WITH WASHER
$6.83¢3 415
1
#7
5UM-21721-E0-00
COVER, SIDE 2
$37.47¢18 733
1
#8
90387-06009-00
COLLAR
$8.66¢4 330
1
#9
5BE-21749-00-00
Collar
$5.27¢2 633
1
#10
5UM-2174A-E0-00
INSULATOR, SIDE COVER
$24.46¢12 230
1
#11
5XC-21719-90-00
GROMMET
$6.95¢3 473
1
#12
5UM-2172S-E0-00
INSULATOR 3
$3.82¢1 909
1
#13
5UM-2173S-E0-00
INSULATOR 4
$7.50¢3 749
1
#14
90105-06103-00
BOLT, FLANGE
$4.62¢2 311
1
#15
90119-08095-00
BOLT, WITH WASHER
$6.83¢3 415
1
#16
5UM-21730-E0-00
SIDE COVER ASSY 3
$38.27¢19 136
1
#17
90387-06009-00
COLLAR
$8.66¢4 330
1
#18
5TA-21749-00-00
Collar
$10.57¢5 284
1
#19
5XC-21749-90-00
COLLAR
$11.24¢5 618
1
#20
1HC-2173L-00-00
GRAPHIC SET 1
$59.47¢29 733
1
#21
90105-06064-00
Bolt, Flange
$2.92¢1 461
1
#22
2S2-2172A-70-00
PANEL 1
$39.15¢19 573
1
#23
5UM-21740-E0-00
SIDE COVER ASSY 4
No Disponible
1
#24
90387-06009-00
COLLAR
$8.66¢4 330
1
#25
5TA-21749-00-00
Collar
$10.57¢5 284
1
#26
5XC-21749-90-00
COLLAR
$11.24¢5 618
1
#27
1HC-2174L-00-00
GRAPHIC SET 2
$55.17¢27 583
1
#28
90105-06064-00
Bolt, Flange
$2.92¢1 461
1
#29
2S2-2172A-80-00
PANEL 1
$39.61¢19 803
1
#30
5UM-21860-E0-00
TANK ASSY
$145.04¢72 519
1
#31
26H-21875-00-00
CAP
$33.05¢16 525
1
#32
26H-21874-00-00
GASKET
$7.15¢3 577
1
#33
90119-06146-00
BOLT, WITH WASHER
$3.92¢1 961
1
#34
5UM-1244J-E0-00
HOSE 6
$18.20¢9 102
1
#35
90467-090A2-00
Clip
$2.74¢1 368
1
