CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

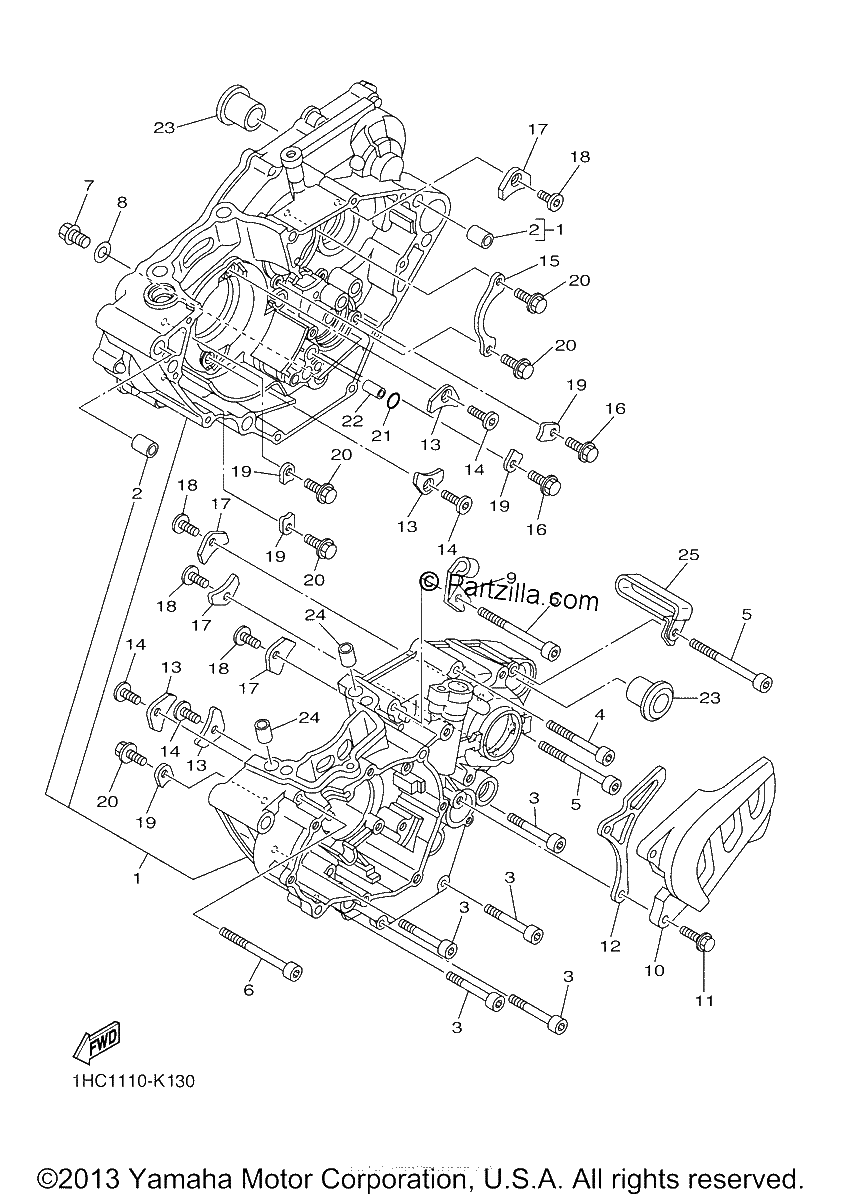

Diagrama de CRANKCASE

Repuestos

#1
5UM-15100-28-YX
CRANKCASE ASSY
$1222.05¢611 025
1
#2
93612-16254-00
PIN,DOWEL
$5.19¢2 594
1
#3
91312-06045-00
BOLT
$4.00¢2 000
1
#4
91312-06055-00
BOLT
$6.55¢3 275
1
#5
91312-06070-00
BOLT
$4.26¢2 131
1
#6
91311-06100-00
BOLT, SOCKET HEAD
No Disponible
1
#7
95022-10016-00
BOLT, FLANGE
$7.48¢3 738
1
#8
90430-10188-00
Gasket
$7.36¢3 681
1
#9
5NL-15441-01-00
HOLDER, CLUTCH CABLE
$19.23¢9 613
1
#10
5BE-15421-30-00
COVER, CRANKCASE 2
$24.57¢12 288
1
#11
90105-06189-00
Bolt, Flange
$7.34¢3 669
1
#12
5NL-17466-00-00
GUIDE, CHAIN
$20.41¢10 206
1
#13
5BE-15383-01-00
PLATE, BEARING COVER
$10.84¢5 419
1
#14
90151-06044-00
SCREW, COUNTERSUNK
$4.25¢2 125
1
#15
5NL-15388-00-00
PLATE, BEARING COVER
$7.97¢3 988
1
#16
95022-06012-00
BOLT, FLANGE
$3.57¢1 787
1
#17
4JT-15381-01-00
PLATE, BEARING COV
$12.54¢6 269
1
#18
90151-06052-00
SCREW, COUNTERSUNK (replaces 90149-06074-00)
$7.60¢3 800
1
#19
5DH-18562-00-00
PLATE, STOPPER 2
$8.03¢4 013
1
#20
95022-06012-00
BOLT, FLANGE
$3.57¢1 787
1
#21
93210-10197-00
O-RING
$6.99¢3 494
1
#22
99530-10014-00
PIN, DOWEL
$2.71¢1 356
1
#23
90387-18007-00
COLLAR
$35.64¢17 819
1
#24
99530-10116-00
PIN, DOWEL
$4.00¢2 000
1
#25
90465-10013-00
CLAMP
$22.61¢11 306
1
