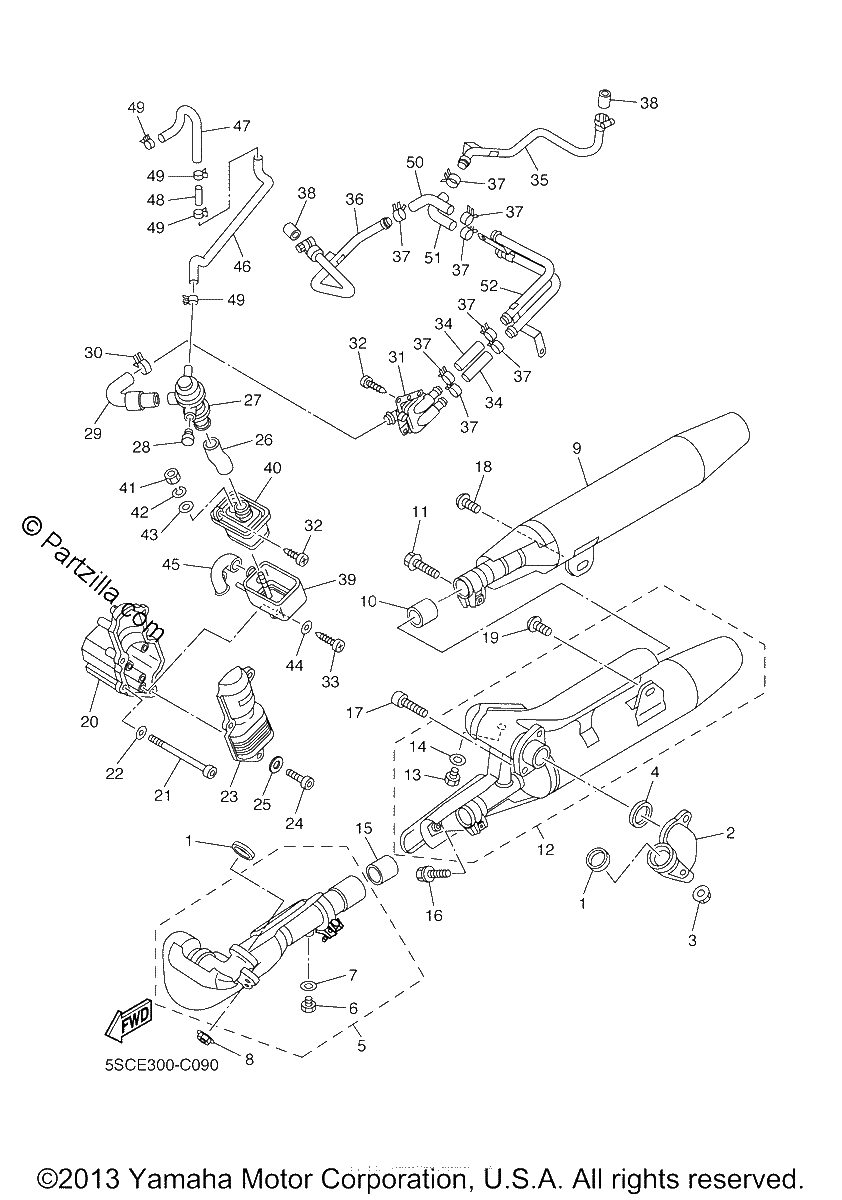

EXHAUST
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
GASKET, EXHAUST PIPE
$12.54¢6 269
#2
JOINT, EXHAUST 1
$142.17¢71 087
#3
NUT, SELF-LOCKING
$10.10¢5 050
#4
GASKET,EXST PIPE
$6.67¢3 338
#5
EXHAUST PIPE ASSY 2
$590.66¢295 331
#6
BOLT
$7.70¢3 850
#7
WASHER, PLATE
$3.40¢1 700
#8
NUT, SELF-LOCKING
$10.10¢5 050
#9
MUFFLER COMP. 1
$1042.49¢521 244
#10
GASKET, MUFFLER
$47.27¢23 638
#11
BOLT, FLANGE (SMALL HEAD)
$7.94¢3 969
#12
MUFFLER COMP. 2
$1382.49¢691 244
#13
BOLT
$7.70¢3 850
#14
WASHER, PLATE
$3.40¢1 700
#15
GASKET, MUFFLER
$47.27¢23 638
#16
BOLT, FLANGE (SMALL HEAD)
$7.94¢3 969
#17
BOLT, HEXAGON SOCKET HEAD
$2.94¢1 469
#18
BOLT, BUTTON HEAD
$7.34¢3 669
#19
BOLT, BUTTON HEAD
$7.63¢3 813
#20
COVER, AIR 1
$91.55¢45 775
#21
BOLT
$4.80¢2 400
#22
WASHER, PLATE (6TA)
$0.96¢481
#23
COVER 1
$134.60¢67 300
#24
BOLT (3JB) (replaces 91312-06020-00)
$2.44¢1 219
#25
WASHER
$7.35¢3 675
#26
HOSE, BEND 2
$26.48¢13 238
#27
AIR CUT VALVE ASSY
$241.85¢120 925
#28
PLUG
$3.14¢1 569
#29
HOSE, BEND 3
$16.36¢8 181
#30
CLIP
$3.50¢1 750
#31
REED VALVE ASSY
$240.44¢120 219
#32
SCREW, TAPPING
No Disponible
#33
SCREW, TAPPING
$7.94¢3 969
#34
HOSE, BEND 4
No Disponible
#35
PIPE 1
$102.10¢51 050
#36
PIPE 2
$103.52¢51 762
#37
CLIP
$3.25¢1 625
#38
GASKET, MUFFLER
$24.86¢12 431
#39
CASE, AIR CLEANER
$9.53¢4 763
#40
CAP, CASE
$52.09¢26 044
#41
NUT, U
$7.94¢3 969
#42
WASHER
$4.88¢2 438
#43
WASHER, PLATE
$3.01¢1 506
#44
WASHER, PLATE
$4.86¢2 431
#45
HOSE, BEND 5
$11.39¢5 694
#46
HOSE, VACUUM SENSING 1
$14.70¢7 350
#47
HOSE, VACUUM SENSING 2
$12.98¢6 488
#48
PIPE
$36.50¢18 250
#49
CLIP,SCISSOR
$8.45¢4 225
#50
HOSE, BEND 1
$20.91¢10 456
#51
HOSE, BEND 1
$117.17¢58 588
#52
PIPE 5
$128.81¢64 406
