STAND FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

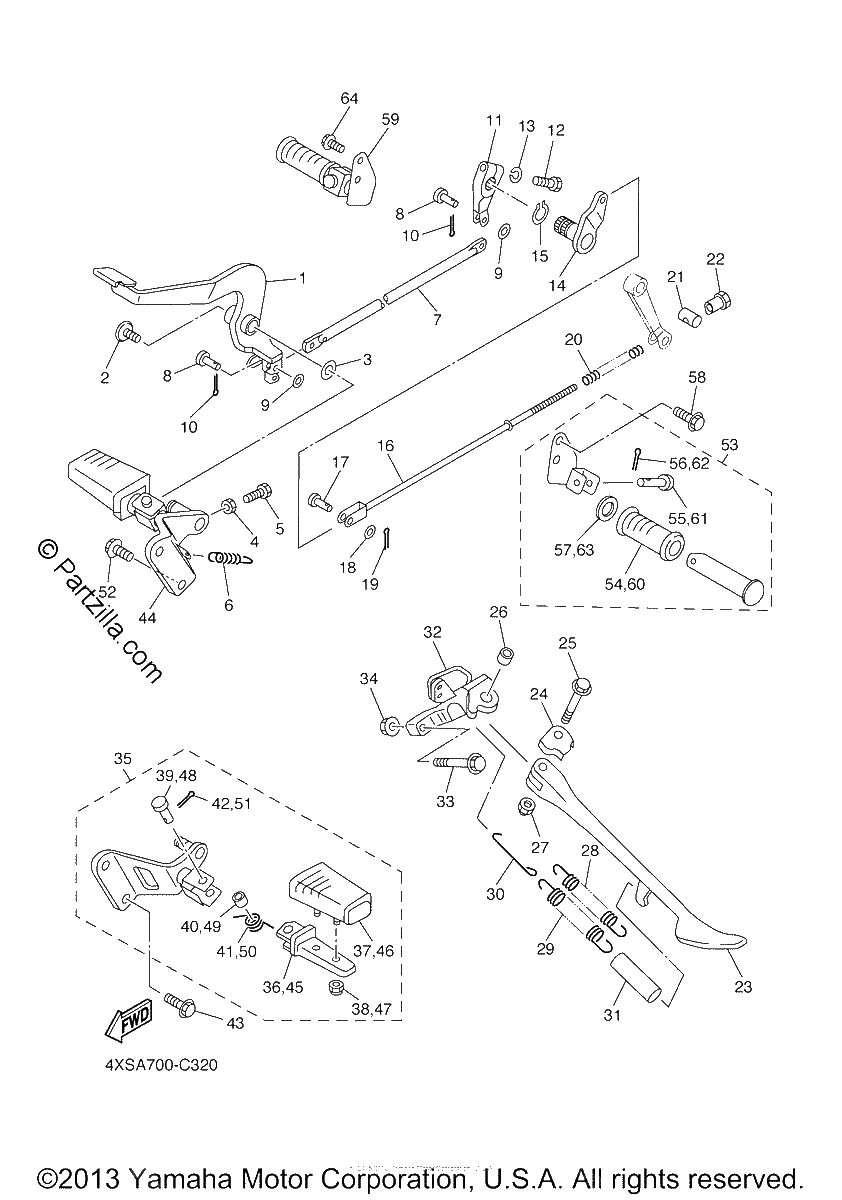

Diagrama de STAND FOOTREST

Repuestos

#1
5KP-27211-01-00
PEDAL, BRAKE
$183.63¢91 816
1
#2
90110-06119-00
BOLT, HEXAGON SOCKET
$5.47¢2 737
1
#3
90206-14086-00
WASHER, WAVE
$6.76¢3 381
1
#4
95317-06700-00
NUT(JN5)
$7.31¢3 657
1
#5
97017-06025-00
BOLT,HEXAGON (replaces 97007-06025-00)
$3.27¢1 633
1
#6
90506-20193-00
SPRING, TENSION
$13.21¢6 607
1
#7
5KP-27247-00-00
ROD 1
$60.81¢30 406
1
#8
90240-06108-00
PIN, CLEVIS
$7.23¢3 617
1
#9
90201-062P7-00
WASHER, PLATE
$4.47¢2 237
1
#10
91401-20012-00
PIN, COTTER
$2.02¢1 012
1
#11
4TR-27243-00-00
BOSS, BRAKE PEDAL
$47.67¢23 834
1
#12
90109-06468-00
BOLT
$6.52¢3 260
1
#13
92907-06100-00
WASHER, SPRING
$1.13¢564
1
#14
4TR-27212-00-00
SHAFT, BRAKE PEDAL
$31.90¢15 950
1
#15
99009-19400-00
CIRCLIP
$6.75¢3 375
1
#16
4TR-27231-00-00
ROD, BRAKE
$34.36¢17 181
1
#17
90240-06108-00
PIN, CLEVIS
$7.23¢3 617
1
#18
90201-062P7-00
WASHER, PLATE
$4.47¢2 237
1
#19
91401-20012-00
PIN, COTTER
$2.02¢1 012
1
#20
90501-10245-00
SPRING, COMPRESSION
$6.75¢3 375
1
#21
90249-12008-00
PIN
$6.75¢3 375
1
#22
90179-06411-00
NUT
$5.75¢2 875
1
#23
4KU-27311-13-00
STAND, SIDE
$207.99¢103 995
1
#24
5KP-27322-00-00
WASHER
$26.15¢13 075
1
#25
90105-10728-00
BOLT, WASHER BASED (replaces 90105-102A6-00)
$8.21¢4 105
1
#26
90387-1003G-00
COLLAR
$20.17¢10 085
1
#27
95607-10200-00
NUT,SELF-LOCKING
$3.65¢1 823
1
#28
90506-23490-00
SPRING, TENSION
$9.81¢4 905
1
#29
90506-29507-00
SPRING, TENSION
$14.11¢7 055
1
#30
5EL-27315-00-00
LINK, SIDE STAND
$8.31¢4 157
1
#31
90445-16641-00
HOSE (L60)
$6.69¢3 347
1
#32
5KP-27321-00-00
BRACKET, SIDE STAND
$296.50¢148 252
1
#33
90105-10727-00
BOLT, FLANGE
$5.47¢2 737
1
#34
95607-10200-00
NUT,SELF-LOCKING
$3.65¢1 823
1
#35
5KP-27410-01-00
FRONT FOOTREST ASSY (LEFT)
$164.28¢82 139
1
#36
1NH-27451-00-00
FOOTREST
$36.93¢18 463
1
#37
4VR-27413-00-00
COVER, FOOTREST
$39.00¢19 498
1
#38
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.63¢1 317
1
#39
91701-08038-00
PIN
$4.28¢2 139
1
#39
4TR-27430-10-00
REAR FOOTREST ASSY 1
$85.95¢42 976
1
#40
90387-087K5-00
COLLAR
$8.16¢4 082
1
#41
90508-18054-00
SPRING, TORSION
$5.90¢2 950
1
#42
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
1
#43
90105-102A3-00
BOLT, WASHER BASED
$7.64¢3 818
1
#44
5KP-27420-01-00
FRONT FOOTREST ASSY (RIGHT)
$162.86¢81 432
1
#45
1NH-27461-00-00
FOOTREST
$33.65¢16 825
1
#46
4VR-27413-00-00
COVER, FOOTREST
$39.00¢19 498
1
#47
95617-06100-00
NUT,U (replaces 95602-06100-00)
$2.63¢1 317
1
#48
91701-08038-00
PIN
$4.28¢2 139
1
#49
90387-087K5-00
COLLAR
$8.16¢4 082
1
#50
90508-18054-00
SPRING, TORSION
$5.90¢2 950
1
#51
91490-25020-00
PIN,COTTER (replaces 91401-25015-00)
$3.32¢1 662
1
#52
90105-102A3-00
BOLT, WASHER BASED
$7.64¢3 818
1
#54
120-27433-00-00
COVER, REAR FOOTREST
$8.26¢4 129
1
#55
91701-06032-00
PIN
$7.51¢3 755
1
#56
91490-20015-00
PIN. COTTER
$2.02¢1 012
1
#57
90201-20279-00
WASHER, PLATE
$7.58¢3 789
1
#58
90105-082A5-00
BOLT, FLANGE
$2.99¢1 495
1
#59
4TR-27440-10-00
REAR FOOTREST ASSY 2
$91.83¢45 914
1
#60
120-27433-00-00
COVER, REAR FOOTREST
$8.26¢4 129
1
#61
91701-06032-00
PIN
$7.51¢3 755
1
#62
91490-20015-00
PIN. COTTER
$2.02¢1 012
1
#63
90201-20279-00
WASHER, PLATE
$7.58¢3 789
1
#64
90105-082A5-00
BOLT, FLANGE
$2.99¢1 495
1
