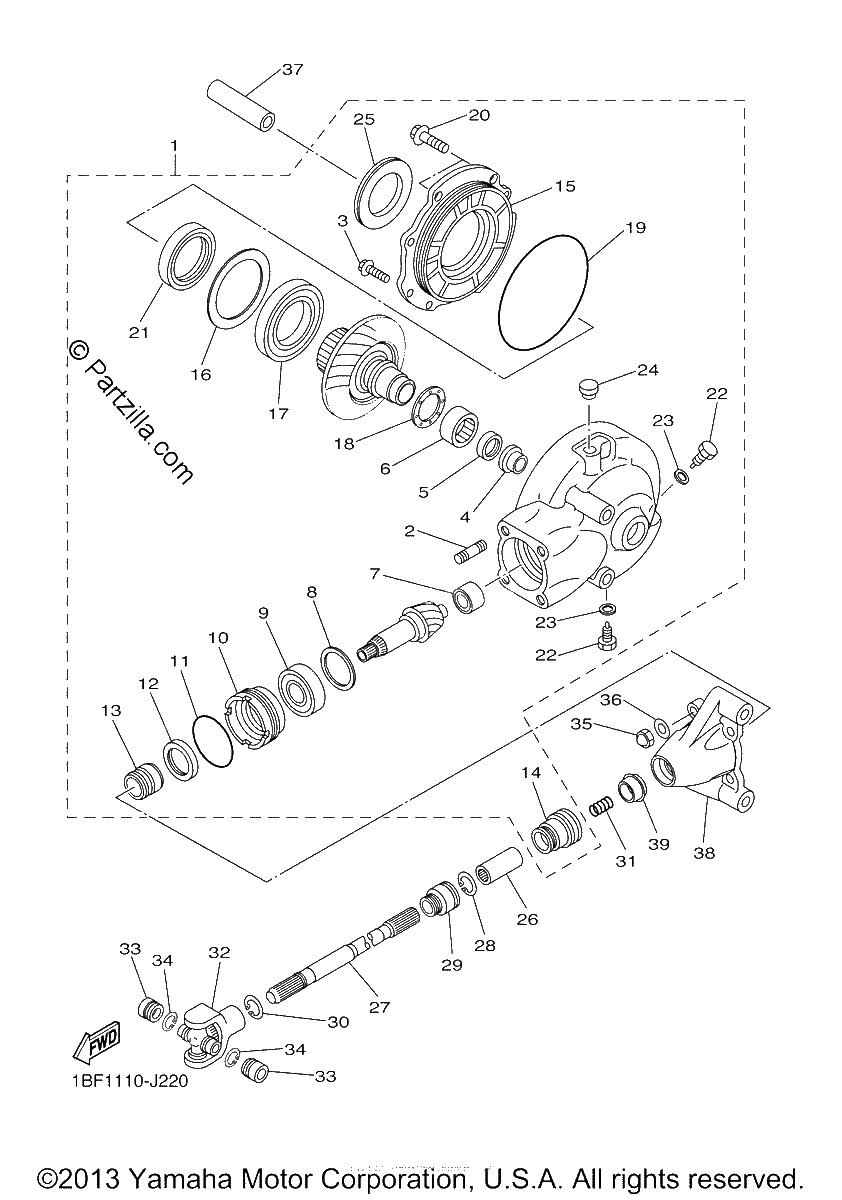

DRIVE SHAFT
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#0
SHIM, THRUST (0.30T) | UR
$4.81¢2 406
#0
SHIM, RING GEAR (0.40T) | UR
$4.47¢2 238
#0
SHIM, THRUST (1.8T) | UR
$10.96¢5 481
#0
SHIM, THRUST (1.4T) | UR
$11.07¢5 538
#0
SHIM, THRUST (1.2T) | UR
$10.85¢5 425
#0
SHIM, THRUST (1.6T) | UR
$11.00¢5 500
#0
SHIM, RING GEAR (0.25T) | UR
$4.47¢2 238
#0
SHIM, THRUST (0.50T) | UR
$4.51¢2 256
#1
REAR AXLE GEAR CASE ASSY
$1391.24¢695 619
#2
BOLT, STUD
$5.10¢2 550
#3
BOLT, WITH WASHER
$6.27¢3 137
#4
COLLAR, GUIDE
$28.15¢14 075
#5
OIL SEAL
$17.27¢8 638
#6
BEARING
$83.58¢41 788
#7
BEARING ASSY
$62.11¢31 056
#8
SHIM, THRUST (0.40T) | UR
$4.34¢2 169
#9
BEARING
$145.49¢72 744
#10
RETAINER, BEARING
$65.25¢32 625
#11
O-RING
$10.29¢5 144
#12
OIL SEAL
$18.43¢9 213
#13
COLLAR
$34.86¢17 431
#14
SEAL 1
$22.69¢11 344
#15
HOUSING, BEARING
$71.06¢35 531
#16
SHIM, RING GEAR (0.30T) | UR
$4.77¢2 387
#17
BEARING
$93.67¢46 838
#18
SHIM, THRUST (2.0T) | UR
$10.85¢5 425
#19
O-RING
$14.47¢7 238
#20
BOLT, FLANGE
$7.34¢3 669
#21
OIL SEAL
$17.68¢8 838
#22
PLUG, STRAIGHT SCREW
$3.15¢1 575
#23
GASKET
$3.23¢1 613
#24
BREATHER COMP.
$31.84¢15 919
#25
SEAL, HUB DUST
$17.68¢8 838
#26
COUPLING, GEAR
$54.39¢27 194
#27
SHAFT DRIVE ASSY
$237.10¢118 550
#28
CIRCLIP
$7.94¢3 969
#29
SEAL 2
$20.80¢10 400
#30
CIRCLIP,S-TYPE
$7.34¢3 669
#31
SPRING, COMPRESSION
$6.91¢3 456
#32
CROSS JOINT COMP.
$206.16¢103 081
#33
BEARING
$69.52¢34 762
#34
CIRCLIP
$6.25¢3 125
#35
NUT, CROWN
$7.81¢3 906
#36
WASHER, PLATE
$3.29¢1 644
#37
COLLAR
$15.04¢7 519
#38
COVER, HOUSING
$92.90¢46 450
#39
COVER, DUST
$22.63¢11 313
